| MOQ: | 1 |
| Standard Packaging: | nude packing |
| Delivery Period: | 15-30 working days |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 50 pcs/week |

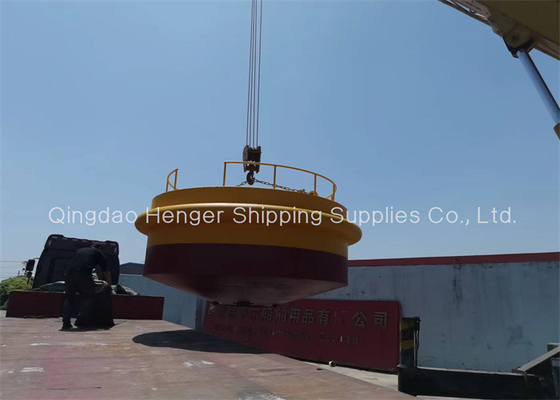

High Quality Mooring Buoy Customized Marine Steel Boat Buoys
Steel mooring buoys are engineered to meet the anchoring requirements of ships across various tonnages. Their application in anchorage operations brings remarkable convenience and flexibility—enabling activities like cargo lightering, ship maintenance, and repair work to be carried out directly at the berth. As such, they stand as a vital anchoring facility within port systems.
2.Steel Mooring Buoy Parameter Table
| Model | Net Buoyancy | D×H (m) | Suitable for Ship Tonnage (t) |
| HESMB 2.0 | 3 | 2.0×1.74 | <2000 |
| HESMB 2.6 | 6 | 2.6×2.27 | <5000 |
| HESMB 3.6 | 19 | 3.6×2.14 | <10000 |
| HESMB 5.0 | 28.5 | 5.0×3.4 | <12000 |
| HESMB 5.5 | 31.2 | 5.5×3.0 | <100000 |
| HESMB 6.0 | 34.2 | 6.0×3.2 | <150000 |
| HESMB 8.0 | 40.3 | 8.0×2.46 | <250000 |
3.Anchor Pendant Buoy
Anchor pendant buoys are available in a wide range of sizes, with choices of suitcase type, modular and non-modular type, custom-made and standard configurations. All are supplied with removable central steel work configured as per to customer’s requirements – typical handing crucifix/pad eye arrangement or a through haws e for use with anchor wire rather than chain.
4.Anchor Pendant Buoy Technical Parameters
|
Model |
Reserve Buoyancy (kg) |
Diameter (mm) |
Float Length (mm) |
Overall Length (mm) |
Weight (kg) |
|
HE-APB1000 |
1000 | 1350 | 1100 | 1900 | 300 |
|
HE-APB2000 |
2000 | 1500 | 1500 | 2600 | 500 |
|
HE-APB3000 |
3000 | 1850 | 1500 | 2600 | 600 |
|
HE-APB4000 |
4000 | 2000 | 1900 | 2900 | 850 |
|
HE-APB6000 |
6000 | 2500 | 2200 | 3250 | 1000 |
|
HE-APB8000 |
8000 | 2500 | 2200 | 3250 | 1250 |
|
HE-APB10000 |
10000 | 3000 | 2200 | 3500 | 1550 |
|
HE-APB20000 |
20000 | 3500 | 3000 | 4200 | 2400 |
*buoy sizes and buoyancy can be customized according to customer design.
You can contact me at any time if you need it. Thank you for reading.
|
|
