| MOQ: | 1 |
| Standard Packaging: | nude packing |
| Delivery Period: | 15-30 working days |
| Payment Method: | L/C, D/A, D/P, T/T |
| Supply Capacity: | 50 pcs/week |

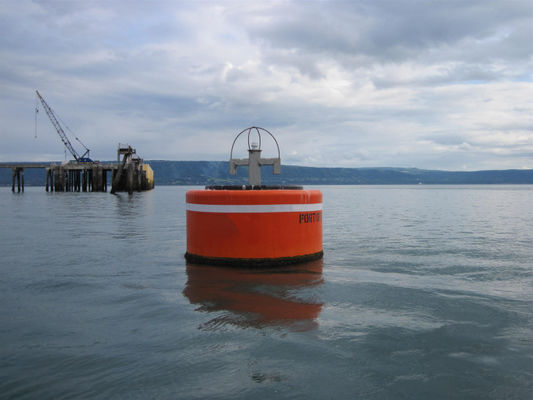

Steel Mooring Buoy
Steel mooring buoy is available for anchorage of ships of different tonnage. It is quite convenient and flexible to operate as using mooring buoy in anchorage.goods lightering works, maintenance & repair of ships can be operated on the berth. Therefore, the mooring buoy is an important anchoring facility of the port
Steel Mooring Buoy Technical Parameter
| Model | Net Buoyancy | D×H (m) | Suitable for Ship Tonnage (t) |
| HESMB 2.0 | 3 | 2.0×1.74 | <2000 |
| HESMB 2.6 | 6 | 2.6×2.27 | <5000 |
| HESMB 3.6 | 19 | 3.6×2.14 | <10000 |
| HESMB 5.0 | 28.5 | 5.0×3.4 | <12000 |
| HESMB 5.5 | 31.2 | 5.5×3.0 | <100000 |
| HESMB 6.0 | 34.2 | 6.0×3.2 | <150000 |
| HESMB 8.0 | 40.3 | 8.0×2.46 | <250000 |

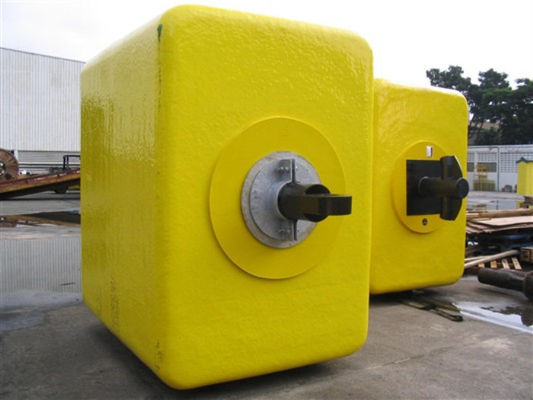

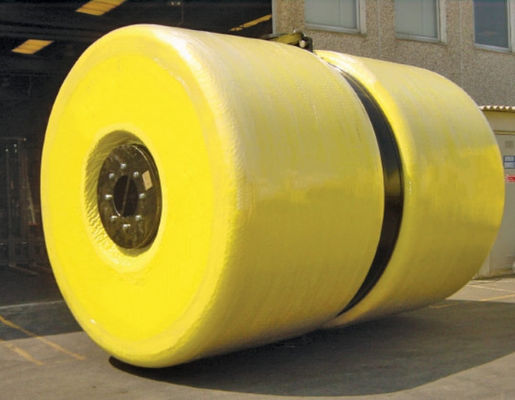

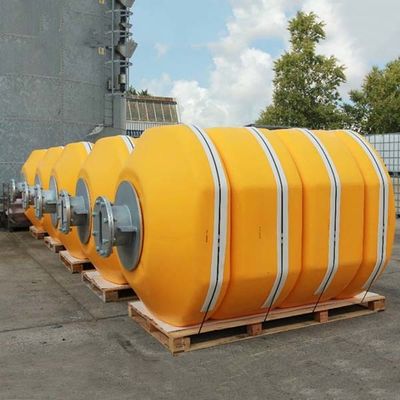

Anchor Pendant Buoy
Anchor pendant buoys are available in a wide range of sizes, with choices of suitcase type, modular and non-modular type, custom-made and standard configurations. All are supplied with removable central steel work configured as per to customer’s requirements – typical handing crucifix/pad eye arrangement or a through haws e for use with anchor wire rather than chain.
Anchor Pendant Buoy Technical Parameters
Model
| Reserve Buoyancy (kg) | Diameter (mm) | Float Length (mm) | Overall Length (mm) | Weight (kg) |
HE-APB1000
| 1000 | 1350 | 1100 | 1900 | 300 |
HE-APB2000
| 2000 | 1500 | 1500 | 2600 | 500 |
HE-APB3000
| 3000 | 1850 | 1500 | 2600 | 600 |
HE-APB4000
| 4000 | 2000 | 1900 | 2900 | 850 |
HE-APB6000
| 6000 | 2500 | 2200 | 3250 | 1000 |
HE-APB8000
| 8000 | 2500 | 2200 | 3250 | 1250 |
HE-APB10000
| 10000 | 3000 | 2200 | 3500 | 1550 |
HE-APB20000 | 20000 | 3500 | 3000 | 4200 | 2400 |
*buoy sizes and buoyancy can be customized according to customer design.
You can contact me at any time if you need it. Thank you for reading.
|
|
