Foam Filled Anchor Pendant Marine Mooring Buoy Customized Size

China Qingdao Henger Shipping Supply Co., Ltd certification
China Qingdao Henger Shipping Supply Co., Ltd certification
we worked with Henger for 4 years, the fenders are high quality without any problems. their salesmen are all very kind and professional.

—— Paulo Anderson

Henger is the best supplier I've ever met in China for pneumatic floating fenders and foam fenders. their fenders are really real-stuff products without cutting workmanship and materials.

—— Tim

Henger has very strong R&D capability, which customized many high-tech products for our institution. wish to have better cooperation with Henger in wider marinetime area.

—— Dr. Kamran Khan

I'm Online Chat Now

Foam Filled Anchor Pendant Marine Mooring Buoy Customized Size

Foam Filled Anchor Pendant Marine Mooring Buoy Customized Size
Foam Filled Anchor Pendant Marine Mooring Buoy Customized Size Foam Filled Anchor Pendant Marine Mooring Buoy Customized Size Foam Filled Anchor Pendant Marine Mooring Buoy Customized Size

Large Image :  Foam Filled Anchor Pendant Marine Mooring Buoy Customized Size

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: ISO 9001
Model Number: 0015
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: nude packing
Delivery Time: 15-30 working days
Payment Terms: D/A, D/P, L/C, T/T, MoneyGram, Western Union
Supply Ability: 50 pcs/week
Detailed Product Description
Roduct Name: Anchor Pendant Buoy Material: Steel, EVA Filling
Size: Customized Size Warranty: 12 Months
Color: Customized Color Logo Service: Customized
High Light:

Foam Filled Marine Mooring Buoy

,

Anchor Pendant Marine Mooring Buoy

,

Foam Filled mooring buoy anchor

Foam Filled Anchor Pendant Marine Mooring Buoy


Steel mooring buoy is available for anchorage of ships of different tonnage. It is quite convenient and flexible to operate as using mooring buoy in anchorage.goods lightering works, maintenance & repair of ships can be operated on the berth. Therefore, the mooring buoy is an important anchoring facility of the port



Steel Mooring Buoy Technical Parameter



Model Net Buoyancy D×H (m) Suitable for Ship Tonnage (t)
HESMB 2.0 3 2.0×1.74 <2000
HESMB 2.6 6 2.6×2.27 <5000
HESMB 3.6 19 3.6×2.14 <10000
HESMB 5.0 28.5 5.0×3.4 <12000
HESMB 5.5 31.2 5.5×3.0 <100000
HESMB 6.0 34.2 6.0×3.2 <150000
HESMB 8.0 40.3 8.0×2.46 <250000

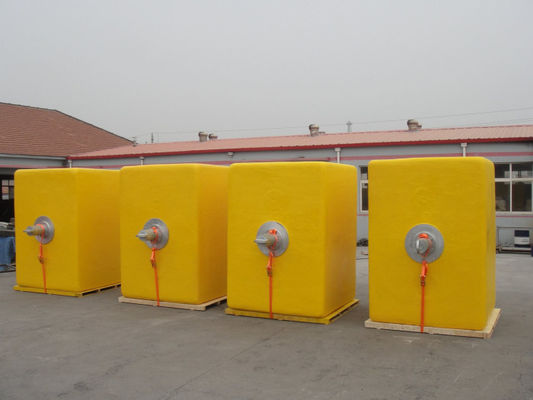

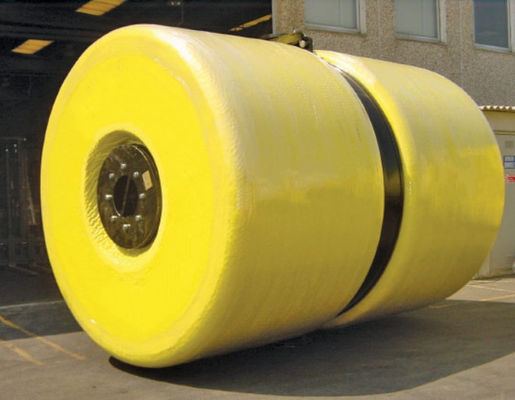

Anchor Pendant Buoy


Anchor pendant buoys are available in a wide range of sizes, with choices of suitcase type, modular and non-modular type, custom-made and standard configurations. All are supplied with removable central steel work configured as per to customer’s requirements – typical handing crucifix/pad eye arrangement or a through haws e for use with anchor wire rather than chain.

Foam Filled Anchor Pendant Marine Mooring Buoy Customized Size 0
Foam Filled Anchor Pendant Marine Mooring Buoy Customized Size 1
Foam Filled Anchor Pendant Marine Mooring Buoy Customized Size 2

Foam Filled Anchor Pendant Marine Mooring Buoy Customized Size 3

Anchor Pendant Buoy Technical Parameters




Model



Reserve Buoyancy
(kg)
Diameter
(mm)
Float Length
(mm)
Overall Length
(mm)
Weight
(kg)



HE-APB1000



1000 1350 1100 1900 300



HE-APB2000



2000 1500 1500 2600 500



HE-APB3000



3000 1850 1500 2600 600



HE-APB4000



4000 2000 1900 2900 850



HE-APB6000



6000 2500 2200 3250 1000



HE-APB8000



8000 2500 2200 3250 1250



HE-APB10000



10000 3000 2200 3500 1550



HE-APB20000


20000 3500 3000 4200 2400


*buoy sizes and buoyancy can be customized according to customer design.
