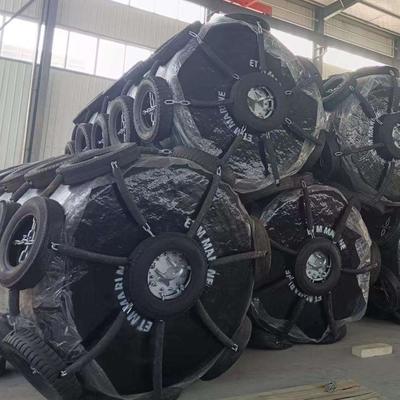

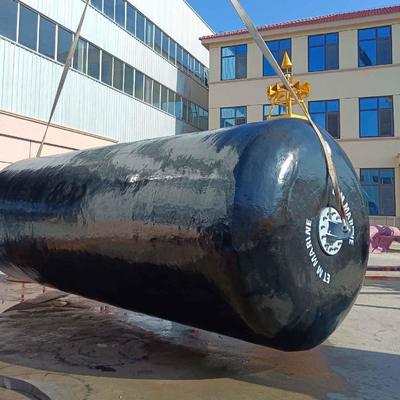

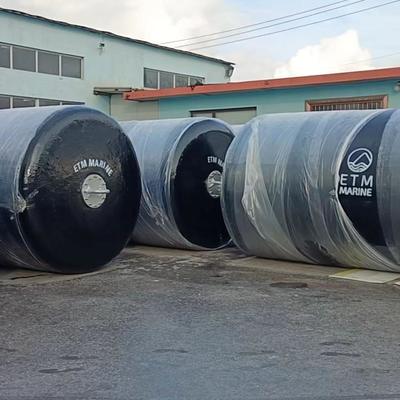

ISO17357 Approved EVA Foam Filled Fender with Customizable Dimensions and High Energy Absorption for Marine Anti Collision

Product Overview

Our EVA Foam Filled Fender represents a state‑of‑the‑art solution for marine fendering, designed to deliver superior impact protection for vessels, port infrastructures, and offshore installations. Manufactured under strict quality control and fully certified to ISO17357, this fender guarantees reliable performance in the most demanding berthing and mooring operations. The closed‑cell EVA (Ethylene‑Vinyl Acetate) foam core offers an exceptional balance of energy absorption, buoyancy, and resilience, ensuring that both ship hulls and quay walls remain safeguarded against collision forces.

Material Excellence

The fender’s core is constructed from high‑grade EVA foam, chosen for its outstanding resistance to seawater, UV radiation, and abrasion. Unlike traditional open‑cell foams, our EVA material is impermeable to water, eliminating the risk of waterlogging and maintaining consistent buoyancy throughout its service life. The standard foam density is set at 70 kg/m³, providing optimal compression characteristics for general marine applications. For projects requiring enhanced load‑bearing capacity or higher energy dissipation, we offer a customizable density up to 110 kg/m³. This flexibility allows you to tailor the fender’s stiffness and reaction force precisely to the expected impact loads, berth configuration, and vessel tonnage.

Comprehensive Customization

We understand that every port and vessel has unique requirements. Therefore, we provide full customization for dimensions and physical properties. The fender’s outer diameter can be manufactured from 0.5 meters up to 4.8 meters, while the length ranges from 1 meter to 12 meters – accommodating everything from small workboats to massive VLCCs and bulk carriers. In addition, the surface color can be selected according to your preference, enabling easy identification or aesthetic matching with your port’s branding. All custom specifications are engineered with precision, and we supply detailed performance calculations to verify that the fender meets your specific operational conditions, including tidal variations and berthing velocities.

Superior Performance Characteristics

The EVA foam filled construction delivers several distinct operational advantages. Firstly, it provides high energy absorption with low reaction force, effectively reducing the peak impact transmitted to both the vessel and the dock structure. This characteristic minimizes structural fatigue and extends the lifespan of your quay walls and mooring equipment. Secondly, the foam’s rapid recovery ensures that the fender returns to its original shape immediately after compression, maintaining consistent cushioning performance over repeated cycles. Thirdly, the material’s inherent buoyancy simplifies handling and installation, as the fender remains afloat even when not fully compressed, reducing the need for heavy lifting gear during deployment.

Rigorous Quality Assurance

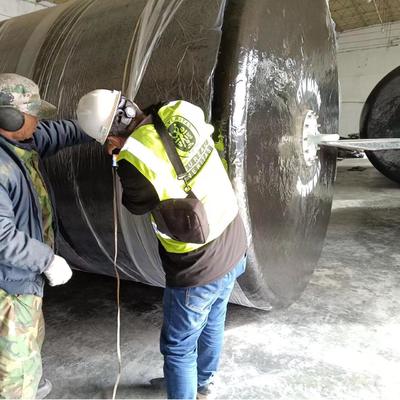

Quality is non‑negotiable in marine safety equipment. Every single fender undergoes a mandatory pressure test prior to packaging and shipment. This test simulates extreme operating conditions to verify the fender’s structural integrity, foam compaction uniformity, and the seal of all fittings. Only after passing this stringent inspection does the unit receive our quality clearance. In addition, we provide full documentation, including material test certificates (MTC), factory acceptance test (FAT) records, and ISO17357 compliance statements, ensuring complete traceability and ease of project approval by classification societies or port authorities.

Wide Range of Applications

Our EVA Foam Filled Fenders are versatile and suitable for a broad spectrum of maritime environments. They are widely used in commercial ports, container terminals, and bulk cargo docks for safe ship‑to‑ship and ship‑to‑dock berthing. Offshore platforms, floating production units, and temporary mooring buoys also benefit from their robust protection. Additionally, they serve effectively in ferry terminals, yacht marinas, and inland waterways, where reliable fendering is essential for passenger and cargo safety.

Warranty and After‑Sales Support

We stand firmly behind the durability of our product with a comprehensive 1‑year warranty covering manufacturing defects and performance deviations. Our dedicated technical support team is available to assist with installation guidance, maintenance recommendations, and any operational queries. Routine maintenance is minimal – periodic visual inspection and surface cleaning are sufficient to keep the fender in peak condition, ensuring a long, cost‑effective service life.

Choose our EVA Foam Filled Fender for a dependable, customizable, and certified fendering solution that combines advanced materials with meticulous craftsmanship, delivering peace of mind and operational efficiency for years to come.
