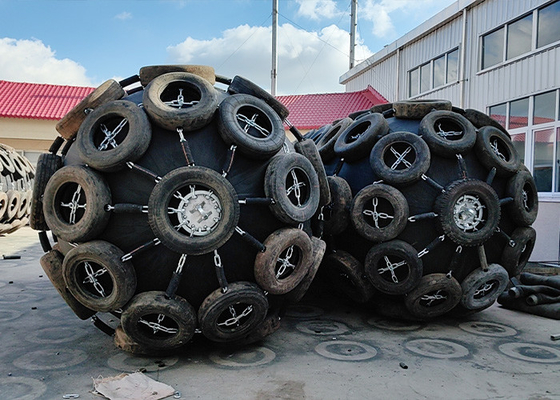

Marine Ship Protection Chain And Tire Net Yokohama Fender

Key Attributes
Brand Name: Henger
Model Number: HE-HPF
Place of Origin: China
Certification: CCS, ABS, LRS, BV, GL, DNV, NK
Minimum Order Quantity: 1PC
Price: $3600 PER PIECE
Supply Ability: 4 PCS PER WEEK
Delivery Time: 7-15 WORKING DAYS
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Standard Packaging: NUDE/PALLET

Product Summary

Marine Ship Protection Chain And Tire Net Yokohama Fender Marine Ship Protection Chain And Tire Net Yokohama Fender Introduction Marine fender also called pneumatic fender, rubber fender, yokohama fender, made by rubber & multi layers of rubber-dipped tyre fabric, is a leading anti-collision device ...

Product Custom Attributes

Highlight

Tire Net Yokohama Fender

,

Ship Protection Yokohama Fender

,

Customized Marine Pneumatic Rubber Fender

Material:
Rubber
Size:
D:0.5~4.5m L:1~9m
Aplication:
Dock Ship Protecrion;STS Protection
Color:
Customized
MOQ:
1 Piece
Warranty:
24 Months
Service Life:
15-20 Years
Packing:
Pallet/Nude
Product Description

Marine Ship Protection Chain And Tire Net Yokohama Fender

Marine Ship Protection Chain And Tire Net Yokohama Fender Introduction

Marine fender also called pneumatic fender, rubber fender, yokohama fender, made by rubber & multi layers of rubber-dipped tyre fabric, is a leading anti-collision device for marine application in the world today. Marine fenders have become an ideal ship protection medium against collision among ship-to-ship (STS), ship to quay (STQ) and ship-to-berthing (STB), they are widely used for large tankers, vessels, docks, harbor wharfs and ocean platforms.

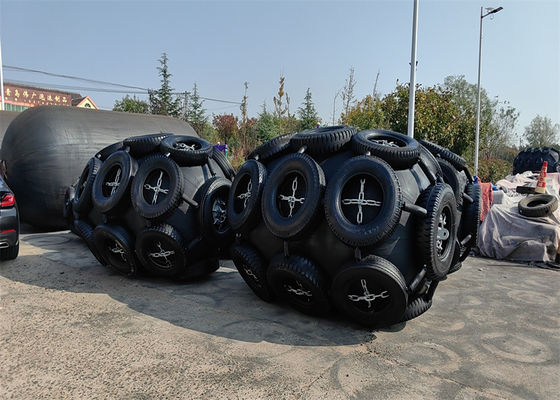

Marine Ship Protection Chain And Tire Net Yokohama Fender 0

Marine Ship Protection Chain And Tire Net Yokohama Fender Parameter

Pneumatic 50 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection(R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10 % kN

Reference value

kPa

500 x 1000 50 6 64 132
600 x 1000 50 8 74 126
700 x 1500 50 17 137 135
1000 x 1500 50 32 182 122
1000 x 2000 50 45 257 132
1200 x2000 50 63 297 126
1350 x 2500 50 102 427 130
1500 x 3000 50 153 579 132
1700 x 3000 50 191 639 128
2000 x 3500 50 308 875 128
2500 x 4000 50 663 1381 137
2500 x5500 50 943 2019 148
3300 x 4500 50 1175 1884 130
3300 x 6500 50 1814 3015 146
3300 x 10600 50 3067 5257 158
4500 x 9000 50 4752 5747 146
4500 x 12000 50 6473 7984 154



Pneumatic 80 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection (R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10% kN

Reference value

kPa

500 x 1000 80 8 85 174
600 x 1000 80 11 98 166
700 x 1500 80 24 180 177
1000 x 1500 80 45 239 160
1000 x2000 80 63 338 174
1200 x 2000 80 88 390 166
1350 x 2500 80 142 561 170
1500 x 3000 80 214 761 174
1700 x 3000 80 267 840 168
2000 x 3500 80 430 1150 168
2500 x 4000 80 925 1815 180
2500 x 5500 80 1317 2653 195
3300 x 4500 80 1640 2476 171
3300 x 6500 80 2532 3961 191
3300 x 10600 80 4281 6907 208
4500 x 9000 80 6633 7551 192
4500 x 12000 80 9037 10490 202

Marine Ship Protection Chain And Tire Net Yokohama Fender Application

1. Oil and gas tankers

2. Fast ferries and aluminum vessels

3. Temporary and permanent installations

4. Rapid response and emergencies

5. In ports with extreme tidal variations

6. For ship-to-ship lightering operations

7. For all navy vessels due to low hull pressure and the advantage of a proportional increase of reaction force and energy absorption

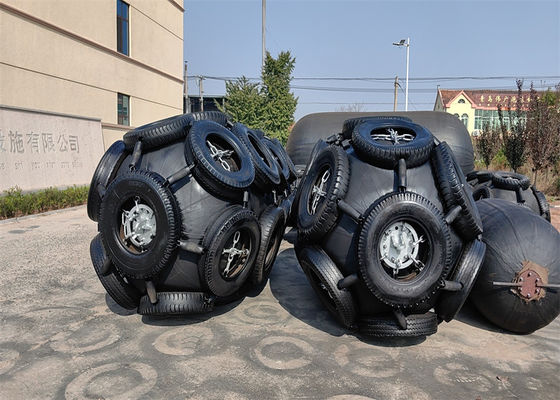

Marine Ship Protection Chain And Tire Net Yokohama Fender 1

Marine Ship Protection Chain And Tire Net Yokohama Fender Feature

1 Compliance with ISO 17357
2 More safety and reliability
3 Lower mooring forces
4 Adaptable to the tide
5 Low maintenance cost
6 Low reaction force and hull pressure
7 Most cost competitive system
8 Simple and low cosy installation
9 Various optional fitting
10 Advange against shearing force



Marine Ship Protection Chain And Tire Net Yokohama Fender 2

Marine Ship Protection Chain And Tire Net Yokohama Fender Transportation

Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.



Marine Ship Protection Chain And Tire Net Yokohama Fender 3

Marine Ship Protection Chain And Tire Net Yokohama Fender After-sale Service

Service and transportation:



The product warranty period of Henger is 24 months, and the average supplier can not reach such a long time, which is also the trust we and customers have in our factory products.



After-sales service we are online 24 hours a day, as long as you have questions we will always be there, there will be professional staff to answer your questions and provide you with technical support.



Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.





1."I have ships but don't know how to choose the size of Pneumatic Marine rubber fender, can you help me?"
Answer: Don't worry .We have more than 20 years' experience. Pls tell me information of your ship, we can suggest suitable size
for you.

2."I want to try your Pneumatic Marine rubber fenders, but I never use it and don't know how to use, can you help me?"
Answer: Don't worry. We will send instruction book together with Pneumatic Marine rubber fender.

3."What's your MOQ?"
Answer: Our MOQ is 1PC.

4."How about the lifespan of your Pneumatic Marine rubber fender?"
Answer: Designed lifespan of our Pneumatic Marine rubber fender is 6 to 10 years.

5."What's your warranty period ?"
Answer: Our warranty period is 2 years. we will responsible for the repairment or replace the new ones for you if it proved to be our quality problem.

6."What kind of certificate can you provide ?"
Answer: CCS, SGS etc. certificate is available.
