| MOQ: | 1pcs |
| Standard Packaging: | naked |
| Delivery Period: | 5days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 50pcs week |

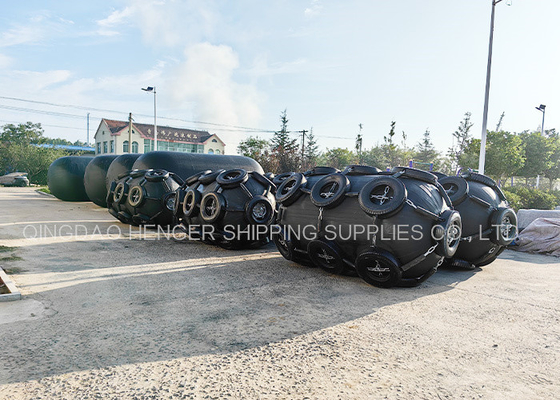

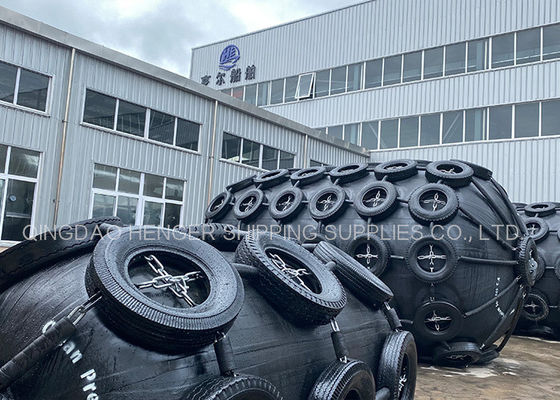

The Pneumatic Fender or Inflatable Rubber Fender or Yokohama Fender, uses compressed air as a buffer medium to absorb the impact energy of the ship, so that the ship has more flexibility and softness when docked, so as to achieve the effect of preventing collision and collision.
What type do we have?
Tyre Net Type: tie several tires on to the ball, two ends are tied on the special flying ring which can turn flexibly. It is suitable for large size dependable ball.
Rubber Net Type: tie special rubber padder onto the ball, it can shrink or stretch freely when squeezing. It is suitable for medium size & small size dependable ball.
Cord Type: weave a net cover by nylon rope; tightly tie it on the ball. It is situ for small size dependable ball.
Production standard: ISO17357
Certificate: BV, LR, ABS, GL, CCS, SGS is available;
Check our other types of Fixed Fenders & Inflatable Fenders & Foam Filled Fenders, and fender chains, shackles acceyou may need them as well.
If you are looking for ex-stock or customized sizes, contact with our sales engineers.
| Pneumatic 80 fender size and performance requirements | ||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection (R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10% kN |
Reference value kPa |
||
| 500 x 1000 | 80 | 8 | 85 | 174 |
| 600 x 1000 | 80 | 11 | 98 | 166 |
| 700 x 1500 | 80 | 24 | 180 | 177 |
| 1000 x 1500 | 80 | 45 | 239 | 160 |
| 1000 x2000 | 80 | 63 | 338 | 174 |
| 1200 x 2000 | 80 | 88 | 390 | 166 |
| 1350 x 2500 | 80 | 142 | 561 | 170 |
| 1500 x 3000 | 80 | 214 | 761 | 174 |
| 1700 x 3000 | 80 | 267 | 840 | 168 |
| 2000 x 3500 | 80 | 430 | 1150 | 168 |
| 2500 x 4000 | 80 | 925 | 1815 | 180 |
| 2500 x 5500 | 80 | 1317 | 2653 | 195 |
| 3300 x 4500 | 80 | 1640 | 2476 | 171 |
| 3300 x 6500 | 80 | 2532 | 3961 | 191 |
| 3300 x 10600 | 80 | 4281 | 6907 | 208 |
| 4500 x 9000 | 80 | 6633 | 7551 | 192 |
| 4500 x 12000 | 80 | 9037 | 10490 | 202 |
