Product Details:
Payment & Shipping Terms:
|
Name: | Pneumatic Rubber Fender | Color: | Black |
---|---|---|---|
Size: | 3.3*6.5M | Inner Pressure: | 50Kpa |
Style: | With Chain And Tyre | Lifespan: | About 10 Years |
Warranty Time: | 24 Months | MOQ: | 1 PC |
Material: | Natural Rubber | Payment: | Trade Assurance, T/T, L/C, Western Union, Money Gram |
High Light: | Chain Tyre Rubber Fender,3.3x6.5M Rubber Fender,50Kpa Yokohama Type Pneumatic Fender |
Qingdao Henger Shipping Supplies Co., Ltd
Qingdao Henger Shipping Supplies Co., Ltd is a most professional manufacturer in Shipping Supplies with 20 years production experience. Mainly supply you shipping supplies.
Main products:
Pneumatic rubber fender;
Floating foam filled fender;
Marine rubber airbag;
D-type /V-type/Cylindrical-type/Cell-type rubber fenders;
Mooring buoy;
Anchor;
Chain;
Bollard;
Mooring rope

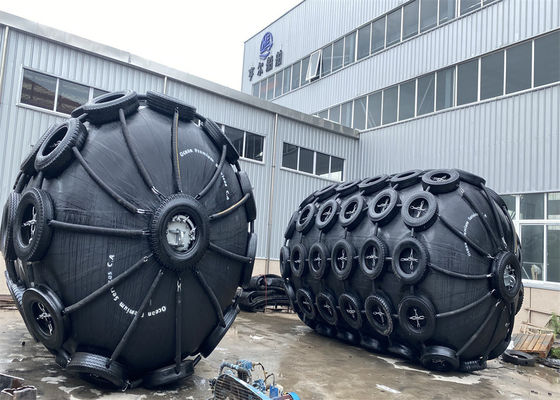

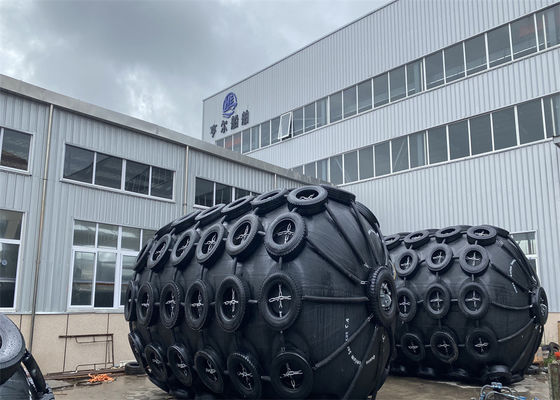

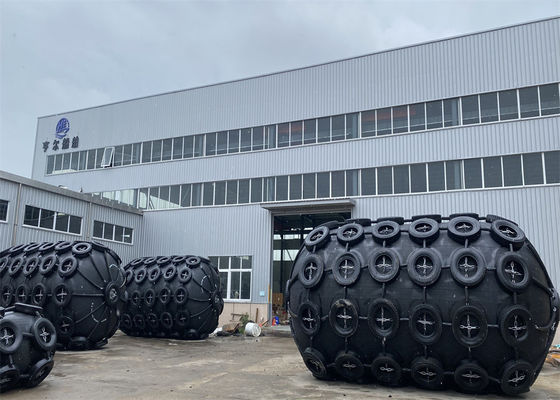

3.3*6.5M Pneumatic Rubber Fender:
Floating pneumatic rubber fenders shall consist of an out rubber, reinforcement synthetic-tire-cord layer, and inner rubber, vulcanized firmly.
The properties requirements of outer and inner rubber material of floating pneumatic rubber fenders comply with ISO 17357:2014.
ISO 17357-1:2014 Ships and marine technology - Floating pneumatic rubber fenders - Part 1: High pressure
ISO 17357-2:2014 Ships and marine technology - Floating pneumatic rubber fenders - Part 2: Low pressure
Advantage:
Marine Pneumatic Rubber fender is the advanced anti-collision device for marine application in the world. Pneumatic rubber fender is also known as floating fender or Yokohama type tugboat rubber fender, it is often installed on the terminal or ship, which aims to absorb or reduce the collision energy between ship to ship and ship to dock. This kind of product can protect the ship or dock from the damage of collision. With inner compressed air, it can float on the water and widely used as protecting medium equipment. Size : D0.5 m x L1.0 m ~ D 3.3 x L6.5m. "HNGER" yokohama barco defensas are produced in strict accordance with the ISO17357-2002 and GB/T 2002-2002 international quality standard. Nowadays, our products have been exported to all over the world.
The 3.3*6.5M fenders are generally installed bare, because the size after deflation is relatively large, and a 3.3*6.5M fender with chain tires can be loaded into a 20GP container, and 2 fenders need loaded into a 40HQ container, 3 fenders need to be loaded into a 40OT container.
Parameters:
Fender body size: 3.3*6.5M
With CTN: 3.62*6.5M
Weight with CNT: 3500KGS
Initial Pressure: 50Kpa
Reaction Force: 3015Kn
Energy ABSorption: 1814Kn M
Color:
Regular Color: Black
Other Color: White and Ship Gray (According to your request)
Application:
1. STD anti-collision
2. STS anti-collision
Applicable industries:
1. Oil and Gas
2. STS/STD
3. Shipping Industry
4. Ocean Engineering
5. Maritime Bureau
6. Offshore Service
7. Shipyard/Dockyard
50Kpa/80Kpa Pneumatic Rubber Fenders Technical Parameters:
Nominal size diameter x length (mm) | Initial Internal Pressure (Kpa) | GEA (60+-5%KJ) | Reaction force at GEA deflection (R)/Tolerance+-10% (KN) | Hull Presure at GEA deflection (p)/ Reference value (Kpa) |
500*1000 | 50/80Kpa | 6/8 | 64/85 | 132/174 |
600*1000 | 50/80Kpa | 8/11 | 74/98 | 126/166 |
700*1500 | 50/80Kpa | 17/24 | 137/180 | 135/177 |
1000*1500 | 50/80Kpa | 32/45 | 182/239 | 122/160 |
1000*2000 | 50/80Kpa | 45/63 | 257/338 | 132/174 |
1200*2000 | 50/80Kpa | 63/88 | 297/390 | 126/166 |
1350*2500 | 50/80Kpa | 102/142 | 427/561 | 130/170 |
1500*3000 | 50/80Kpa | 153/214 | 579/761 | 132/174 |
1700*3000 | 50/80Kpa | 191/267 | 639/840 | 128/168 |
2000*3500 | 50/80Kpa | 308/430 | 875/1150 | 128/168 |
2500*4000 | 50/80Kpa | 663/925 | 1381/1815 | 137/180 |
2500*5500 | 50/80Kpa | 943/1317 | 2019/2653 | 148/195 |
3300*4500 | 50/80Kpa | 1175/1640 | 1884/2476 | 130/171 |
3300*6500 | 50/80Kpa | 1814/2532 | 3015/3961 | 146/191 |
3300*10600 | 50/80Kpa | 3067/4281 | 5257/6907 | 158/208 |
4500*9000 | 50/80Kpa | 4752/6633 | 5747/7551 | 146/192 |
4500*12000 | 50/80Kpa | 6473/9037 | 7984/10490 | 154/202 |
Our Hot-sellers size is :
1000*1500mm/1000*2000mm/1200*2000mm/1500*3000mm/1700*3000mm/2000*3500mm/2500*4000mm/2500*5500mm/3300*6500mm/4500*9000mm
Why Choose Us:
1. We are the manufacturer
2. We have our own professional design team, if you have the design method, you can let us know
3. We have our own factory more than 4000 square meters
4. We can supply you all the Shipping Supplies with best price
FAQ:
1. Are you the manufacturer or Trade Company:
We are the manufacturer in Qingdao, Shandong province, China
2. Which shipping method can you use?
We can use sea transportation, air transportation and land transportation to ship, this is according to which is convinience for you
3. Which payment way do you accept?
We accept Alibaba Trade Assurance, T/T, L/C, Western Union, Money Gram and so on payment way.
Contact Person: Mr. Tom
Tel: 15662503695
