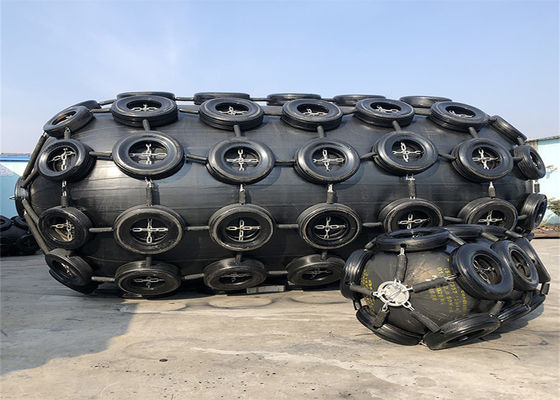

50Kpa Floating Marine Pneumatic Rubber Fender With Chain And Type

50Kpa High Quality Floating Marine Pneumatic Rubber Fender With Chain And Type

Qingdao Henger Shipping Supplies Co., Ltd

Qingdao Henger Shipping Supplies Co., Ltd is a most professional manufacturer in Shipping Supplies with 20 years production experience. Mainly supply you shipping supplies.

Our products had been passed BV, CCS, ABS, LR, DNV, etc classification society inspection.

Features:
1).Hanged by chains and steel bars, easy to stall and maintain.
2).Low reaction forces, little surface pressure and reasonable energy absorption
3).Especially applicable for upper part of integral docks
4).Good adaptability for transversal and longitudinal shape during berthing.
Marine Floating Inflatable Rubber Fender for Dock and Ships,Rubber Fender for Boat

Advantage:

1. Safe for excess load marine depend on the ball
The reaction force of a floating pneumatic fender does not increase sharply even under excess load. Therefore, these fenders perform extremely well under such condation and as a result, protect ships and mooring facilities.
2. No deterration or variation in performance
Because pneumatic fenders utilise the compressive elasticity of air, performance deteriation due to fatigue is completely absent. The performance of these fenders remain unchanged at extremely low temperatures, even below - 50'C.
3. Safety realiability
Henger pneumatic rubber fender are constructed using several layers of strong tyre cord are therefore extremely resistant to pressure and cutting, and are therefore extremely resistant to pressure and cutting. The larger size ( 2.5m dia upward ) are fitted with safety valve to prevent accident in the event of over copressiom.
4. Construction
The fender body is constructed of an inner rubber layer, reinforcing cord layers and an outer rubber layer. All three layers are bonded together by a combination of heat and pressure over a period of time in a vulcanising oven. Once completed, the fenders are pressure tested before relase.
To provide maximum strength and safety, the out skin of submarine fender is thicker than a normal surface fender.
The outer skin rubber compound is desinged and manufactured to be able to withstand both strenuous use and adverse weather. Condations whilst protecting the cord layers and inner rubber the cord layers are corranged at optimum angles designed to be completely airtight.
5. Simple and low cost installation
The weight of the fenders is supported by the water on which it floats, therefore, the fender can be morred simply by means of a guy rope or chain at minimal cost it can be removed easily to another quay or jetty when not use or transfeered to alternative mooring points as required
6. CTN (Chain and Tyre Net)
Almost floating fenders are protected by a chain and tyre net. The purpose of the chain and tyre net is to protec the fender body from damage by sharp objets or protrusions such as rough faced quay walls, to distribute sheer forces along the length of the chain net and to prevent the fender body from having to absorb them.
Marine depend on the ball safe for excess load boat fender using ship to ship working press 0.05Mpa - 0.08 Mpa marine fender

Color:

Regular Color: Black

Other Color: White and Ship Gray (According to your request)

Application:

1. STD anti-collision

2. STS anti-collision

Applicable industries:

1. Oil and Gas

2. STS/STD

3. Shipping Industry

4. Ocean Engineering

5. Maritime Bureau

6. Offshore Service

7. Shipyard/Dockyard

50Kpa/80Kpa Pneumatic Rubber Fenders Technical Parameters:

Our Hot-sellers size is :

1000*1500mm/1000*2000mm/1200*2000mm/1500*3000mm/1700*3000mm/2000*3500mm/2500*4000mm/2500*5500mm/3300*6500mm/4500*9000mm

Remarks:

• Initial pressure 0.05Mpa.
• Tolerance between Reaction force & Energy absorption: ±10%
• Weight Tolerance: ±10%
• Special dimensions can be customized.
• All the Fittings are Hot-galvanized and Antirust Treatment.
