Product Details:
Payment & Shipping Terms:
|
| Material: | Natural Rubber | Application: | STS |
|---|---|---|---|
| Color: | Black | ||
| High Light: | STS Black Inflatable Rubber Fender,Black Yokohama Inflatable Rubber Fender,Black Yokohama Rubber Fender |
||
Advantage Features: floating pneumatic rubber fenders can be easily handled and installed with guy-rope or guy-chain due to its light weight. It can resist the shearing force and maintain energy absorption level under inclined compressionup to 15 degrees. Meanwhile, provide the low and comparatively even hull pressure.

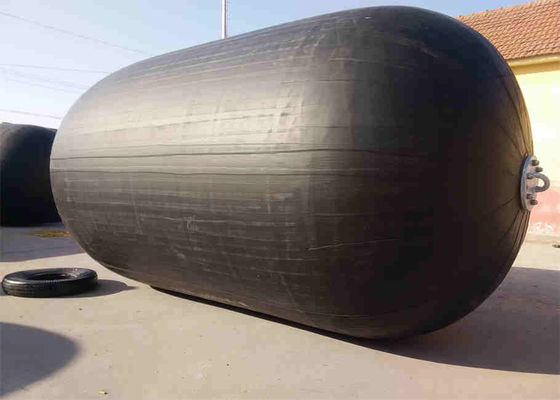

Construction Features: pneumatic rubber fenders is constructed of inner rubber layer, reinforced synthetic tire cord rubber layers, outer rubber layers. Inner rubber layer is made of pure rubber to seal pressurized air inside. Synthetic tire cord rubber layers are type middle reinforced synthetic tire cord layers with rubber dipped. Outer rubber layer is much more thicker than inner layer that is the coating and skin of whole pneumatic rubber fender.
Features:
1. Large compression deformation, low reaction force, high energy absorption
2. Good floating performance, can meet the needs of the water level change
3. With compressed air as medium, the collision energy consumption by compressed air power
4. Easy installation and long service life
Specification:
|
Specification D×L m |
Initial pneumatic pressure 0.05Mpa | Initial pneumatic pressure 0.08Mpa | ||||
| Sphere Weight(KG) | R(KN) | GEA(KJ) | Sphere Weight(KG) | R(KN) | GEA(KJ) | |
| 0.5×1.0 | 25 | 64 | 6 | 25 | 85 | 8 |
| 0.6×1.0 | 32 | 74 | 8 | 32 | 98 | 11 |
| 0.7×1.5 | 50 | 137 | 17 | 50 | 180 | 24 |
| 1.0×1.5 | 80 | 182 | 32 | 80 | 239 | 45 |
| 1.0×2.0 | 100 | 257 | 45 | 125 | 338 | 63 |
| 1.2×2.0 | 120 | 297 | 63 | 165 | 390 | 88 |
| 1.35×2.5 | 165 | 427 | 102 | 226 | 561 | 142 |
| 1.5×3.0 | 315 | 579 | 153 | 370 | 761 | 214 |
| 1.7×3.0 | 405 | 639 | 191 | 436 | 840 | 287 |
| 2.0×3.5 | 590 | 875 | 308 | 632 | 1150 | 430 |
| 2.5×4.0 | 1050 | 1381 | 663 | 1110 | 1815 | 925 |
| 2.5×5.5 | 1333 | 2019 | 943 | 1410 | 2653 | 1317 |
| 3.0×5.0 | 1880 | 2000 | 1050 | 2155 | 2709 | 1571 |
| 3.0×6.0 | 2160 | 2488 | 1312 | 2470 | 3292 | 1888 |
| 3.3×4.5 | 2020 | 1884 | 1175 | 2300 | 2476 | 1640 |
| 3.3×6.0 | 2300 | 2783 | 1675 | 2600 | 3652 | 2338 |
| 3.3×6.5 | 2700 | 3015 | 1814 | 3080 | 3961 | 2532 |
| 3.3×10.6 | 4403 | 5257 | 3067 | 5020 | 6907 | 4281 |
| 4.5×9.0 | 6554 | 5747 | 4752 | 7470 | 7551 | 6633 |
| 4.5×12.0 | 8739 | 7984 | 6473 | 9960 | 10490 | 9037 |
|
Note: The weight and reaction force & Energy absorption tolerance ±10% |
||||||
> Dimensional inspection — shall be inspected at the initial internal pressure. Tolerance: +10%, -5%.
> Air-leakage test — shall be conducted at initial pressure for more than 30 min
> Hydrostatic-pressure test — shall be performed for 10 min at the hydrostatic pressure shown in “test pressure at 0% deflection”. Maximum temporary elongation: 10%
The performance of floating pneumatic rubber fenders shall be specified in terms of Guaranteed Energy Absorption (GEA), Reaction Force at GEA deflection, and Hull Pressure at GEA deflection.
– Pressure Requirement
Ronsen Yokohama t ype pneumatic rubber fennders are classfied in initial pressure and shapes, appearance. According to pressure requirements of ISO 17357, we produce two standard intial pressure for pneumatic rubber fenders, Pneumatic 50, initial internal pressure 50 kPa ( called P50 ) and Pneumatic 80, initial pressure 80 kPa ( called P80 ).
– Fenders Type

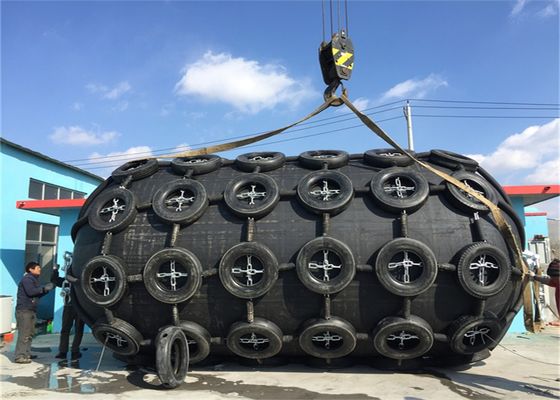

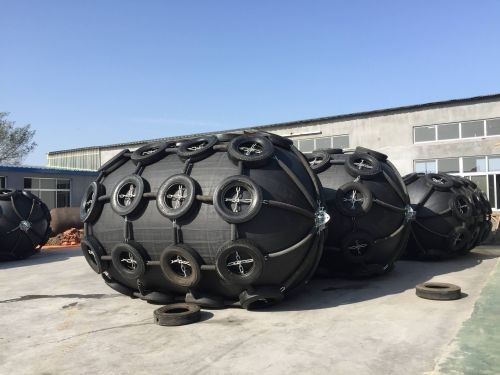

There are many choices for protective jacket of inflatable rubber fender, Henger could also provide OEM
service and technical design based on customer requirement and actual demand. contact our sales service for more details.
