Yokohama Type Inflatable Rubber Fender For Protecting Hull

Hot Sale Yokohama Type Inflatable Rubber Fender For Protecting Hull

1. Inflatable Rubber Fender Introduction

Inflatable Rubber Fender are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships. Since its creation until today, more than millions of fenders have been supplied worldwide both for ship-to-ship and ship-to-dock (STD) operations serving our valuable customers. These fenders play a critical role in the safe operation of ship berthing and mooring.

2. Inflatable Rubber Fender Types

there are many type of penumatic rubber fenders with various functions based on different protective jacket and design.

Henger could provide OEM service and technical design based on customer requirement and actual demand. contact our sales service for more details.

3. Tyre-chain Protective Jacket Type Yokohama Inflatable Rubber Fender

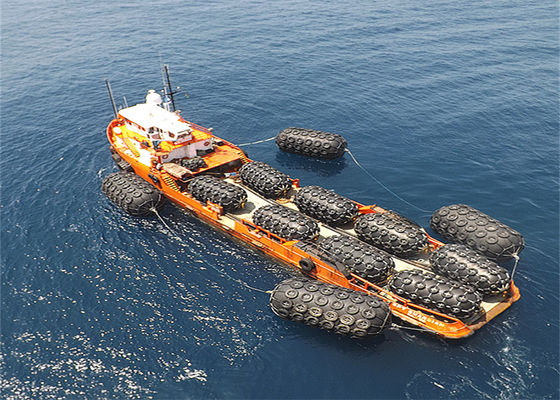

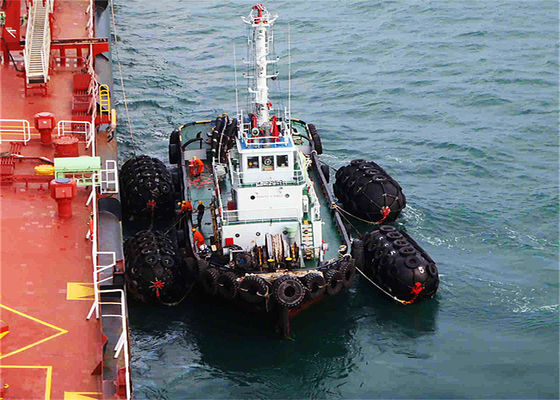

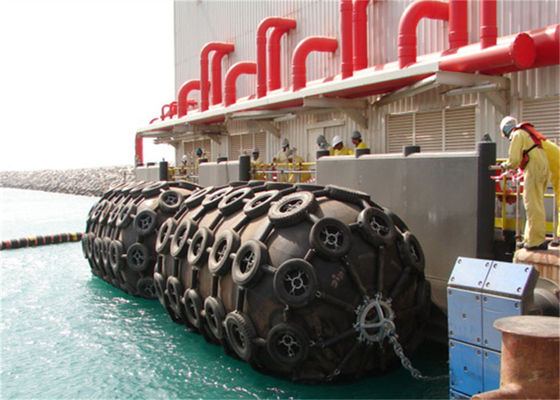

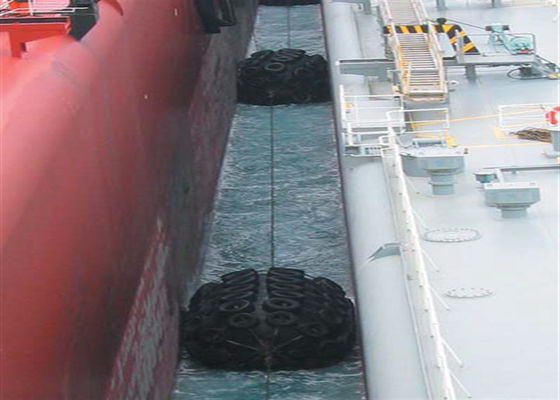

Product Show

4. Henger Inflatable Floating Rubber Fender Structure

5. Air Filled Floating Rubber Fender Manufacturing Proces

6. Henger Pneumatic Marine Rubber Fender Advantages

6.1. Safety and Reliability

Henger Inflatable Rubber Fender  are constructed of several layers of strong tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the design of this fender is based on accepted theory and has been proven by extensive experimentation.

large-size fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.

6.2. No Deterioration or Variation in Performance

Henger Inflatable Rubber Fenders utilize the compressive elasticity of air, therefore

performance deterioration due to fatigue is absent.

6.3. Advantages at Inclined Berthing

Henger Inflatable Rubber Fenders, energy absorption does not decrease at inclined compression up to 15 degrees.

6.4. Most Cost Competitive System

The utilization of the compressive elasticity of air provides completely uniform surface pressure on contact, making Henger Pneumatic Rubber Fenders ideal. The surface pressure of the Inflatable Rubber Fenderis equal to the internal air pressure.

Due to low and uniform surface pressure properties, the Henger Pneumatic Rubber Fenders are popular at LNG-ship terminals.

6.5. Soft Reaction Force for Ship and Jetty Structure

The reaction force of Henger Inflatable Rubber Fender does not increase sharply, even under excess load conditions. Therefore, the Henger Pneumatic Rubber Fenders perform well in such cases, and protect ships and mooring facilities.

6.6. Lower Mooring Forces under Rough Weather Conditions

the reaction force and deflection of Henger Inflatable Rubber Fender do not easily reach the maximum because the reaction force increases slowly and allowable deflection is wide. Thus, the Henger Pneumatic Rubber Fenders safely protect ships and mooring facilities even under rough weather.

7. Inflatable Rubber Fender Technical Parameter
