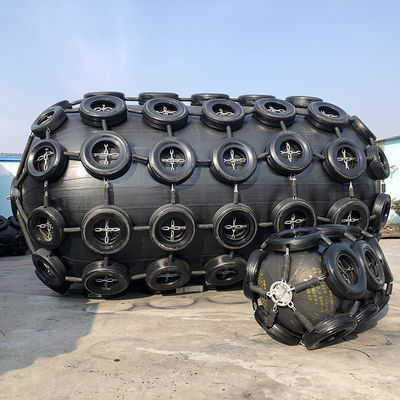

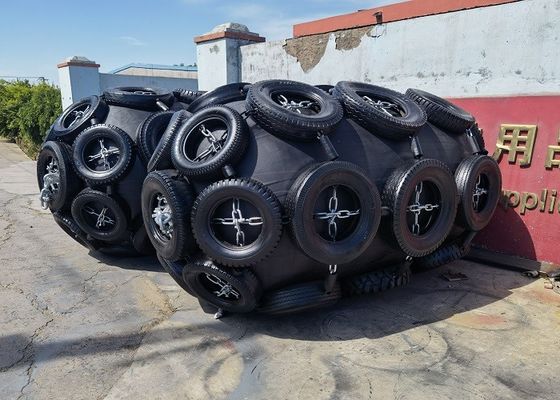

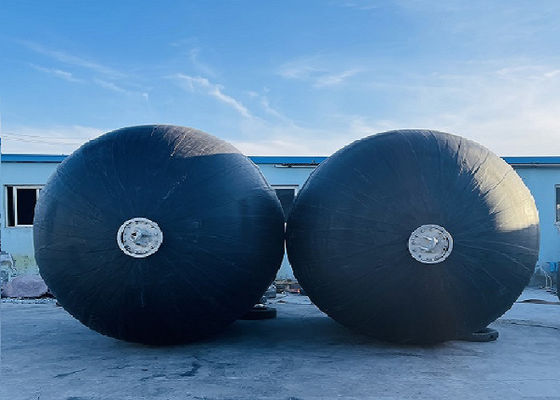

50kpa 80kpa Yokohama Type Inflatable Marine Rubber Fenders ISO17357 Standard The advantages of the Pneumatic Rubber Fends: 1. Guaranteed energy absorption 2. Thick skin construction 3. Good angular performance 4. Less surface pressure onto the side wall of ships. (The capability of accepting surface ...
The advantages of the Pneumatic Rubber Fends:
1. Guaranteed energy absorption
2. Thick skin construction
3. Good angular performance
4. Less surface pressure onto the side wall of ships. (The capability of accepting surface pressure of the fender is up to 14 ton/m2).
5. No reduction on the performance of compression when inclined.
6. Especially in mooring of large scale ships in sea docks and lightering.
Floating Inflatable Fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships. Since its creation until today,
more than millions of fenders have been supplied worldwide both for ship-to-ship and ship-to-dock (STD) operations serving our valuable customers.
These fenders play a critical role in the safe operation of ship berthing and mooring.
Inflatable Rubber Fender Types
There are many choices for protective jacket of inflatable rubber fender, Henger could also provide OEM
service and technical design based on customer requirement and actual demand. contact our sales service for more details.
Details of Henger Pneumatic Rubber Fenders
Inflatable Rubber Fender Technical Parameter
| Fender Size | Compression Amount (60%) | Noumenon Weight (Kg) |
Weight with Protective Jacket (Kg) |
||
| D (mm) |
L (mm) |
Reaction (KN) |
Energy Absorption (KNm) |
||
| 500 | 1000 | 64 | 6 | 23 | 35 |
| 600 | 1000 | 74 | 8 | 28 | 40 |
| 700 | 1000 | 137 | 17 | 58 | 52 |
| 1000 | 1500 | 182 | 32 | 82 | 100 |
| 1000 | 2000 | 257 | 45 | 148 | 152 |
| 1200 | 2000 | 297 | 63 | 167 | 200 |
| 1350 | 2500 | 427 | 102 | 220 | 298 |
| 1500 | 2500 | 499 | 134 | 270 | 300 |
| 1500 | 3000 | 579 | 153 | 318 | 450 |
| 1700 | 3000 | 639 | 191 | 380 | 482 |
| 2000 | 3500 | 875 | 308 | 580 | 890 |
| 2000 | 4000 | 1000 | 352 | 680 | 1000 |
| 2500 | 4000 | 1381 | 663 | 1064 | 1180 |
| 2500 | 5500 | 2019 | 1131 | 1268 | 1380 |
| 3000 | 5000 | 2422 | 1357 | 1980 | 2388 |
| 3000 | 6000 | 2906 | 1293 | 2400 | 2690 |
| 3300 | 4500 | 1884 | 1175 | 2380 | 2617 |
| 3300 | 6500 | 3015 | 1814 | 2980 | 3000 |
| * there are inflatable fenders of 0.05Mpa & 0.08Mpa internal pressure for choice, kindly contact our service consultant for more details and competitive prices. * inflatable fender size could be customized according to customer requirement. * all accessorires could be customized according to customers' requirement or drawings. |
|||||
Model Selection of Inflatable Fender for Small & Middle Size Ship
| Ship Tonnage(T) | Recommendation Size D x L ( m) | Ship Type |
| 50 | 0.5 x1.0 | Fishing ship |
| 100 | 0.7 x 1.5~1.0 x 1.5 | Fishing ship |
| 200 | 1.0 x 1.5~1.2 x 2.0 | Fishing ship, towing ship |
| 300-500 | 1.2 x 2.0~1.5 x 2.5 | Fishing ship, towing ship |
| 1000 | 1.5 x 2.5~1.5 x 3.0 | Towing ship, cargo ship |
| 3000 | 2.0 x 3.0~2.0 x 3.5 | cargo ship, ocean trawler |
| 10000 | 2.0 x 3.5~2.5 x 4.0 | cargo ship |
Model Selection of Inflatable Fender for Large-tonnage Ship
| Ship Tonnage (DWT) |
Assumed Boarding Speed (M/S) |
Effective Kinetic Energy (KN.M) |
Fender Size D*L (m) |
| 200000 | 0.15 | 1890 | 3.3 x 6.5 |
| 150000 | 0.15 | 1417 | 3.3 x 6.5 |
| 100000 | 0.15 | 945 | 3.0 x 5.0 |
| 85000 | 0.17 | 1031 | 3.0 x 6.0 |
| 50000 | 0.18 | 680 | 2.5 x 5.5 |
| 40000 | 0.20 | 672 | 2.5 x 5.5 |
| 30000 | 0.22 | 609 | 2.5 x 4.0 |
| 20000 | 0.25 | 525 | 2.5 x 4.0 |
| 15000 | 0.26 | 425 | 2.5 x 4.0 |
| 10000 | 0.28 | 329 | 2.0 x 4.0 |
| 5000 | 0.33 | 228 | 2.0 x 3.5 |
Production Process
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment?
A: Payment ≤ 1000USD, 100% in advance. Payment ≥ 1000USD, 30% T/T in advance, balance before shipment.
* all packing method and shipping method of inflatable rubber fenders are done as per to csutomer's requirement.
Please contact us if you are interested in them.
