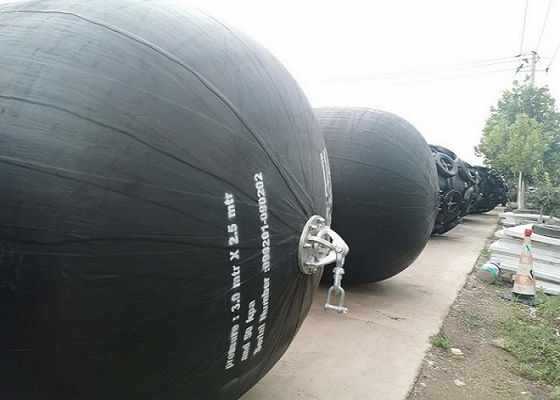

Long Life Durable Protective Marine Pneumatic Rubber Fender Sling Type Pneumatic Fender Advantage 1. High security and reliability 2. Long-term use of performance without decline, no change 3. Compared with solid rubber fenders, the performance is more prominent when berthing on inclined planes 4. ...
Sling Type Pneumatic Fender Advantage
1. High security and reliability
2. Long-term use of performance without decline, no change
3. Compared with solid rubber fenders, the performance is more prominent when berthing on inclined planes
4. The berthing is economical and saves the cost of the berthing system
5. The berthing reaction force is smoother and softer
6. Excellent shear resistance performance
7. Adaptive sea tide level
8. Low transportation cost, simple installation, low installation cost and low maintenance cost
Sling Type Pneumatic Fender Function
1. Oil tankers, LNG and other ships rely on ships for offshore transmission operations
2. Docks, wharf operations and ship berthing
3. Temporary or permanent anti-collision protection for coastal defense facilities
4. Anti-collision buffer protection for offshore platforms and offshore buildings

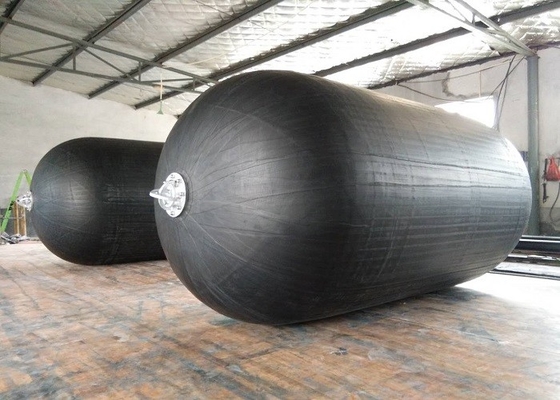

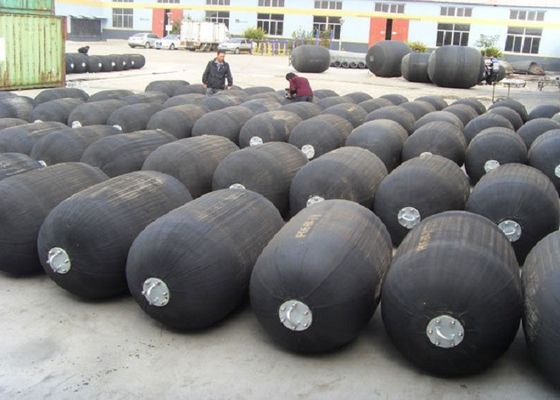

Main Structure of Sling Type Pneumatic Fender
The inflatable rubber fender is mainly composed of inner rubber, cord reinforcement layer, outer rubber and metal parts such as flanges.
The inner rubber is composed of natural rubber with a rubber content of 60%. Its main function is to ensure the air tightness of the inflatable ball, and it can be used for a long time without obvious pressure relief in the state of being squeezed. The thickness of the inner layer of rubber is usually 2-4mm, which is determined according to the requirements of different specifications of inflatable rubber fenders.
The cord reinforcement layer is the dipped cord fabric layer. The cord fabric is characterized by thick warp, high density and high strength. After the cord fabric is dipped, it is bonded to the inner and outer layers of rubber. The structure is integrated, so the cord reinforcement layer has high strength, fatigue resistance, impact resistance, good heat resistance stability, good adhesion to rubber, aging resistance and easy processing.
The outer rubber is mainly used to protect the reinforcement layer and the inner rubber and to further ensure the air tightness of the inflatable rubber fender.
| Pneumatic 50 fender size and performance requirements | ||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection(R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10 % kN |
Reference value kPa |
||
| 500 x 1000 | 50 | 6 | 64 | 132 |
| 600 x 1000 | 50 | 8 | 74 | 126 |
| 700 x 1500 | 50 | 17 | 137 | 135 |
| 1000 x 1500 | 50 | 32 | 182 | 122 |
| 1000 x 2000 | 50 | 45 | 257 | 132 |
| 1200 x2000 | 50 | 63 | 297 | 126 |
| 1350 x 2500 | 50 | 102 | 427 | 130 |
| 1500 x 3000 | 50 | 153 | 579 | 132 |
| 1700 x 3000 | 50 | 191 | 639 | 128 |
| 2000 x 3500 | 50 | 308 | 875 | 128 |
| 2500 x 4000 | 50 | 663 | 1381 | 137 |
| 2500 x5500 | 50 | 943 | 2019 | 148 |
| 3300 x 4500 | 50 | 1175 | 1884 | 130 |
| 3300 x 6500 | 50 | 1814 | 3015 | 146 |
| 3300 x 10600 | 50 | 3067 | 5257 | 158 |
| 4500 x 9000 | 50 | 4752 | 5747 | 146 |
| 4500 x 12000 | 50 | 6473 | 7984 | 154 |
| Pneumatic 80 fender size and performance requirements | ||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection (R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10% kN |
Reference value kPa |
||
| 500 x 1000 | 80 | 8 | 85 | 174 |
| 600 x 1000 | 80 | 11 | 98 | 166 |
| 700 x 1500 | 80 | 24 | 180 | 177 |
| 1000 x 1500 | 80 | 45 | 239 | 160 |
| 1000 x2000 | 80 | 63 | 338 | 174 |
| 1200 x 2000 | 80 | 88 | 390 | 166 |
| 1350 x 2500 | 80 | 142 | 561 | 170 |
| 1500 x 3000 | 80 | 214 | 761 | 174 |
| 1700 x 3000 | 80 | 267 | 840 | 168 |
| 2000 x 3500 | 80 | 430 | 1150 | 168 |
| 2500 x 4000 | 80 | 925 | 1815 | 180 |
| 2500 x 5500 | 80 | 1317 | 2653 | 195 |
| 3300 x 4500 | 80 | 1640 | 2476 | 171 |
| 3300 x 6500 | 80 | 2532 | 3961 | 191 |
| 3300 x 10600 | 80 | 4281 | 6907 | 208 |
| 4500 x 9000 | 80 | 6633 | 7551 | 192 |
| 4500 x 12000 | 80 | 9037 | 10490 | 202 |
