Home ProductsPneumatic Rubber Fender

Iso 17357 Certificated Pneumatic Rubber Fender 50kpa 2555m

China Qingdao Henger Shipping Supply Co., Ltd certification
China Qingdao Henger Shipping Supply Co., Ltd certification
we worked with Henger for 4 years, the fenders are high quality without any problems. their salesmen are all very kind and professional.

—— Paulo Anderson

Henger is the best supplier I've ever met in China for pneumatic floating fenders and foam fenders. their fenders are really real-stuff products without cutting workmanship and materials.

—— Tim

Henger has very strong R&D capability, which customized many high-tech products for our institution. wish to have better cooperation with Henger in wider marinetime area.

—— Dr. Kamran Khan

I'm Online Chat Now

Iso 17357 Certificated Pneumatic Rubber Fender 50kpa 2555m

Iso 17357 Certificated Pneumatic Rubber Fender 50kpa 2555m
Iso 17357 Certificated Pneumatic Rubber Fender 50kpa 2555m Iso 17357 Certificated Pneumatic Rubber Fender 50kpa 2555m Iso 17357 Certificated Pneumatic Rubber Fender 50kpa 2555m Iso 17357 Certificated Pneumatic Rubber Fender 50kpa 2555m

Large Image :  Iso 17357 Certificated Pneumatic Rubber Fender 50kpa 2555m

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: International Quality Management System ISO9001:2000 , Chinese Classification Society ( CCS ) , Det Norske Veritas ( DNV ) , British Lowe ( LR )
Model Number: Can Be Customized According to Customer Needs ,Minimum diameter 500mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: 5000-10000 USD
Packaging Details: nude packing or customized
Delivery Time: 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: Factory direct supply
Detailed Product Description
Material: Natural Rubber Color: Black
Protective Sleeve: Tyre-chain Net, Rubber Tube For Option Lifespan: 6-10 Years
IP: 50KPa/80KPa (0.05MPa/0.08MPa) Warranty: 12 Months/24 Months
Application: Docking Anti-collision Diameter: 0.5-6m
Length: 1-10m Key Word: Rubber Fender Price
High Light:

2555m Pneumatic Rubber Fender

,

Pneumatic Rubber Fender 0.05MPa

,

Iso Pneumatic Docking Fender

Iso 17357 Certificated 50kpa 2555m High Quality Pneumatic Rubber Fender

QINGDAO HENGER Pneumatic Rubber Fender Features

1. Price advantage
Qingdao Henger uses imported duty-free rubber as the main material, and the auxiliary materials are purchased from suppliers who have worked closely for many years, thus greatly reducing the cost of raw materials and logistics. The company is equipped with complete production equipment, so as to avoid the extra cost of going out for processing. At the same time, the perfect management system and rich production experience greatly reduce unnecessary man-hours and waste of materials in production, so as to achieve the same quality, high quality fenders, the same price, good fender quality, and high cost performance are Henger products The advantages.


2. Quality advantage
Qingdao Henger has raw material testing equipment, production equipment and finished product inspection equipment in the industry. It was the first to pass the ISO 9001: 2000 international quality management system certification, and the products are sold all over the world. The excellent quality has been verified by many buyers.



3. Technical advantages
Qingdao Henger Inflatable Rubber Fender introduces the new Japanese Yokohama company's inflatable fender production technology, and hires experienced engineers at home and abroad for training and guidance all year round. "Floating inflatable rubber fender" is produced according to international quality standards.



Ship Tonnage

(DWT)

Assumed Boarding Speed

(M/S)

Effective Kinetic Energy

(KN.M)

Fender Size D*L

(m)

200000 0.15 1890 3.3 x 6.5
150000 0.15 1417 3.3 x 6.5
100000 0.15 945 3.0 x 5.0
85000 0.17 1031 3.0 x 6.0
50000 0.18 680 2.5 x 5.5
40000 0.20 672 2.5 x 5.5
30000 0.22 609 2.5 x 4.0
20000 0.25 525 2.5 x 4.0
15000 0.26 425 2.5 x 4.0
10000 0.28 329 2.0 x 4.0
5000 0.33 228 2.0 x 3.5
For Large-tonnage Ship



Pneumatic 50 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection(R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10 % kN

Reference value

kPa

500 x 1000 50 6 64 132
600 x 1000 50 8 74 126
700 x 1500 50 17 137 135
1000 x 1500 50 32 182 122
1000 x 2000 50 45 257 132
1200 x2000 50 63 297 126
1350 x 2500 50 102 427 130
1500 x 3000 50 153 579 132
1700 x 3000 50 191 639 128
2000 x 3500 50 308 875 128
2500 x 4000 50 663 1381 137
2500 x5500 50 943 2019 148
3300 x 4500 50 1175 1884 130
3300 x 6500 50 1814 3015 146
3300 x 10600 50 3067 5257 158
4500 x 9000 50 4752 5747 146
4500 x 12000 50 6473 7984 154

Pneumatic Rubber Fender Application

 Product Applications

The are two typical installation type: ship to ship operation and ship to dock operation.

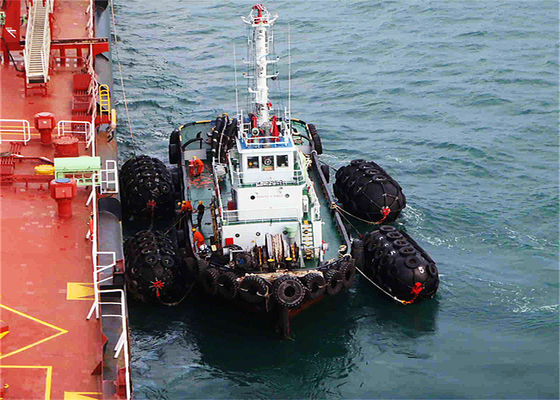

a. ship to ship operation

Generally speaking, two contact points are enough for the light duty ship to ship operation. But 1 or 2 extra pneumatic rubber fender should be used as the primary fender to absorb the berthing energy for the heavy duty ship to ship operation, and keep proper stand-off distance between two ships. Meanwhile, two or more small-size fenders can be hung on the ship hull as the secondary fender.

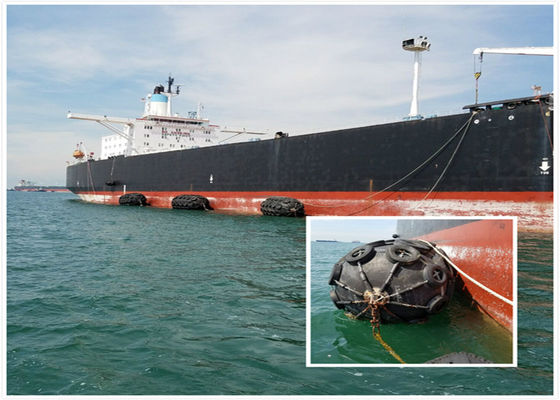

b. ship to dock operation

Pneumatic fenders are often used for the ship to quay operation because of its excellent performance. The pneumatic fenders are anchored with quay by the guy chain and shackles. Meanwhile, the pneumatic fender can be floated on the water surface depend on the change of tide.

Iso 17357 Certificated Pneumatic Rubber Fender 50kpa 2555m 0Iso 17357 Certificated Pneumatic Rubber Fender 50kpa 2555m 1

Pneumatic Rubber Fender storage

1. When the Pneumatic rubber fender is not used for a long time, it should be washed and dried, filled with appropriate compressed air, placed in a dry, cool, ventilated place.Inventory temperature is maintained at -15 ℃ -40 ℃ .

2 .The place where the fender is stored should be kept away from the heat source.

3 .Fenders shall not be in contact with acids, alkalis, greases and organic solvents.

4 .When the fenders are not in use, they must not be stacked and should not be stacked on the ba. In order to better extend the service life of pneumatic rubber fenders, it is recommended that you store them in strict accordance with the above recommendations.

Iso 17357 Certificated Pneumatic Rubber Fender 50kpa 2555m 2
