Marine BV Certificate STS Operation Yokohama Fender

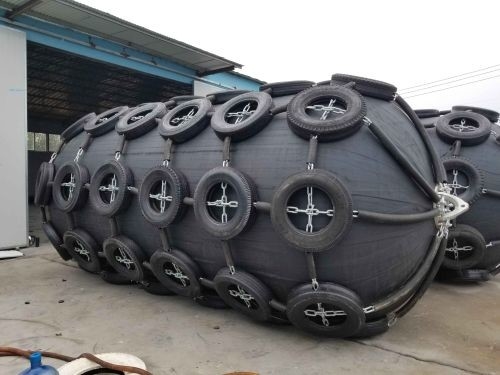

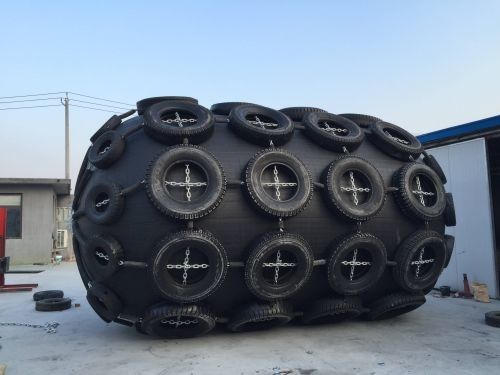

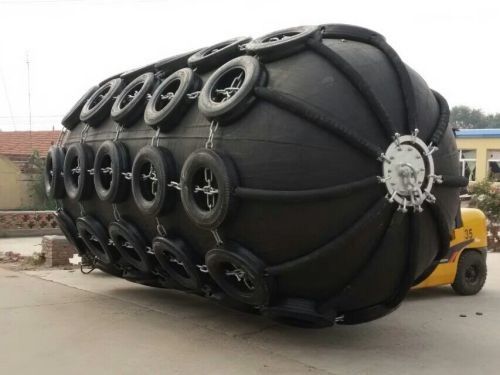

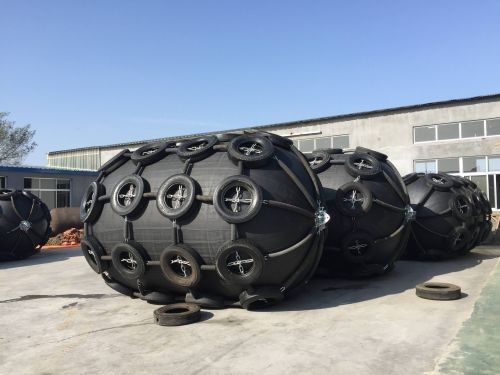

Yokohama Fender Introduction
Yokohama Fender is a leading anti-collision device for marine application in the world today and has become an idea ship protection medium used extensively by large tankers, LPG vessels, ocean platforms, large docks, harbors and wharves.

Yokohama Fender Parameter
| Pneumatic 50 fender size and performance requirements |
|
Nominal size diameter x length
mm
|
Initial internal pressure
kPa
|
Guaranteed energy absorption (GEA) |
Reaction force at GEA deflection(R) |
Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ |
Tolerance±10 % kN |
Reference value
kPa
|
| 500 x 1000 |
50 |
6 |
64 |
132 |
| 600 x 1000 |
50 |
8 |
74 |
126 |
| 700 x 1500 |
50 |
17 |
137 |
135 |
| 1000 x 1500 |
50 |
32 |
182 |
122 |
| 1000 x 2000 |
50 |
45 |
257 |
132 |
| 1200 x2000 |
50 |
63 |
297 |
126 |
| 1350 x 2500 |
50 |
102 |
427 |
130 |
| 1500 x 3000 |
50 |
153 |
579 |
132 |
| 1700 x 3000 |
50 |
191 |
639 |
128 |
| 2000 x 3500 |
50 |
308 |
875 |
128 |
| 2500 x 4000 |
50 |
663 |
1381 |
137 |
| 2500 x5500 |
50 |
943 |
2019 |
148 |
| 3300 x 4500 |
50 |
1175 |
1884 |
130 |
| 3300 x 6500 |
50 |
1814 |
3015 |
146 |
| 3300 x 10600 |
50 |
3067 |
5257 |
158 |
| 4500 x 9000 |
50 |
4752 |
5747 |
146 |
| 4500 x 12000 |
50 |
6473 |
7984 |
154 |
| Pneumatic 80 fender size and performance requirements |
|
Nominal size diameter x length
mm
|
Initial internal pressure
kPa
|
Guaranteed energy absorption (GEA) |
Reaction force at GEA deflection (R) |
Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ |
Tolerance±10% kN |
Reference value
kPa
|
| 500 x 1000 |
80 |
8 |
85 |
174 |
| 600 x 1000 |
80 |
11 |
98 |
166 |
| 700 x 1500 |
80 |
24 |
180 |
177 |
| 1000 x 1500 |
80 |
45 |
239 |
160 |
| 1000 x2000 |
80 |
63 |
338 |
174 |
| 1200 x 2000 |
80 |
88 |
390 |
166 |
| 1350 x 2500 |
80 |
142 |
561 |
170 |
| 1500 x 3000 |
80 |
214 |
761 |
174 |
| 1700 x 3000 |
80 |
267 |
840 |
168 |
| 2000 x 3500 |
80 |
430 |
1150 |
168 |
| 2500 x 4000 |
80 |
925 |
1815 |
180 |
| 2500 x 5500 |
80 |
1317 |
2653 |
195 |
| 3300 x 4500 |
80 |
1640 |
2476 |
171 |
| 3300 x 6500 |
80 |
2532 |
3961 |
191 |
| 3300 x 10600 |
80 |
4281 |
6907 |
208 |
| 4500 x 9000 |
80 |
6633 |
7551 |
192 |
| 4500 x 12000 |
80 |
9037 |
10490 |
202 |
Yokohama Fender Application
1. Oil and gas tankers
2. Fast ferries and aluminum vessels
3. Temporary and permanent installations
4. Rapid response and emergencies
5. In ports with extreme tidal variations
6. For ship-to-ship lightering operations
7. For all navy vessels due to low hull pressure and the advantage of a proportional increase of reaction force and energy absorption

Yokohama Fender Features
1. Guaranteed energy absorption
2. Chain tyre net and sling type
3. Thick skin construction
4. Good angular performance
5. Less surface pressure onto the side wall of ships. (The capability of accepting surface pressure of the fender is up to 14 ton/m2).
6. No reduction on the performance of compression when inclined.
7. Suitable for areas with large or small tides.
8. Suitable in cold weather because the compressed air as buffering medium.
9. Especially in mooring of large scale ships in sea docks and lightering.
10. Maintains large clearances between hull and structure

Yokohama Fender Transportation
Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.

Yokohama Fender Storage
1. When the Pneumatic rubber fender is not used for a long time, it should be washed and dried, filled with appropriate compressed air, placed in a dry, cool, ventilated place.Inventory temperature is maintained at -15 ℃ -40 ℃ .
2 .The place where the fender is stored should be kept away from the heat source.
3 .Fenders shall not be in contact with acids, alkalis, greases and organic solvents.
4 .When the fenders are not in use, they must not be stacked and should not be stacked on the ba. In order to better extend the service life of pneumatic rubber fenders, it is recommended that you store them in strict accordance with the above recommendations.

Choose our advantages:
- We have our own production workshop, the production time is decided by ourselves, so we can freely adjust the delivery time.
- As a factory, we can communicate with me directly on production technology issues, which improves the communication efficiency.
We are a manufacturer, no traders make the difference, and the price advantage is obvious.
If you have requirements please send the details:
- Product type and quantity
- Product size
- FOB or CIF is required, where is the destination port.
What I will offer you:
- The most competitive price
- The most active and professional service
- The most timely reply
