Product Details:
Payment & Shipping Terms:
|
| Certification: | CCS BV Certification ISO17357 ISO9001 | Color: | Black/As Requirements |
|---|---|---|---|
| Material: | Natural Rubber | Application: | STD,STS,Ships And Boats,Marine/quay/dock/boat |
| Name: | Pneumatic Rubber Fender | Warranty Period: | 24 Months |
| Packing: | Nude Packing/As Requirement | Diameter: | 0.5~4.5m |
| High Light: | Marine Yokohama Pneumatic Rubber Fender,Buoyancy Pneumatic Rubber Fender,Natural Rubber Yokohama Pneumatic Fender |
||

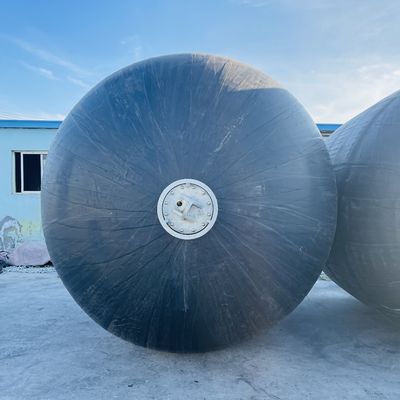

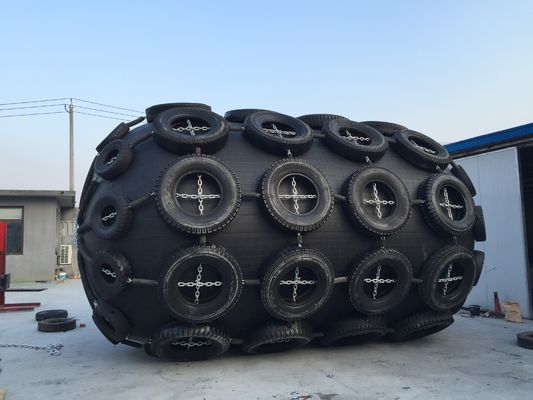

What is Pneumatic Rubber Fender?
The "Yokohama Type Pneumatic Rubber Fender" was developed in 1958. Progress in the development of such floating pneumatic rubber fenders is closely related to the progress and development of ship technology, and has to continuously cope with progressively larger oil tankers such as VLCC's, ULCC's, large gas carriers, bulk carriers and floating structures. Floating pneumatic fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships. Since its creation until today, more than millions of fenders have been supplied worldwide both for ship-to-ship and ship-to-dock (STD) operations serving our valuable customers. These fenders play a critical role in the safe operation of ship berthing and mooring
Pneumatic Rubber Fender Features
* Available in a variety of sizes , Diameters ranging from 500 mm to 4500 mm and length ranging from 500 mm to 12000 mm
* Many kinds of color ,Black , Milky white , Warship Level Gray , Orange Red , Blue
* Contructed with an inner rubber layer,reinforcing cord layers and outer rubber layer
* Comprehensively tested for material and hydrostatic pressure irregularities
* Correctly evaluated for angular and durability performance
* Clearly marked with all relevant identification
* Complete with up- to -date certification
Pneumatic rubber fender Parameter
|
Ship Tonnage (DWT) |
Assumed Boarding Speed (M/S) | Effective Kinetic Energy (KNM) |
Fender Size D x L (m) |
| 200000 | 0.15 | 1890 | 3.3 x 6.5 |
| 150000 | 0.15 | 1417 | 3.3 x 6.5 |
| 100000 | 0.15 | 945 | 3.0 x 5.0 |
| 85000 | 0.17 | 1031 | 3.0 x 6.0 |
| 50000 | 0.18 | 680 | 2.5 x 5.5 |
| 40000 | 0.20 | 672 | 2.5 x 5.5 |
| 30000 | 0.22 | 609 | 2.5 x 4.0 |
| 20000 | 0.25 | 525 | 2.5 x 4.0 |
| 15000 | 0.26 | 425 | 2.5 x 4.0 |
| 10000 | 0.28 | 329 | 2.0 x 4.0 |
| 5000 | 0.33 | 228 | 2.0 x 3.5 |
Pneumatic Rubber Fender Application
1. Oil and gas tankers
2. Fast ferries and aluminum vessels
3. Temporary and permanent installations
4. Rapid response and emergencies
5. In ports with extreme tidal variations
6. For ship-to-ship lightering operations
7. For all navy vessels due to low hull pressure and the advantage of a proportional
