Marine Vessel Ship Yokohama Boat Rubber Fender Pneumatic Floating Dock Bumpers

China Qingdao Henger Shipping Supply Co., Ltd certification
China Qingdao Henger Shipping Supply Co., Ltd certification
we worked with Henger for 4 years, the fenders are high quality without any problems. their salesmen are all very kind and professional.

—— Paulo Anderson

Henger is the best supplier I've ever met in China for pneumatic floating fenders and foam fenders. their fenders are really real-stuff products without cutting workmanship and materials.

—— Tim

Henger has very strong R&D capability, which customized many high-tech products for our institution. wish to have better cooperation with Henger in wider marinetime area.

—— Dr. Kamran Khan

I'm Online Chat Now

Marine Vessel Ship Yokohama Boat Rubber Fender Pneumatic Floating Dock Bumpers

Marine Vessel Ship Yokohama Boat Rubber Fender Pneumatic Floating Dock Bumpers
Marine Vessel Ship Yokohama Boat Rubber Fender Pneumatic Floating Dock Bumpers
video play

Large Image :  Marine Vessel Ship Yokohama Boat Rubber Fender Pneumatic Floating Dock Bumpers

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: CCS BV ISO17357
Model Number: 500mm x 1000mm-3300mm x 6500mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: USD 230 TO USD 7000 PER PC
Packaging Details: International General Packaging
Delivery Time: 5-8 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 PC PER WEEK
Detailed Product Description
Product Name: Pneumatic Rubber Fender/Marine Fender/Yokohama Fender Brand: Henger
Material: Natural Rubber Specification: Dia 0.5m-4.5m, L 0.7m-9m/Customized
Certificate: CCS / BV / LR / ISO17357/DNV/SGS Shelf Life: 24 Months
Working Pressure: 50kpa/80kpa Application: Dock,Ship,Ship To Ship
Service Life: 10 Years Production Time: 5-10 Days
Payment Method: L/C, D/A, D/P, T/T, Western Union, Moneygram Accessories: Tyre Sheath/Swivel/Shackle/Chain
Packing: Naked/Pallet Colour: Black/Blue/As Requirements
High Light:

Yokohama Boat Rubber Fender

,

Pneumatic Boat Rubber Fender

,

Pneumatic Floating Dock Bumpers

Marine Vessel Ship Yokohama Pneumatic Rubber Fender Yokohama Type Boat Rubber Fender Pneumatic Floating Dock Bumpers

Product Overview

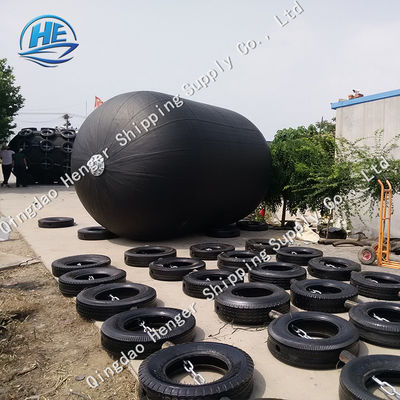

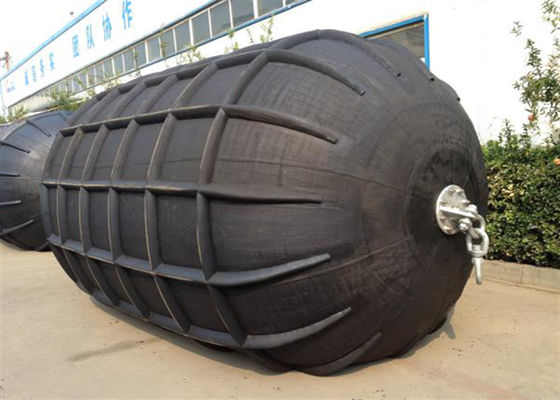

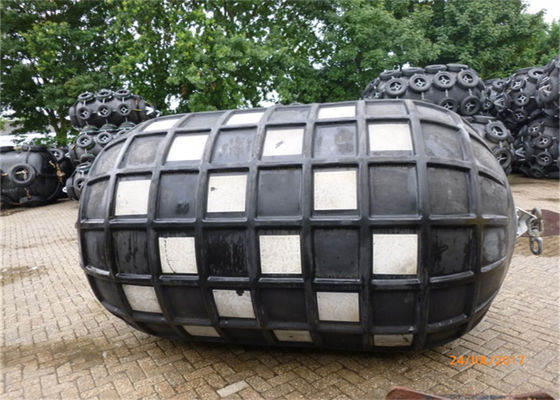

Pneumatic Rubber Fender
The pneumatic fender is also known as the Yokohama fender. Tankers’ Ship-to-ship (STS) operations mostly uses this type of self-floating, long useful life fender. Industry-wide known as pneumatic fenders, but why are they also called Yokohama fenders?

Yokohama was the first company to design such fenders. Hence the name. The traditional method is to find and use dead whales as large fenders for bigger ships. After the World-War II, many turned to find a better, more constant man-made equipment since the usage of dead whales has many downsides to it. Rubber was thought to be a excellent material.

So being the most trusted rubber tire manufacture in Japan at the time, the ‘Yokohama’ company was approached to design up a suitable solution. The first big issue was that making a fender straight-up using rubber would be too costly. Projected costs make it impossible to achieve. The company managed to eventually come up with the idea of using the principles of pneumatic. Pressurised air absorbs energy well enough with a reasonable reaction force. Now, commonly the working pressures of pneumatic fenders use are 50 kPa and 80kPa.

The story of the origin of these fenders is indeed a very interesting development of the industry. Today, these awesome low-cost, low-maintenance fenders are governed by ISO Standard. ISO 17357 consists of the two parts, high pressure and low pressure. Under the general title Ships and marine technology — Floating pneumatic rubber fenders. ISO17357:2014 is the latest version of the standard. It specifies the material, performance, and dimensions of floating pneumatic rubber fenders. Our company's pneumatic fenders are also produced and tested strictly in accordance with ISO17357:2014 standards.

Now the property of pneumatic fenders are low reaction force at low deflection, which made them are the most suitable fender for liquid cargo vessels and defense vessels with sensitive equipment, it also has become an ideal ship protection medium used extensively by large tankers, LPG vessels, ocean platforms, etc.
Marine Vessel Ship Yokohama Boat Rubber Fender Pneumatic Floating Dock Bumpers 0
Product Details

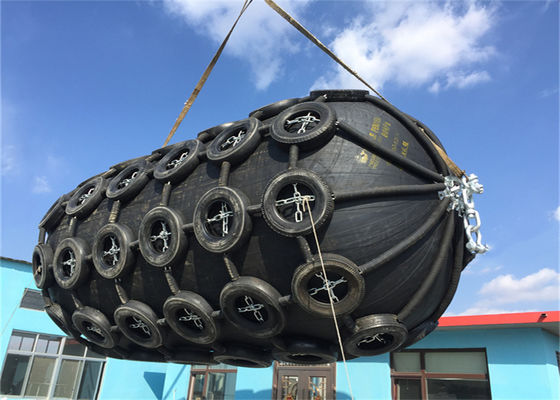

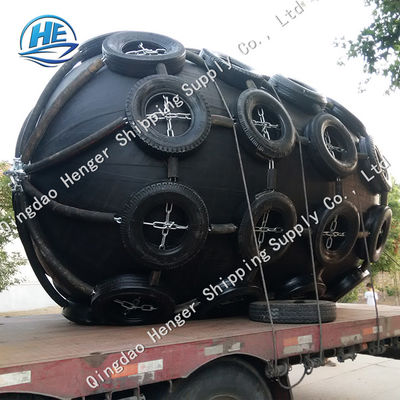

The green part of the chain net can choose whether to install.
The blue part of the tires can choose to be used car tires or aircraft tires.
Marine Vessel Ship Yokohama Boat Rubber Fender Pneumatic Floating Dock Bumpers 1
Marine Vessel Ship Yokohama Boat Rubber Fender Pneumatic Floating Dock Bumpers 2
Marine Vessel Ship Yokohama Boat Rubber Fender Pneumatic Floating Dock Bumpers 3
Specifications(ISO17357-2014 Standard)
Normal Size
Inner Pressure:50Kpa,60%deflection
Inner Pressure:80Kpa,60%deflection
(mm)
(mm)
(KN)
(KN.M)
(Kpa)
(KN)
(KN.M)
(Kpa)
Diameter
Length
Reaction Force
Energy Absorption
Hull Absorption
Reaction Force
Energy Absorption
Hull Absorption
500
1000
64
6
132
85
8
174
600
1000
74
8
126
98
11
166
700
1500
137
17
135
180
24
177
1000
1500
182
32
122
239
45
160
1000
2000
257
45
132
338
63
174
1200
2000
297
63
126
390
88
166
1350
2500
427
102
130
561
142
170
1500
3000
579
152
132
731
214
174
1700
3000
639
191
128
840
267
168
2000
3500
875
308
128
1150
430
168
2500
4000
1381
663
137
1815
925
180
2500
5500
2019
943
148
2653
1317
195
3300
4500
1884
1175
130
2476
1640
171
3300
6500
3015
1814
146
3961
2532
191
3300
10600
5121
3090
171
6612
4294
220
4500
7000
4660
3816
186
5866
4945
233
4500
9000
5747
4752
146
7551
6633
192
4500
12000
7984
6473
154
10490
9037
202



Marine Vessel Ship Yokohama Boat Rubber Fender Pneumatic Floating Dock Bumpers 4Marine Vessel Ship Yokohama Boat Rubber Fender Pneumatic Floating Dock Bumpers 5



FAQ

1."I have ships but don't know how to choose the size of dock bumpers ,can you help me?"
Answer: Don't worry .We have more than 20 years' experience. Pls tell me information of your ship, we can suggest suitable dock bumpers size and quantity for you.


2."I want to try your dock bumpers, but I never use it and don't know how to use ,can you help me?"
Answer: Don't worry. We will send instruction book together with dock bumpers.


3."What's the MOQ of your dock bumpers?"
Answer: The MOQ of our dock bumpers is 1PC.


4."What's the lifespan of your dock bumpers?"
Answer: Designed lifespan of our dock bumpers is 6 to 10 years


5."What's the warranty period of your dock bumpers?"
Answer: The warranty period of our dock bumpers is 2 years. we will responsible for the repairment or replace the new dock bumpers for you if it proved to be our quality problem.



6."What kind of certificate can you provide for dock bumpers?"
Answer: CCS, SGS etc. certificate is available for our dock bumpers.





Our Services

1.One-to-one VIP service.

2.Lifelong after-sale service.

3.Professional suggestions for suitable dock bumper size and quantity.

4.Teach customers to use the dock bumper on site .

5.Any questions about dock bumpers will be replied within 24 hours.
