Qingdao Henger Shipping Supply Co., Ltd
Home ProductsPneumatic Rubber Fender

Ship Protection 60% Nutural Rubber Pneumatic Marine Fender 2x3.5m 50Kpa

China Qingdao Henger Shipping Supply Co., Ltd certification
China Qingdao Henger Shipping Supply Co., Ltd certification
we worked with Henger for 4 years, the fenders are high quality without any problems. their salesmen are all very kind and professional.

—— Paulo Anderson

Henger is the best supplier I've ever met in China for pneumatic floating fenders and foam fenders. their fenders are really real-stuff products without cutting workmanship and materials.

—— Tim

Henger has very strong R&D capability, which customized many high-tech products for our institution. wish to have better cooperation with Henger in wider marinetime area.

—— Dr. Kamran Khan

I'm Online Chat Now

Ship Protection 60% Nutural Rubber Pneumatic Marine Fender 2x3.5m 50Kpa

Ship Protection 60% Nutural Rubber Pneumatic Marine Fender 2x3.5m 50Kpa
Ship Protection 60% Nutural Rubber Pneumatic Marine Fender 2x3.5m 50Kpa Ship Protection 60% Nutural Rubber Pneumatic Marine Fender 2x3.5m 50Kpa Ship Protection 60% Nutural Rubber Pneumatic Marine Fender 2x3.5m 50Kpa Ship Protection 60% Nutural Rubber Pneumatic Marine Fender 2x3.5m 50Kpa Ship Protection 60% Nutural Rubber Pneumatic Marine Fender 2x3.5m 50Kpa

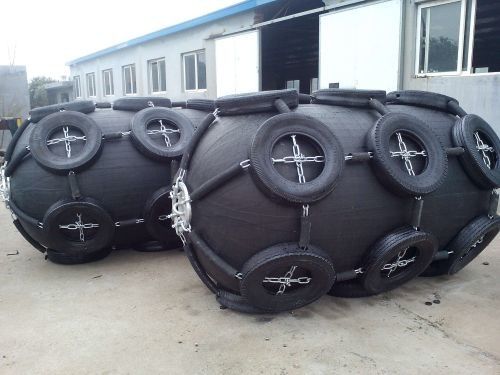

Large Image :  Ship Protection 60% Nutural Rubber Pneumatic Marine Fender 2x3.5m 50Kpa

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: CCS, ABS, LRS, BV, GL, DNV, NK
Model Number: HE-HPF
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: USD 150-5000 PER PIECE
Packaging Details: NUDE/PALLET
Delivery Time: 7-15 WORKING DAYS
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10PCS PER WEEK
Detailed Product Description
Product Name: Pneumatic Rubber Fender/Marine Fender/Yokohama Fender Material: Natural Rubber
Size: 0.5*1m~4.5*9m Certification: CCS/BV/ABS/ISO17357/ISO9001
Color: Black/white Application: Berthing/mooring/STS
Warranty: 24 Months Using Life: 10years
Working Pressure: 50kPa/80kPa Payment: D/A, L/C, D/P, T/T, Western Union, MoneyGram
High Light:

60% Natural Rubber Pneumatic Marine Fender

,

Ship Protection Pneumatic Marine Fender

,

2x3.5m Pneumatic Rubber Fender

2x3.5m 50Kpa Ship Protection 60% Nutural Rubber Pneumtiac Fender

Introduction

Pneumatic rubber fender is one kind of ship berthing, cushioning and protection equipment, which uses compressed air as the buffer medium to prevent collision when the ship is berthing. The pneumatic rubber fender is more economical and durable than the ordinary rubber fender, so it is more popular and widely used.

Pneumatic Rubber Fender is a leading anti-collision device for marine application in the world today and has become an idea ship protection medium used extensively by large tankers, LPG vessels, ocean platforms, large docks, harbors and wharves.

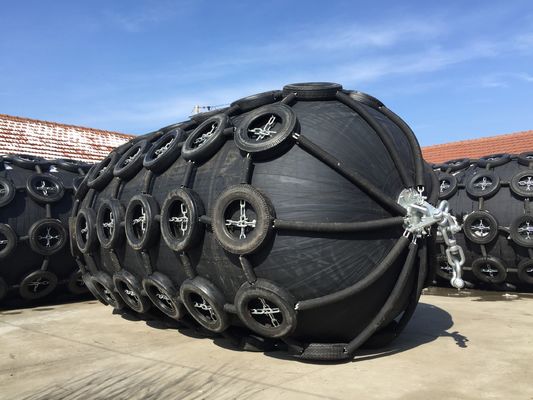

Ship Protection 60% Nutural Rubber Pneumatic Marine Fender 2x3.5m 50Kpa 0



Application

1. large crude oil carrier, VLCC

2. container vessel

3. offshore sea task platform

4. large shipyard and dock

5. large ship and cruise ship

6. army harbor dock

7. large bridge pier



Ship Protection 60% Nutural Rubber Pneumatic Marine Fender 2x3.5m 50Kpa 1



Parameter



Pneumatic 50 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection(R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10 % kN

Reference value

kPa

500 x 1000 50 6 64 132
600 x 1000 50 8 74 126
700 x 1500 50 17 137 135
1000 x 1500 50 32 182 122
1000 x 2000 50 45 257 132
1200 x2000 50 63 297 126
1350 x 2500 50 102 427 130
1500 x 3000 50 153 579 132
1700 x 3000 50 191 639 128
2000 x 3500 50 308 875 128
2500 x 4000 50 663 1381 137
2500 x5500 50 943 2019 148
3300 x 4500 50 1175 1884 130
3300 x 6500 50 1814 3015 146
3300 x 10600 50 3067 5257 158
4500 x 9000 50 4752 5747 146
4500 x 12000 50 6473 7984 154



Design



Unique Design of Henger Pneumatic Rubber Fender



Active-Protecting Safety Valve , All fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.

It is a patented design which could avoid explosion of fenders from collision and air inflation.



Henger Flange is casting of corrosion-resistant iron with galvanized anti-corrosive coating, which will strongly prolong the fender quality and service life. The strength of Henger casting flange improves 40% higher than traditional type.

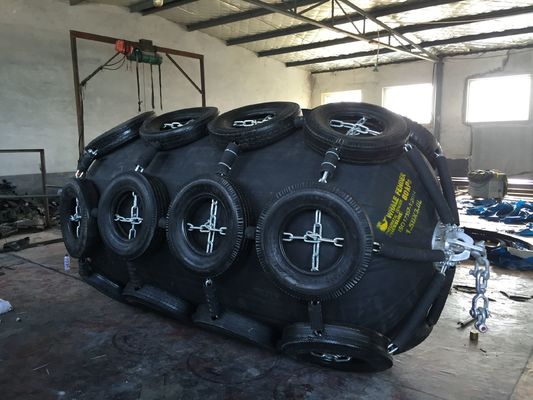

Ship Protection 60% Nutural Rubber Pneumatic Marine Fender 2x3.5m 50Kpa 2



Features

  • Meet the requirements of ISO17357:2002
  • 2. More secure and reliable
  • 3. Smaller parking force
  • 4. Adapt to the tide
  • 5 Low maintenance costs
  • 6. Low reactivity and Hull pressure
  • 7. The most cost-effective system
  • 8. Advantages of reducing shear force
  • 9. Simple installation and low cost
  • 10. There are many optional accessories.

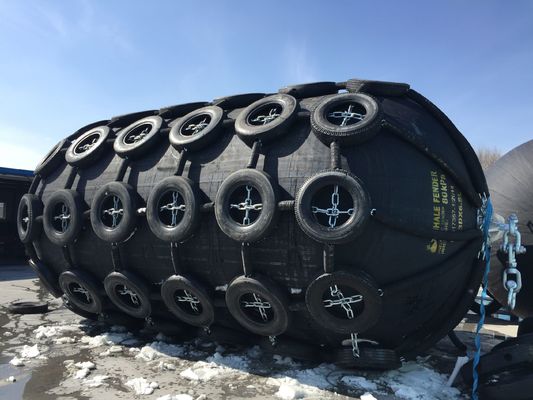

Ship Protection 60% Nutural Rubber Pneumatic Marine Fender 2x3.5m 50Kpa 3

Storage

1. When the Pneumatic rubber fender is not used for a long time, it should be washed and dried, filled with appropriate compressed air, placed in a dry, cool, ventilated place.Inventory temperature is maintained at -15 ℃ -40 ℃ .

2 .The place where the fender is stored should be kept away from the heat source.

3 .Fenders shall not be in contact with acids, alkalis, greases and organic solvents.

4 .When the fenders are not in use, they must not be stacked and should not be stacked on the ba. In order to better extend the service life of pneumatic rubber fenders, it is recommended that you store them in strict accordance with the above recommendations.



Ship Protection 60% Nutural Rubber Pneumatic Marine Fender 2x3.5m 50Kpa 4



Choose our advantages:





  • We have our own production workshop, the production time is decided by ourselves, so we can freely adjust the delivery time.
  • As a factory, we can communicate with me directly on production technology issues, which improves the communication efficiency.

We are a manufacturer, no traders make the difference, and the price advantage is obvious.



If you have requirements please send the details:



  • Product type and quantity
  • Product size
  • FOB or CIF is required, where is the destination port.



What I will offer you:

  • The most competitive price
  • The most active and professional service
  • The most timely reply
