| MOQ: | 1PC |
| Price: | USD 150-5000 PER PIECE |
| Standard Packaging: | NUDE/PALLET |
| Delivery Period: | 7-15 WORKING DAYS |
| Payment Method: | D/A, L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 10PCS PER WEEK |

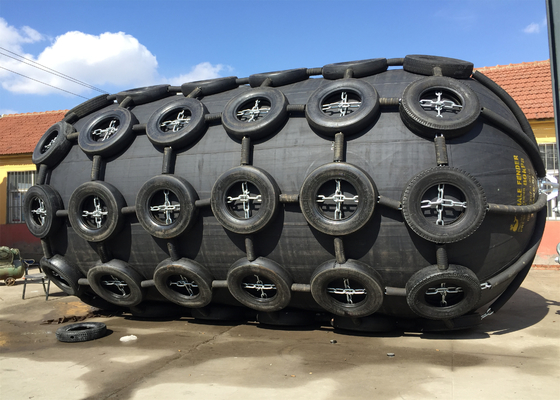

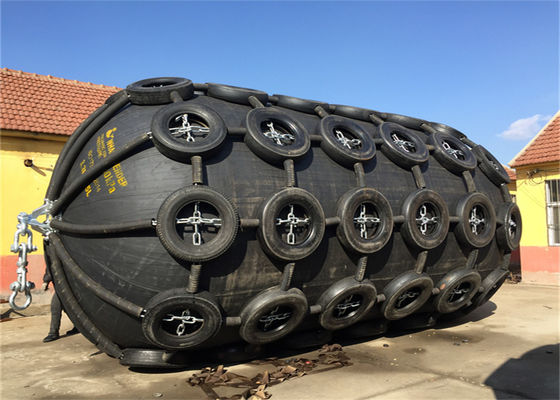

3.3X6.5m STS 80Kpa Black Floating Marine Rubber Yokohama Fender
Pneumatic rubber fender is one kind of ship berthing, cushioning and protection equipment, which uses compressed air as the buffer medium to prevent collision when the ship is berthing. The pneumatic rubber fender is more economical and durable than the ordinary rubber fender, so it is more popular and widely used.
Pneumatic Rubber Fender is a leading anti-collision device for marine application in the world today and has become an idea ship protection medium used extensively by large tankers, LPG vessels, ocean platforms, large docks, harbors and wharves.
| Pneumatic 50 fender size and performance requirements | ||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection(R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10 % kN |
Reference value kPa |
||
| 500 x 1000 | 50 | 6 | 64 | 132 |
| 600 x 1000 | 50 | 8 | 74 | 126 |
| 700 x 1500 | 50 | 17 | 137 | 135 |
| 1000 x 1500 | 50 | 32 | 182 | 122 |
| 1000 x 2000 | 50 | 45 | 257 | 132 |
| 1200 x2000 | 50 | 63 | 297 | 126 |
| 1350 x 2500 | 50 | 102 | 427 | 130 |
| 1500 x 3000 | 50 | 153 | 579 | 132 |
| 1700 x 3000 | 50 | 191 | 639 | 128 |
| 2000 x 3500 | 50 | 308 | 875 | 128 |
| 2500 x 4000 | 50 | 663 | 1381 | 137 |
| 2500 x5500 | 50 | 943 | 2019 | 148 |
| 3300 x 4500 | 50 | 1175 | 1884 | 130 |
| 3300 x 6500 | 50 | 1814 | 3015 | 146 |
| 3300 x 10600 | 50 | 3067 | 5257 | 158 |
| 4500 x 9000 | 50 | 4752 | 5747 | 146 |
| 4500 x 12000 | 50 | 6473 | 7984 | 154 |
| Pneumatic 80 fender size and performance requirements | ||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection (R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10% kN |
Reference value kPa |
||
| 500 x 1000 | 80 | 8 | 85 | 174 |
| 600 x 1000 | 80 | 11 | 98 | 166 |
| 700 x 1500 | 80 | 24 | 180 | 177 |
| 1000 x 1500 | 80 | 45 | 239 | 160 |
| 1000 x2000 | 80 | 63 | 338 | 174 |
| 1200 x 2000 | 80 | 88 | 390 | 166 |
| 1350 x 2500 | 80 | 142 | 561 | 170 |
| 1500 x 3000 | 80 | 214 | 761 | 174 |
| 1700 x 3000 | 80 | 267 | 840 | 168 |
| 2000 x 3500 | 80 | 430 | 1150 | 168 |
| 2500 x 4000 | 80 | 925 | 1815 | 180 |
| 2500 x 5500 | 80 | 1317 | 2653 | 195 |
| 3300 x 4500 | 80 | 1640 | 2476 | 171 |
| 3300 x 6500 | 80 | 2532 | 3961 | 191 |
| 3300 x 10600 | 80 | 4281 | 6907 | 208 |
| 4500 x 9000 | 80 | 6633 | 7551 | 192 |
| 4500 x 12000 | 80 | 9037 | 10490 | 202 |
* Available in a variety of sizes , Diameters ranging from 500 mm to 4500 mm and length ranging from 500 mm to 12000 mm
* Many kinds of color ,Black , Milky white , Warship Level Gray , Orange Red , Blue
* Contructed with an inner rubber layer,reinforcing cord layers and outer rubber layer
* Comprehensively tested for material and hydrostatic pressure irregularities
* Correctly evaluated for angular and durability performance
* Clearly marked with all relevant identification
* Complete with up- to -date certification
Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
1. Install the inflatable rod
2. Remove the valve core with the wrench
3. Link up quick connector inflation, inflation pressure 0.05-0.08mpa, recommended pressure 0.05mpa.
4. pressure by gauge
1. When the Pneumatic rubber fender is not used for a long time, it should be washed and dried, filled with appropriate compressed air, placed in a dry, cool, ventilated place.Inventory temperature is maintained at -15 ℃ -40 ℃ .
2 .The place where the fender is stored should be kept away from the heat source.
3 .Fenders shall not be in contact with acids, alkalis, greases and organic solvents.
4 .When the fenders are not in use, they must not be stacked and should not be stacked on the ba. In order to better extend the service life of pneumatic rubber fenders, it is recommended that you store them in strict accordance with the above recommendations.
Our Payment Terms:
We can accept T/T 30% In Advance and 70% T/T Before Shipment.
We can accept a prepayment of 30% for the first cooperation. In the second cooperation, I can apply for a better payment term from the boss.
About the quality:
1. With ISO17357 DNV - GL inspection, CCS inspection (Rubber Material Testing, Product Size Testing, Air Tightness Testing, Pressure Testing)
2. The factory quality inspection report issued by Henger, and if the customer needs it, a video inspection certificate can be issued when the product quality inspection is performed before the product leaves the factory. On the premise that the buyer bears the cost, a third-party testing agency can be invited to conduct product testing.
About the production process:
1. After the fender is produced, it will stand still for 48 hours in strict accordance with the requirements to check the product quality.
2. Before leaving the factory, each product will be strictly tested for air tightness, and a dedicated technician will use soapy water to detect air leakage. Once there is a quality problem, it is absolutely not allowed to leave the factory and sell it.
3.There will be specialized technicians to test the inflation pressure of each product to ensure that the product passes 100%.
4. The gas nozzle can be replaced by customers. The fender can be used for a long time, and the valve core may be aging. Customers can replace it by themselves.Prevent problems due to aging
About service:
1. In the future, I will be responsible for the business docking of your company, and I will serve the whole process by myself to reduce communication time.
2. I will add you in our company's VIP customer list, and we will deal with your business as the focus in the first time.
To sum up:
Based on the above three points, we believe that our products are fully in line with the market positioning at this price. Both the quality of the products and our services are among the top in the industry. We are committed to building a professional technical team and service team. Therefore, we will do our best in product quality processing and sales service attitude.
