Type Marine Floating Pneumatic Fender The pneumatic fender or inflatable rubber fender or Yokohama fender compressed air is used as a buffer medium to absorb the impact energy of the ship, so that the ship has more flexibility and flexibility when docking, so as to prevent The impact of collisions ...
The pneumatic fender or inflatable rubber fender or Yokohama fender compressed air is used as a buffer medium to absorb the impact energy of the ship, so that the ship has more flexibility and flexibility when docking, so as to prevent The impact of collisions and collisions
Protect ship dock rubber balloon
About us
Inflatable rubber fender (by ball) is a marine anti-collision product made of compressed air. Compressed air is mainly used as the buffer medium to absorb the impact energy of the ship, making the ship more flexible and soft when docking, so as to achieve the effect of collision and collision avoidance. Yokohama type ball is a kind of sheath type ball. Usually aircraft tires or engineering tires are used to wrap the ball. Both ends are equipped with shoulder straps, which are widely used for ship-to-ship transfer operations and ship berthing operations. Wait. The size is: D0.5m x L1.0m ~ D3.3m x L6.5m. Inflatable fenders (by ball) are produced in strict accordance with ISO17357-2002 and GB/T 21482-2002 international quality standards, and their products are exported to all over the world.
"Yokohama Pneumatic Inflatable Rubber Fender " progress in the development of such floating pneumatic rubber fenders is closely related to the progress and development of ship technology, and has to continuously cope with progressively larger oil tankers such as VLCC's, ULCC's, large gas carriers, bulk carriers and floating structures.
Floating pneumatic fenders are used world wide for

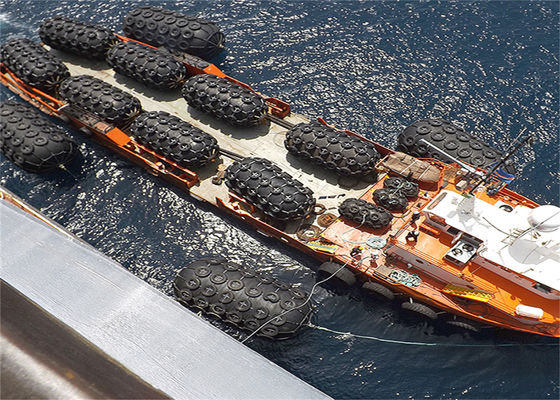

ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships.
1. Outer glue:
The rubber layer covering the outside of the ball is used to protect the frame material and inner rubber of the ball from damage or abrasion by external forces. Main features: high strength, wear resistance and tear resistance.
2. Nylon cord reinforcement layer:
The reinforcement layer is composed of a layer of nylon cords, which maintains the air pressure inside the ball, and has the advantages of non-deformation, high resilience, and high strength.
3. Inner glue:
The rubber layer on the inner wall of the ball is used to prevent gas leakage and maintain the pressure of the ball.
4. End flange:
The metal parts at both ends of the ball can be installed with inflation valve and safety valve
Model Selection Of Pneumatic Rubber Fender For Large-tonnage Ship
|
Ship Tonnage (DWT) |
Assumed Boarding Speed (M/S) | Effective Kinetic Energy (KNM) |
Fender Size D x L (m) |
|
| 200000 | 0.15 | 1890 | 3.3 x 6.5 | |
| 150000 | 0.15 | 1417 | 3.3 x 6.5 | |
| 100000 | 0.15 | 945 | 3.0 x 5.0 | |
| 85000 | 0.17 | 1031 | 3.0 x 6.0 | |
| 50000 | 0.18 | 680 | 2.5 x 5.5 | |
| 40000 | 0.20 | 672 | 2.5 x 5.5 | |
| 30000 | 0.22 | 609 | 2.5 x 4.0 | |
| 20000 | 0.25 | 525 | 2.5 x 4.0 | |
| 15000 | 0.26 | 425 | 2.5 x 4.0 | |
| 10000 | 0.28 | 329 | 2.0 x 4.0 | |
| 5000 | 0.33 | 228 | 2.0 x 3.5 |
1. Technical
Qingdao Henger Inflatable Rubber Fender introduces the new Japanese Yokohama company's inflatable fender production technology, and hires experienced engineers at home and abroad for training and guidance all year round. "Floating inflatable rubber fender" is produced according to international quality standards.
2. Production
Qingdao Henger has accumulated 20 years of professional rubber production experience. It is an excellent company in the region, with strong technology and capital, and a stable quality marine fender (ball bearing) supplier.
3. Quality
Qingdao Henger has raw material testing equipment, production equipment and finished product inspection equipment in the industry. It was the first to pass the ISO 9001: 2000 international quality management system certification, and the products are sold all over the world. The excellent quality has been verified by many buyers.
4. Price
Qingdao Henger uses imported duty-free rubber as the main material, and the auxiliary materials are purchased from suppliers who have worked closely for many years, thus greatly reducing the cost of raw materials and logistics. The company is equipped with complete production equipment, so as to avoid the extra cost of going out for processing. At the same time, the perfect management system and rich production experience greatly reduce unnecessary man-hours and waste of materials in production, so as to achieve the same quality, high quality fenders, the same price, good fender quality, and high cost performance are Henger products The advantages.
5. Service
Qingdao Henger customer service phone provides a full range of professional and intimate service. You can contact me at any time, I am always there.
Contact us:
Email:Sales1@hengergroup.com
WhatsApp/WeChat:+86 15662503695
Q: What’s the material of your pneumatic fender products ?
A: the main raw materials are natural rubber, synthetic-tyre-cord fabric and customized hardwares, etc.
Q: Are you factory or trading company ?
A: We are manufacturing factory, located in Jimo district,Qingdao city, 1 hour drive to Qingdao port and 40 minutes drive to Qingdao airport, which is convenient in transportation logistics.
Q: Is OEM service available ?
A: yes
Q: What’s the delivery time and payment terms ?
A: Delivery time is based on product model and order quantity. normally it is around 7-15 working days.
The payment could paid by T/T, L/C, Western Union, Paypal, etc.
