Yokohama type inflatable rubber fender can be used for ship collision prevention

Key Attributes
Brand Name: Henger
Model Number: 1200*2500
Place of Origin: China
Certification: BV,CCS,SGS,IOS17357
Minimum Order Quantity: 1
Price: $100-$1000
Supply Ability: 99999
Delivery Time: 10
Payment Terms: L/C, D/A, D/P, T/T, Western Union,
Standard Packaging: According to customer requirements

Product Summary

Yokohama type inflatable rubber fender Floating Marine Rubber Boat And Ship To Ship Pneumatic Rubber Fender Yokohama Tyre Inflatable Airbag Landing With Net BV Features of our submarine fender pneumatic yokohama fender Accessories: Fully compliant with ISO 17357 standard, manufacture with mold, ...

Product Custom Attributes

Highlight

Floating Marine Pneumatic Rubber Fender

,

Yokohama Tyre Pneumatic Rubber Fender

,

Tyre Sheath Yokohama Fender

Part:
Marine Equipments,pneumatic Rubber Fender
Color:
Black,Blue,Black/As Requirements
Material:
Natural Rubber
Application:
STD,STS,Ships And Boats,Ship Fender,Marine/quay/dock/boat
Size:
Customized,D3.3*L6.5m Pneumatic Rubber Fender,2*3.5m,3.3x6.5m
Name:
Pneumatic Rubber Fender,Pneumatic Boat Fender,Marine Floating Pneumatic Inflatable Rubber Fender For Sales,Floating Dock Marina Manofacturer,Marine Airbag
Product Name:
Pneumatic Rubber Fender,Marine/Dock Fender
Warranty Period:
24 Months,3 Years
Warranty:
24 Months
Diameter:
0.5m-3.3m,0.5~4.5m
Usage:
Pneumatic Marine Fenders Cone Fender,Protects Ship During Ship-to-ship Operations Or Mooring At Quay,Protect Boat
Length:
0.5m~12.0m,1.0m-6.5m,1~9m
Chain:
312,hot Galvanizing Or Stainless Steel(304,316)
Quality:
Excellent
Design Using Life:
10 Years
Product Description

Yokohama type inflatable rubber fender

Floating Marine Rubber Boat And Ship To Ship Pneumatic Rubber Fender Yokohama Tyre Inflatable Airbag Landing With Net BV

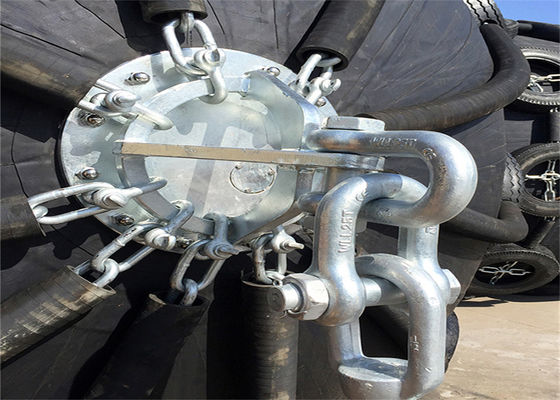

Features of our submarine fender pneumatic yokohama fender Accessories:

Fully compliant with ISO 17357 standard, manufacture with mold, difference with traditional hand-make product.
Diameters ranging from 300 mm to 4500 mm and length ranging from 500 mm to 1200 mm
Standard colors gray and black
Constructed with an inner rubber layer, reinforcing cord layers and outer rubber layer
Comprehensively tested for material and hydrostatic pressure irregularities
Correctly evaluated for angular and durability performance
Clearly marked with all relevant identification
Complete with up-to-date certification
Available in a variety of sizes
Thick outer skin supercedes that of a normal surface fender
Fitted safety valve for fenders of 2.5 m diameter upwards



2.5*3.5IMG_20160607_074726



Composition of submarine fender pneumatic yokohama fender



How do you package and ship your products?

Answer: According to different products and different situations, our packaging methods are diverse!

The packing method we usually use: wooden box packing! Pallet packing! Naked!

For large products, we usually deflate and pack them! For smaller products, some customers will ask us to inflate and ship, such as 0.5M*1M products!

We usually use air, rail, and sea transportation!

Our company has been engaged in trade and export for 20 years, so we have rich experience in packaging and transportation, you don't need to have any worries!



Yokohama type inflatable rubber fender can be used for ship collision prevention



Product Features



Our rubber content has been upgraded from 54% of the same industry standard at the beginning to 56%. In order to improve the quality of our products again and make you or your customers more competitive in the market, we have now increased the rubber content to 60%. In this way, the flexibility of the rubber fender will be greatly improved, and the puncture resistance will also be enhanced. We can provide the highest standard SGS certificate in the industry to prove our quality.



All fenders are equipped with a safety valve to release the inside air in the event of accidental over pressure. It is a patented design which could avoid explosion of fenders from collision and air inflation.



All fenders are designed with a quick-changing air inflation connector. By changing a new air inflation connector, the pneumatic rubber fender can continue to work without any problems instead of scraping in recovery processing plant.







Pneumatic rubber fender Parameter



Pneumatic 50 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection(R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10 % kN

Reference value

kPa

500 x 1000 50 6 64 132
600 x 1000 50 8 74 126
700 x 1500 50 17 137 135
1000 x 1500 50 32 182 122
1000 x 2000 50 45 257 132
1200 x2000 50 63 297 126
1350 x 2500 50 102 427 130
1500 x 3000 50 153 579 132
1700 x 3000 50 191 639 128
2000 x 3500 50 308 875 128
2500 x 4000 50 663 1381 137
2500 x5500 50 943 2019 148
3300 x 4500 50 1175 1884 130
3300 x 6500 50 1814 3015 146
3300 x 10600 50 3067 5257 158
4500 x 9000 50 4752 5747 146
4500 x 12000 50 6473 7984 154



Pneumatic 80 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection (R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10% kN

Reference value

kPa

500 x 1000 80 8 85 174
600 x 1000 80 11 98 166
700 x 1500 80 24 180 177
1000 x 1500 80 45 239 160
1000 x2000 80 63 338 174
1200 x 2000 80 88 390 166
1350 x 2500 80 142 561 170
1500 x 3000 80 214 761 174
1700 x 3000 80 267 840 168
2000 x 3500 80 430 1150 168
2500 x 4000 80 925 1815 180
2500 x 5500 80 1317 2653 195
3300 x 4500 80 1640 2476 171
3300 x 6500 80 2532 3961 191
3300 x 10600 80 4281 6907 208
4500 x 9000 80 6633 7551 192
4500 x 12000 80 9037 10490 202

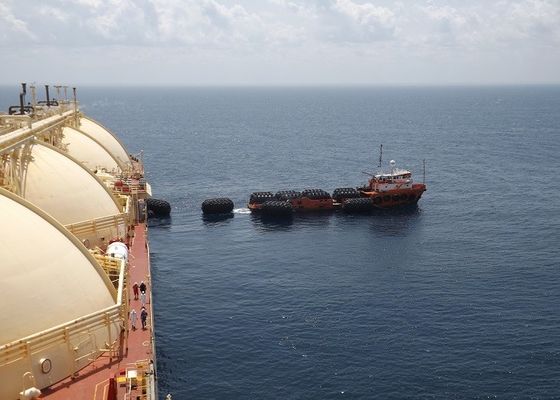

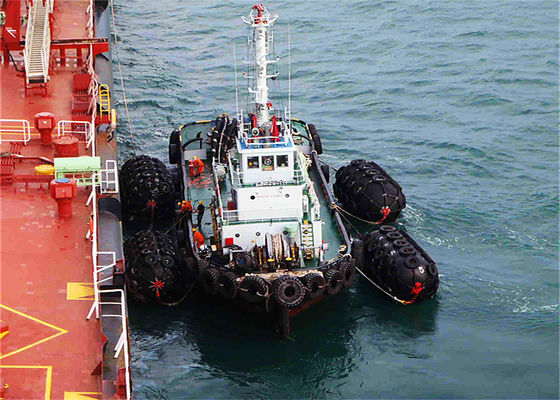

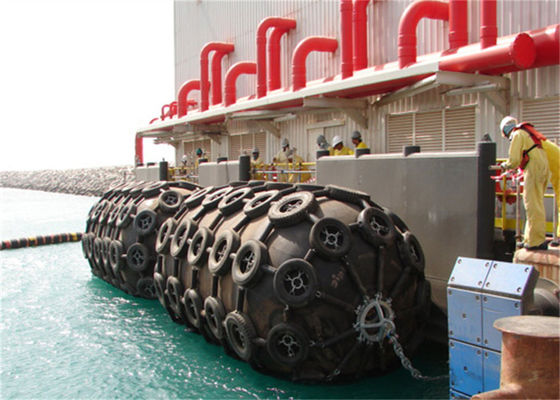

Pneumatic Rubber Fender Application

1. Oil and gas tankers
2. Fast ferries and aluminum vessels
3. Temporary and permanent installations
4. Rapid response and emergencies
5. In ports with extreme tidal variations
6. For ship-to-ship lightering operations
7. For all navy vessels due to low hull pressure and the advantage of a proportional increase of reaction force and energy absorption





Yokohama type inflatable rubber fender can be used for ship collision prevention

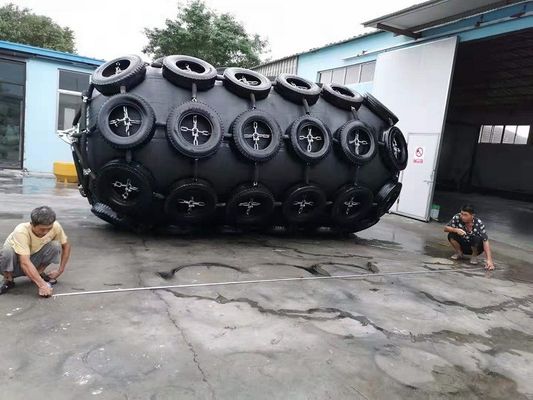

Pneumatic Rubber Fender Transportation



Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.



Yokohama type inflatable rubber fender can be used for ship collision prevention

Yokohama type inflatable rubber fender can be used for ship collision prevention



Advantages of our products:


High energy absorption and low reaction forces
Good adaptability to oblique contact
Floats on water, suitable for rocking boats
