Type Marine Floating Pneumatic Fender The pneumatic fender or inflatable rubber fender or Yokohama fender compressed air is used as a buffer medium to absorb the impact energy of the ship, so that the ship has more flexibility and flexibility when docking, so as to prevent The impact of collisions ...
The pneumatic fender or inflatable rubber fender or Yokohama fender compressed air is used as a buffer medium to absorb the impact energy of the ship, so that the ship has more flexibility and flexibility when docking, so as to prevent The impact of collisions and collisions
Type Marine Floating Pneumatic Fender Features
Unique Design of Henger Pneumatic Rubber Fender
Active-Protecting Safety Valve , All fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.
It is a patented design which could avoid explosion of fenders from collision and air inflation.
Henger Flange is casting of corrosion-resistant iron with galvanized anti-corrosive coating, which will strongly prolong the fender quality and service life. The strength of Henger casting flange improves 40% higher than traditional type.
1. Oil and gas tankers
2. Fast ferries and aluminum vessels
3. Temporary and permanent installations
4. Rapid response and emergencies
5. In ports with extreme tidal variations
6. For ship-to-ship lightering operations
7. For all navy vessels due to low hull pressure and the advantage of a proportional increase of reaction force and energy absorption
Pneumatic rubber fender Parameter
| Fender Size | Compression Amount(60%) |
Noumenon Weight (kg) |
Weight with Protective Jacket (kg) |
||
|
D (mm) |
L (mm) |
Reaction (KN) |
Energy Absorption (KNM) |
||
| 500 | 1000 | 64 | 6 | 23 | 35 |
| 600 | 1000 | 74 | 8 | 28 | 40 |
| 700 | 1000 | 137 | 17 | 58 | 52 |
| 1000 | 1500 | 182 | 32 | 82 | 100 |
| 1000 | 2000 | 257 | 45 | 148 | 152 |
| 1200 | 2000 | 297 | 63 | 167 | 200 |
| 1350 | 2500 | 427 | 102 | 220 | 298 |
| 1500 | 2500 | 499 | 134 | 270 | 300 |
| 1500 | 3000 | 579 | 153 | 318 | 450 |
| 1700 | 3000 | 639 | 191 | 380 | 482 |
| 2000 | 3500 | 875 | 308 | 580 | 890 |
| 2000 | 4000 | 1000 | 352 | 680 | 1000 |
| 2500 | 4000 | 1381 | 663 | 1064 | 1180 |
| 2500 | 5500 | 2019 | 1131 | 1268 | 1380 |
| 3000 | 5000 | 2422 | 1357 | 1980 | 2388 |
| 3000 | 6000 | 2906 | 1293 | 2400 | 2690 |
| 3300 | 4500 | 1884 | 1175 | 2380 | 2617 |
| 3300 | 6500 | 3015 | 1814 | 2980 | 3000 |
|
|||||
Product drawing

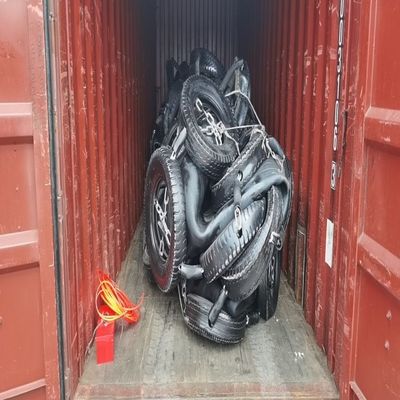

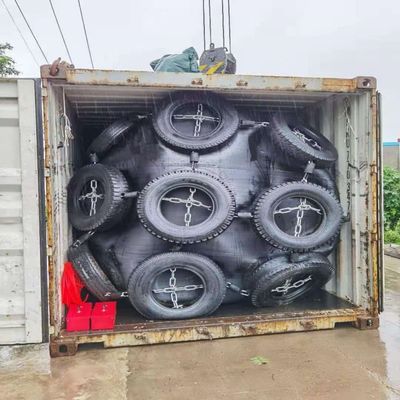

Pneumatic Rubber Fender Transportation
Type marine floating pneumatic fender transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
