Product Details:
Payment & Shipping Terms:
|
| Product Name: | Pneumatic Rubber Fender/Marine Fender/Yokohama Fender | Brand: | Henger |
|---|---|---|---|
| Warranty Period: | 24 Months | Certification: | CCS BV Certification ISO17357 ISO9001, ABS, DNV, LG, CCS |
| Specification: | Dia 0.5m-4.5m, L 0.7m-9m/Customized | Application: | STD, STS, Ships And Boats, Ship Fender, Marine/quay/dock/boat |
| Part: | Marine Equipments, Flange, Pneumatic Boat Fender, Marine Fender, Pneumatic Rubber Fender | Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Color: | Orange/Gray/Black/Customized | Accessories: | Tyre Sheath/Swivel/Shackle/Chain |
| High Light: | Inflatable Marine Rubber Fender,Oxidation Resistance Marine Rubber Fender,Inflatable rubber dock fender |
||
Oxidation Resistance Long Service Life Inflatable Marine Rubber Fender
Qingdao Henger Shipping Supplies Co., Ltd
Qingdao Henger Shipping Supplies CO., Ltd is a professional shipping supplies manufacturer with more than 6 years adult experience.Our main produtcts:Pneumatic Rubber Fender,Marine Rubber Airbag,Floating Foam Filled Fender,Mooring Buoy,Highway Safety Roller Barrier,etc All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.
Qingdao Henger Marine Supplies Co., Ltd has it's own factory with R&D,which strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with friends all over the world.
The advantages of the Pneumatic Rubber Fends:
1. Guaranteed energy absorption
2. Thick skin construction
3. Good angular performance
4. Less surface pressure onto the side wall of ships. (The capability of accepting surface pressure of the fender is up to 14 ton/m2).
5. No reduction on the performance of compression when inclined.
6. Especially in mooring of large scale ships in sea docks and lightering.
Floating Inflatable Fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships. Since its creation until today, more than millions of fenders have been supplied worldwide both for ship-to-ship and ship-to-dock (STD) operations serving our valuable customers. These fenders play a critical role in the safe operation of ship berthing and mooring.

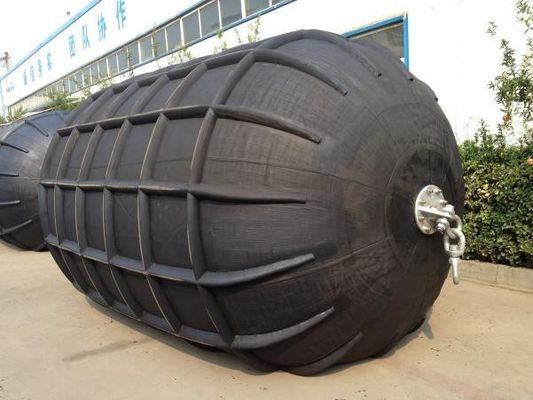

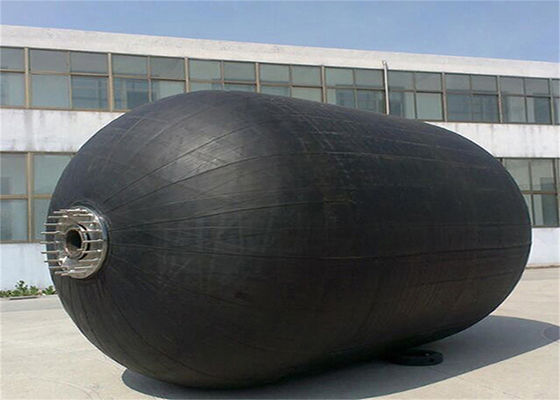

Inflatable Rubber Fender Types

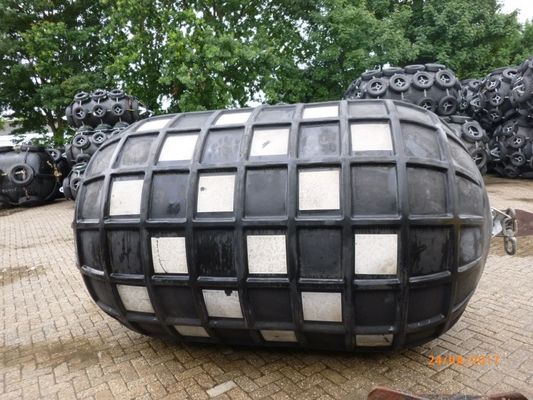

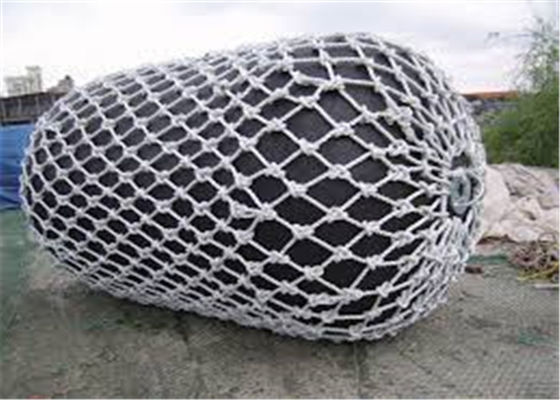

There are many choices for protective jacket of inflatable rubber fender, Henger could also provide OEM
service and technical design based on customer requirement and actual demand. contact our sales service for more details.
Henger Inflatable Rubber Fender size and performance requirements
Manufacturing Proces
Henger Inflatable Rubber Fender Advantages
Safety and Reliability
Henger Inflatable Rubber Fenders are constructed of several layers of strong tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the design of this fender is based on accepted theory and has been proven by extensive experimentation.
Large-size fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.
No Deterioration or Variation in Performance
Henger Inflatable Rubber Fenders utilize the compressive elasticity of air, therefore
performance deterioration due to fatigue is absent.
Soft Reaction Force for Ship and Jetty Structure
The reaction force of Henger Inflatable Rubber Fenders does not increase sharply, even under excess load conditions. Therefore, the Henger Inflatable Rubber Fenders perform well in such cases, and protect ships and mooring facilities.
Inflatable Rubber Fender Technical Parameter
| Fender Size | Compression Amount (60%) |
Noumenon Weight (Kg) |
Weight with Protective Jacket (Kg) |
||
|
D (mm) |
L (mm) |
Reaction (KN) |
Energy Absorption (KNm) |
||
| 500 | 1000 | 64 | 6 | 23 | 35 |
| 600 | 1000 | 74 | 8 | 28 | 40 |
| 700 | 1000 | 137 | 17 | 58 | 52 |
| 1000 | 1500 | 182 | 32 | 82 | 100 |
| 1000 | 2000 | 257 | 45 | 148 | 152 |
| 1200 | 2000 | 297 | 63 | 167 | 200 |
| 1350 | 2500 | 427 | 102 | 220 | 298 |
| 1500 | 2500 | 499 | 134 | 270 | 300 |
| 1500 | 3000 | 579 | 153 | 318 | 450 |
| 1700 | 3000 | 639 | 191 | 380 | 482 |
| 2000 | 3500 | 875 | 308 | 580 | 890 |
| 2000 | 4000 | 1000 | 352 | 680 | 1000 |
| 2500 | 4000 | 1381 | 663 | 1064 | 1180 |
| 2500 | 5500 | 2019 | 1131 | 1268 | 1380 |
| 3000 | 5000 | 2422 | 1357 | 1980 | 2388 |
| 3000 | 6000 | 2906 | 1293 | 2400 | 2690 |
| 3300 | 4500 | 1884 | 1175 | 2380 | 2617 |
| 3300 | 6500 | 3015 | 1814 | 2980 | 3000 |
|
* there are inflatable fenders of 0.05Mpa & 0.08Mpa internal pressure for choice, kindly contact our service consultant for more details and competitive prices. * inflatable fender size could be customized according to customer requirement. * all accessorires could be customized according to customers' requirement or drawings. |
|||||
Model Selection of Inflatable Fender for Small & Middle Size Ship
| Ship Tonnage(T) | Recommendation Size D x L ( m) | Ship Type |
| 50 | 0.5 x1.0 | Fishing ship |
| 100 | 0.7 x 1.5~1.0 x 1.5 | Fishing ship |
| 200 | 1.0 x 1.5~1.2 x 2.0 | Fishing ship, towing ship |
| 300-500 | 1.2 x 2.0~1.5 x 2.5 | Fishing ship, towing ship |
| 1000 | 1.5 x 2.5~1.5 x 3.0 | Towing ship, cargo ship |
| 3000 | 2.0 x 3.0~2.0 x 3.5 | cargo ship, ocean trawler |
| 10000 | 2.0 x 3.5~2.5 x 4.0 | cargo ship |
Model Selection of Inflatable Fender for Large-tonnage Ship
|
Ship Tonnage (DWT) |
Assumed Boarding Speed (M/S) |
Effective Kinetic Energy (KN.M) |
Fender Size D*L (m) |
| 200000 | 0.15 | 1890 | 3.3 x 6.5 |
| 150000 | 0.15 | 1417 | 3.3 x 6.5 |
| 100000 | 0.15 | 945 | 3.0 x 5.0 |
| 85000 | 0.17 | 1031 | 3.0 x 6.0 |
| 50000 | 0.18 | 680 | 2.5 x 5.5 |
| 40000 | 0.20 | 672 | 2.5 x 5.5 |
| 30000 | 0.22 | 609 | 2.5 x 4.0 |
| 20000 | 0.25 | 525 | 2.5 x 4.0 |
| 15000 | 0.26 | 425 | 2.5 x 4.0 |
| 10000 | 0.28 | 329 | 2.0 x 4.0 |
| 5000 | 0.33 | 228 | 2.0 x 3.5 |
Inflatable Rubber Fender Application
1. large crude oil carrier, VLCC
2. container vessel
3. offshore sea task platform
4. large shipyard and dock
5. large ship and cruise ship
6. army harbor dock
7. large bridge pier
Exhibition:
Packing & Delivery
* all packing method and shipping method of inflatable rubber fenders are done as per to csutomer's requirement.
After Sales Service
Quality is the cornerstone, service is the soul.
We continue to provide our customers with stable & reliable quality inflatable rubber fenders with a comprehensive system of technical support, meticulous and thoughtful after-sales service to win customers trust and satisfaction.
Qingdao Henger Shipping Supplies Co., Ltd provides following services to all customers.
1. 24 hours instant online technical consultation and support.
2. 24 months warranty period(without any artificial damage) and free repairing service within warranty period.
3. lifetime reparing service.
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment?
A: Payment ≤ 1000USD, 100% in advance. Payment ≥ 1000USD, 30% T/T in advance, balance before shipment.
* all packing method and shipping method of inflatable rubber fenders are done as per to csutomer's requirement.
Please contact us if you are interested in them.
