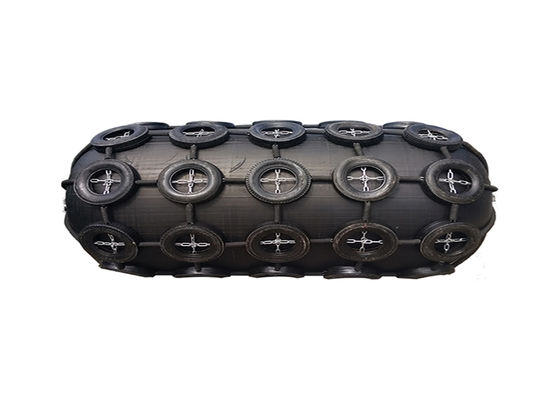

Ship Anticollision Pneumatic Rubber Fender With ISO9001 Certification

Key Attributes
Brand Name: Henger
Model Number: 016
Place of Origin: China
Certification: Iso 9001、BV、ccs
Minimum Order Quantity: 1pcs
Supply Ability: 50pcs week
Delivery Time: 5days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Standard Packaging: paller

Product Summary

Made In China Ship Anticollision Pneumatic Rubber Fender With ISO9001 Certification Pneumatic rubber fender introduction What is Pneumatic Rubber Fender? The "Yokohama Type Pneumatic Rubber Fender" was developed in 1958. Progress in the development of such floating pneumatic rubber fenders is ...

Product Custom Attributes

Highlight

Anticollision Pneumatic Rubber Fender

,

ISO9001 Pneumatic Rubber Fender

,

Anticollision yokohama pneumatic fender

Part:
Flange,Marine Fender
Color:
Black/As Requirements
Material:
Natural Rubber
Application:
STD,STS,Ship Fender
Size:
Customized
Product Name:
Pneumatic Rubber Fender
Type:
50Kpa
Packing:
Nude Packing/As Requirement
Certification:
CCS BV Certification ISO17357 ISO9001
Product Description

Made In China Ship Anticollision Pneumatic Rubber Fender With ISO9001 Certification

Pneumatic rubber fender introduction


What is Pneumatic Rubber Fender?



The "Yokohama Type Pneumatic Rubber Fender" was developed in 1958. Progress in the development of such floating pneumatic rubber fenders is closely related to the progress and development of ship technology, and has to continuously cope with progressively larger oil tankers such as VLCC's, ULCC's, large gas carriers, bulk carriers and floating structures. Floating pneumatic fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships. Since its creation until today, more than millions of fenders have been supplied worldwide both for ship-to-ship and ship-to-dock (STD) operations serving our valuable customers. These fenders play a critical role in the safe operation of ship berthing and mooring

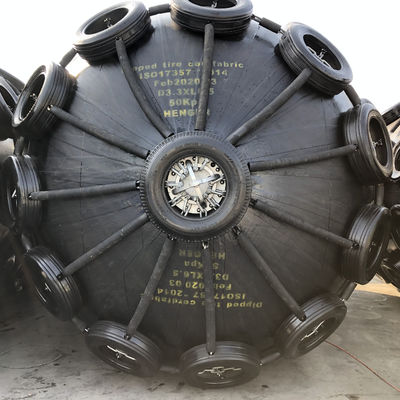

Ship Anticollision Pneumatic Rubber Fender With ISO9001 Certification 0

Pneumatic rubber fender Parameter

Ship Tonnage

(DWT)

Assumed Boarding Speed

(M/S)

Effective Kinetic Energy

(KN.M)

Fender Size D*L

(m)

200000 0.15 1890 3.3 x 6.5
150000 0.15 1417 3.3 x 6.5
100000 0.15 945 3.0 x 5.0
85000 0.17 1031 3.0 x 6.0
50000 0.18 680 2.5 x 5.5
40000 0.20 672 2.5 x 5.5
30000 0.22 609 2.5 x 4.0
20000 0.25 525 2.5 x 4.0
15000 0.26 425 2.5 x 4.0
10000 0.28 329 2.0 x 4.0
5000 0.33 228 2.0 x 3.5
For Large-tonnage Ship



Product structure

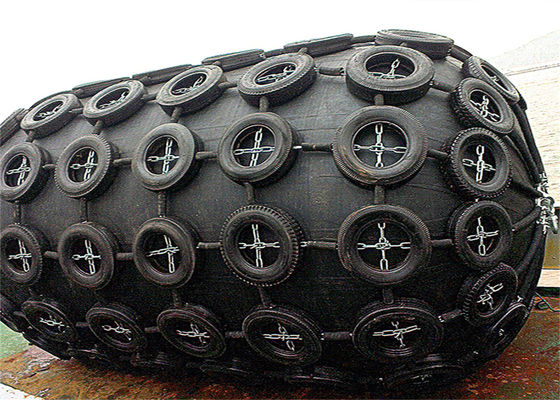

Ship Anticollision Pneumatic Rubber Fender With ISO9001 Certification 1



Pneumatic Rubber Fender Features


1. Guaranteed energy absorption
2. Chain tyre net and sling type
3. Thick skin construction
4. Good angular performance
5. Less surface pressure onto the side wall of ships. (The capability of accepting surface pressure of the fender is up to 14 ton/m2).
6. No reduction on the performance of compression when inclined.
7. Suitable for areas with large or small tides.
8. Suitable in cold weather because the compressed air as buffering medium.
9. Especially in mooring of large scale ships in sea docks and lightering.
10. Maintains large clearances between hull and structure

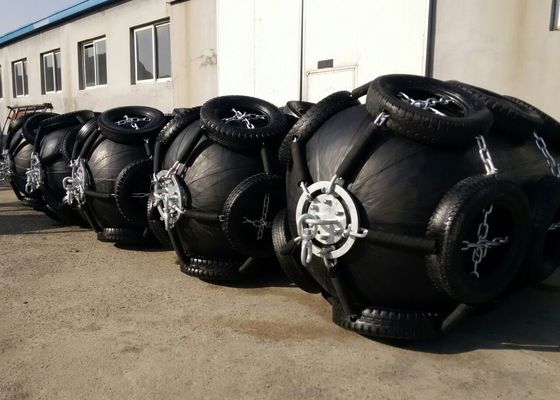

Ship Anticollision Pneumatic Rubber Fender With ISO9001 Certification 2

 Pneumatic Rubber Fender Transportation


Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.

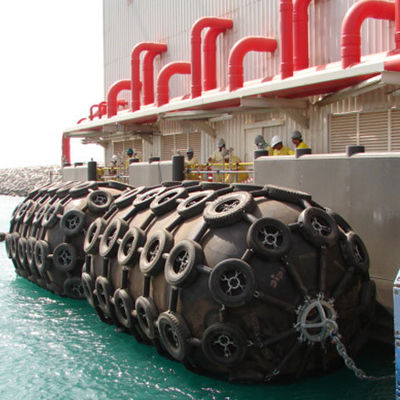

Ship Anticollision Pneumatic Rubber Fender With ISO9001 Certification 3

After-sale service


  • Quality is the cornerstone, service is the soul. We continue to provide our customers with stable & reliable quality pneumatic rubber fenders with a comprehensive system of technical support, meticulous and thoughtful after-sales service to win customers trust and satisfaction. Qingdao Henger Shipping Supplies Co., Ltd provides following services to all customers.
  • 24 hours instant online technical consultation and support.
  • 24 months warranty period(without any artificial damage) and free repairing service within warranty period.
  • lifetime reparing service.
