Product Details:
Payment & Shipping Terms:
|
| Part: | Marine Equipments | Color: | Black/As Requirements |
|---|---|---|---|
| Material: | Natural Rubber | Application: | STD,STS,Ships And Boats,Ship Fender |
| Name: | Pneumatic Rubber Fender | Warranty Period: | 24 Months |
| Type: | 50Kpa,Pneumatic | Packing: | Nude Packing/As Requirement |
| High Light: | Hydro Pneumatic Rubber Fender,Floating Pneumatic Rubber Fender,50Kpa submarine fender |
||
QINGDAO HENGER SHIPPING SUPPLIES CO.,LTD
Floating pneumatic fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships.
Since its creation until today, Henger more than 10,000 fenders have been supplied worldwide both for ship-to-ship and ship-to-dock operations serving our valuable customers.These fenders play a critical role in the safe operation of ship berthing and mooring.
What is Pneumatic Rubber Fender?
The "Yokohama Type Pneumatic Rubber Fender" was developed in 1958. Progress in the development of such floating pneumatic rubber fenders is closely related to the progress and development of ship technology, and has to continuously cope with progressively larger oil tankers such as VLCC's, ULCC's, large gas carriers, bulk carriers and floating structures. Floating pneumatic fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships. Since its creation until today, more than millions of fenders have been supplied worldwide both for ship-to-ship and ship-to-dock (STD) operations serving our valuable customers. These fenders play a critical role in the safe operation of ship berthing and mooring
|
Ship Tonnage (DWT) |
Assumed Boarding Speed (M/S) |
Effective Kinetic Energy (KN.M) |
Fender Size D*L (m) |
| 200000 | 0.15 | 1890 | 3.3 x 6.5 |
| 150000 | 0.15 | 1417 | 3.3 x 6.5 |
| 100000 | 0.15 | 945 | 3.0 x 5.0 |
| 85000 | 0.17 | 1031 | 3.0 x 6.0 |
| 50000 | 0.18 | 680 | 2.5 x 5.5 |
| 40000 | 0.20 | 672 | 2.5 x 5.5 |
| 30000 | 0.22 | 609 | 2.5 x 4.0 |
| 20000 | 0.25 | 525 | 2.5 x 4.0 |
| 15000 | 0.26 | 425 | 2.5 x 4.0 |
| 10000 | 0.28 | 329 | 2.0 x 4.0 |
| 5000 | 0.33 | 228 | 2.0 x 3.5 |
| For Large-tonnage Ship | |||
| Fender Size | Compression Amount(60%) |
Noumenon Weight (kg) |
Weight with Protective Jacket (kg) |
||
|
D (mm) |
L (mm) |
Reaction (KN) |
Energy Absorption (KNM) |
||
| 500 | 1000 | 64 | 6 | 23 | 35 |
| 600 | 1000 | 74 | 8 | 28 | 40 |
| 700 | 1000 | 137 | 17 | 58 | 52 |
| 1000 | 1500 | 182 | 32 | 82 | 100 |
| 1000 | 2000 | 257 | 45 | 148 | 152 |
| 1200 | 2000 | 297 | 63 | 167 | 200 |
| 1350 | 2500 | 427 | 102 | 220 | 298 |
| 1500 | 2500 | 499 | 134 | 270 | 300 |
| 1500 | 3000 | 579 | 153 | 318 | 450 |
| 1700 | 3000 | 639 | 191 | 380 | 482 |
| 2000 | 3500 | 875 | 308 | 580 | 890 |
| 2000 | 4000 | 1000 | 352 | 680 | 1000 |
| 2500 | 4000 | 1381 | 663 | 1064 | 1180 |
| 2500 | 5500 | 2019 | 1131 | 1268 | 1380 |
| 3000 | 5000 | 2422 | 1357 | 1980 | 2388 |
| 3000 | 6000 | 2906 | 1293 | 2400 | 2690 |
| 3300 | 4500 | 1884 | 1175 | 2380 | 2617 |
| 3300 | 6500 | 3015 | 1814 | 2980 | 3000 |
|
|||||
Service and transportation:
The product warranty period of Henger is 24 months, and the average supplier can not reach such a long time, which is also the trust we and customers have in our factory products.
After-sales service we are online 24 hours a day, as long as you have questions we will always be there, there will be professional staff to answer your questions and provide you with technical support.

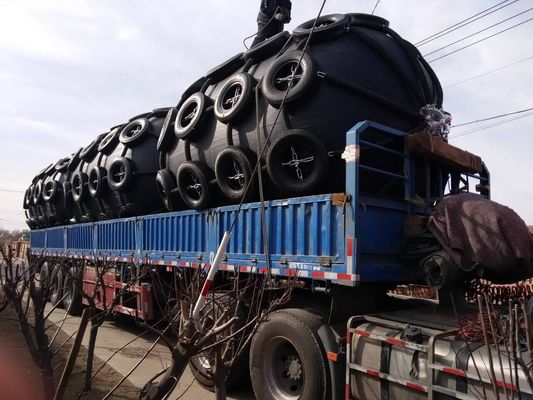

Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
