Product Details:
Payment & Shipping Terms:
|
| Product Nam: | Pneumatic Rubber Fender/Marine Fender/Yokohama Fender | Material: | Rubber |
|---|---|---|---|
| Size: | 0.5*1m~4.5*9m | Working Pressure: | 50kPa/80kPa |
| Certification: | CCS/BV/ABS/ISO17357/ISO9001 | Application: | Berthing/mooring/STS |
| Warranty: | 24 Months | Using Life: | Using Life |
| Payment: | D/A, L/C, D/P, T/T, Western Union, MoneyGram | Color: | Black/White/Support Customization |
| High Light: | Offshore Boat Rubber Fender,Marine Yokohama Floating Fender,Offshore Yokohama Floating Fender |
||

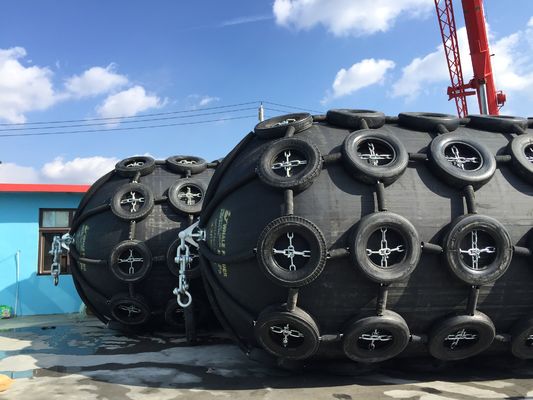

How does the fender work?
The pneumatic fender or inflatable rubber fender or Yokohama fender compressed air is used as a buffer medium to absorb the impact energy of the ship, so that the ship has more flexibility and flexibility when docking, so as to prevent The impact of collisions and collisions.
| Pneumatic 50 fender size and performance requirements | ||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection(R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10 % kN |
Reference value kPa |
||
| 500 x 1000 | 50 | 6 | 64 | 132 |
| 600 x 1000 | 50 | 8 | 74 | 126 |
| 700 x 1500 | 50 | 17 | 137 | 135 |
| 1000 x 1500 | 50 | 32 | 182 | 122 |
| 1000 x 2000 | 50 | 45 | 257 | 132 |
| 1200 x2000 | 50 | 63 | 297 | 126 |
| 1350 x 2500 | 50 | 102 | 427 | 130 |
| 1500 x 3000 | 50 | 153 | 579 | 132 |
| 1700 x 3000 | 50 | 191 | 639 | 128 |
| 2000 x 3500 | 50 | 308 | 875 | 128 |
| 2500 x 4000 | 50 | 663 | 1381 | 137 |
| 2500 x5500 | 50 | 943 | 2019 | 148 |
| 3300 x 4500 | 50 | 1175 | 1884 | 130 |
| 3300 x 6500 | 50 | 1814 | 3015 | 146 |
| 3300 x 10600 | 50 | 3067 | 5257 | 158 |
| 4500 x 9000 | 50 | 4752 | 5747 | 146 |
| 4500 x 12000 | 50 | 6473 | 7984 | 154 |
| Pneumatic 80 fender size and performance requirements | ||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection (R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10% kN |
Reference value kPa |
||
| 500 x 1000 | 80 | 8 | 85 | 174 |
| 600 x 1000 | 80 | 11 | 98 | 166 |
| 700 x 1500 | 80 | 24 | 180 | 177 |
| 1000 x 1500 | 80 | 45 | 239 | 160 |
| 1000 x2000 | 80 | 63 | 338 | 174 |
| 1200 x 2000 | 80 | 88 | 390 | 166 |
| 1350 x 2500 | 80 | 142 | 561 | 170 |
| 1500 x 3000 | 80 | 214 | 761 | 174 |
| 1700 x 3000 | 80 | 267 | 840 | 168 |
| 2000 x 3500 | 80 | 430 | 1150 | 168 |
| 2500 x 4000 | 80 | 925 | 1815 | 180 |
| 2500 x 5500 | 80 | 1317 | 2653 | 195 |
| 3300 x 4500 | 80 | 1640 | 2476 | 171 |
| 3300 x 6500 | 80 | 2532 | 3961 | 191 |
| 3300 x 10600 | 80 | 4281 | 6907 | 208 |
| 4500 x 9000 | 80 | 6633 | 7551 | 192 |
| 4500 x 12000 | 80 | 9037 | 10490 | 202 |
Pneumatic Rubber Fenders are suitable for many applications including:
1. Tankers, Gas Carries and Bulk Cargo Ships;
2. Fast ferries and aluminum hulled vessels;
3. Temporary of permanent installations;
4. Rapid response and emergency fendering;
5. As stand-off fenders to realign ships with shore facilitie
Unique Design of Henger Pneumatic Rubber Fender
Active-Protecting Safety Valve , All fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.
It is a patented design which could avoid explosion of fenders from collision and air inflation.
Henger Flange is casting of corrosion-resistant iron with galvanized anti-corrosive coating, which will strongly prolong the fender quality and service life. The strength of Henger casting flange improves 40% higher than traditional type.
QINGDAO HENGER SHIPPING SUPPLIES CO.,LTD
Floating pneumatic fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships.
Since its creation until today, Henger more than 10,000 fenders have been supplied worldwide both for ship-to-ship and ship-to-dock operations serving our valuable customers.These fenders play a critical role in the safe operation of ship berthing and mooring.
1. Technical advantages
Qingdao Henger Inflatable Rubber Fender introduces the new Japanese Yokohama company's inflatable fender production technology, and hires experienced engineers at home and abroad for training and guidance all year round. "Floating inflatable rubber fender" is produced according to international quality standards.
2. Production advantages
Qingdao Henger has accumulated 20 years of professional rubber production experience. It is an excellent company in the region, with strong technology and capital, and a stable quality marine fender (ball bearing) supplier.
3. Quality advantage
Qingdao Henger has raw material testing equipment, production equipment and finished product inspection equipment in the industry. It was the first to pass the ISO 9001: 2000 international quality management system certification, and the products are sold all over the world. The excellent quality has been verified by many buyers.
4. Price advantage
Qingdao Henger uses imported duty-free rubber as the main material, and the auxiliary materials are purchased from suppliers who have worked closely for many years, thus greatly reducing the cost of raw materials and logistics. The company is equipped with complete production equipment, so as to avoid the extra cost of going out for processing. At the same time, the perfect management system and rich production experience greatly reduce unnecessary man-hours and waste of materials in production, so as to achieve the same quality, high quality fenders, the same price, good fender quality, and high cost performance are Henger products The advantages.
5. Service advantages
Qingdao Henger customer service phone provides a full range of professional and intimate service. You can contact me at any time, I am always there.

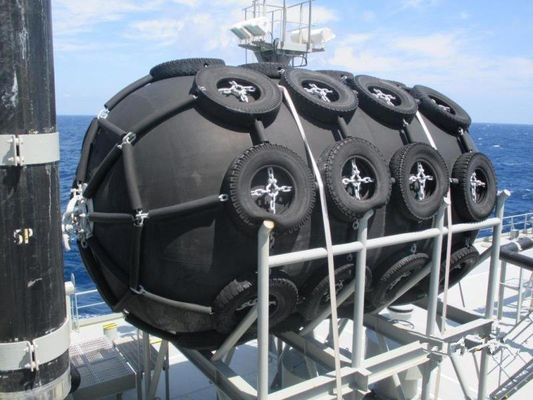

In general, for ship-to-ship operation of light ships, two points of contact are sufficient. However, for the operation of large ships by ship, an additional 1-2 fenders of the same specification must be used to ensure safety. Inflatable rubber fenders can be used as the main protection system to absorb the energy of the ship to the ship, while keeping the two ships at a certain distance. In addition, a small inflatable rubber fender can also be hung on the side of the ship as a secondary protection. Inflatable rubber fenders require chains and rope links to be hung from the ship or dock, and their specifications are selected according to the size of the fender and the environment in which it is used.

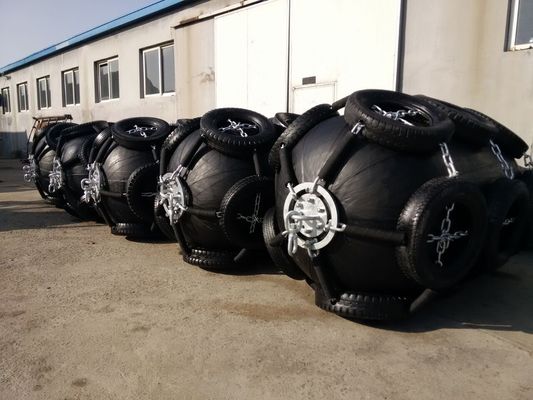

Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
1. When the Pneumatic rubber fender is not used for a long time, it should be washed and dried, filled with appropriate compressed air, placed in a dry, cool, ventilated place.Inventory temperature is maintained at -15 ℃ -40 ℃ .
2 .The place where the fender is stored should be kept away from the heat source.
3 .Fenders shall not be in contact with acids, alkalis, greases and organic solvents.
4 .When the fenders are not in use, they must not be stacked and should not be stacked on the ba. In order to better extend the service life of pneumatic rubber fenders, it is recommended that you store them in strict accordance with the above recommendations.
In general, for ship-to-ship operation of light ships, two points of contact are sufficient. However, for the operation of large ships by ship, an additional 1-2 fenders of the same specification must be used to ensure safety. Inflatable rubber fenders can be used as the main protection system to absorb the energy of the ship to the ship, while keeping the two ships at a certain distance. In addition, a small inflatable rubber fender can also be hung on the side of the ship as a secondary protection. Inflatable rubber fenders require chains and rope links to be hung from the ship or dock, and their specifications are selected according to the size of the fender and the environment in which it is used.
Quality is the cornerstone, service is the soul.
We continue to provide our customers with stable & reliable quality pneumatic rubber fenders with a comprehensive system of technical support, meticulous and thoughtful after-sales service to win customers trust and satisfaction.
Qingdao Henger Shipping Supplies Co., Ltd provides following services to all customers.
1. 24 hours instant online technical consultation and support.
2. 24 months warranty period(without any artificial damage) and free repairing service within warranty period.
3. lifetime reparing service.
Q: What’s the material of your pneumatic fender products ?
A: the main raw materials are natural rubber, synthetic-tyre-cord fabric and customized hardwares, etc.
Q: Are you factory or trading company ?
A: We are manufacturing factory, located in Jimo district,Qingdao city, 1 hour drive to Qingdao port and 40 minutes drive to Qingdao airport, which is convenient in transportation logistics.
Q: Is OEM service available ?
A: yes
Q: What’s the delivery time and payment terms ?
A: Delivery time is based on product model and order quantity. normally it is around 7-15 working days.
The payment could paid by T/T, L/C, Western Union, Paypal, etc.
