BV Certificate The Inflatable Marine Yokahama Rubber Fender For Ships

BV Certificate The Inflatable Marine Yokahama Rubber Fender For Ships
BV Certificate The Inflatable Marine Yokahama Rubber Fender For Ships
video play

Large Image :  BV Certificate The Inflatable Marine Yokahama Rubber Fender For Ships

Product Details:
Place of Origin: Qingdao
Brand Name: HER
Certification: CCS.BV.ISO
Model Number: D2.0M*L3.5M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Nude packing
Delivery Time: About 10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 per week
Detailed Product Description
Product Name: Pneumatic Rubber Fender Brand: Henger
Material: Natural Rubber Size: D2.0M*L3.5M
Certificate: CCS.BV.ISO Warranty: 2 Years
Usage: Protect Boat Packing: Pallet
High Light:

BV Certificate Yokahama Rubber Fender


Inflatable Yokahama Rubber Fender


BV Certificate marine rubber fender



BV Certificate Supply The Inflatable Marine Yokahama Rubber Fender For Ships



Henger Pneumatic Rubber Fender Type

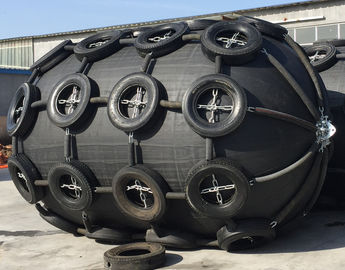

Tire net type: multiple tires are tied to the ball, and both ends are tied to a special flywheel that can rotate flexibly. Suitable for large and reliable balls.


Rubber net type: tie a special rubber pad to the ball, which can be freely contracted or stretched when squeezed. Suitable for medium and small reliable balls.


Line type: The net cover is woven with nylon rope; tightly tied to the ball. It is suitable for small size reliable balls.


BV Certificate The Inflatable Marine Yokahama Rubber Fender For Ships 0

How does the fender work?


The ships fender for boats or ships fender compressed air is used as a buffer medium to absorb the impact energy of the ship, so that the ship has more flexibility and flexibility when docking, so as to prevent The impact of collisions and collisions.



Fender Size Compression Amount(60%)


Noumenon Weight (kg)

Weight with Protective Jacket








Energy Absorption


500 1000 64 6 23 35
600 1000 74 8 28 40
700 1000 137 17 58 52
1000 1500 182 32 82 100
1000 2000 257 45 148 152
1200 2000 297 63 167 200
1350 2500 427 102 220 298
1500 2500 499 134 270 300
1500 3000 579 153 318 450
1700 3000 639 191 380 482
2000 3500 875 308 580 890
2000 4000 1000 352 680 1000
2500 4000 1381 663 1064 1180
2500 5500 2019 1131 1268 1380
3000 5000 2422 1357 1980 2388
3000 6000 2906 1293 2400 2690
3300 4500 1884 1175 2380 2617
3300 6500 3015 1814 2980 3000
  • There are pneumatic rubber fender of 0.05Mpa & 0.08Mpa internal pressure for choice, kindly contact our service consultant for more details and competitive prices.
  • Pneumatic rubber fender size could be customized according to customer requirement.
  • All accessories could be customized according to customers’ requirement or drawings.

BV Certificate The Inflatable Marine Yokahama Rubber Fender For Ships 1


Ship Fender Features


Unique Design of Henger Pneumatic Rubber Fender


Active-Protecting Safety Valve , All fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.

It is a patented design which could avoid explosion of fenders from collision and air inflation.


Henger Flange is casting of corrosion-resistant iron with galvanized anti-corrosive coating, which will strongly prolong the fender quality and service life. The strength of Henger casting flange improves 40% higher than traditional type.


BV Certificate The Inflatable Marine Yokahama Rubber Fender For Ships 2

Pneumatic rubber fender Definition, features and functions



The Ships fender uses compressed air as the buffer medium, which makes the ship have better anti-collision effect when it is near the ship or dock.



● External wear resistance

● Bearing pressure

● Ageing resistance

● Long service life

● Good air tightness

● Easy storage

● Non deformation

● Simple installation


Functions & Applications

● Installed on the wharf and dock for berthing

● Installed on the shipboard for berthing

● Float chamber

● For moving the cargo

● Pipe seal



Pneumatic rubber fender Structure


1 Outer rubber

The outer rubber layers that covers the outside of fender protects the cord layers and the inner rubber from abrasion and other external forces. This compound has sufficient tensile and tear strength to withstand any weather condition and hard usage. Standard color is black, but other colors are available on request.


2 Inner rubber

The liner of a rubber membrane seals the pressurized air inside the fenders.



3 Synthetic tire cord layers for reinforcement

The reinforcement layers, which are made of synthetic tire cord commonly used in tires, are arranged at ideal angles to hold the internal pressure and to distribute the stress evenly providing strong efficient reinforcement.


4 Beading ring

A steel ring is placed at one end (or both ends) of the fender and holds the end of cord layers.


5 Flange

A steel flange is mounted on the fender, to which an air valve or safety valve can be adapted.


6 Safety valve

Fenders of diameter 2500mm and larger shall be equipped with safety valve for releasing excess internal pressure when the fenders are over-compressed accidentally. Fender which are smaller than 2500mm in diameter, can be equipped with a safety valve if required.


7 Metal accessories

All the relevant metal accessories of pneumatic fenders, include shackles, towing rings, swivels, chain net, are made of stainless steel, which are resistant for sea water corrosion.


BV Certificate The Inflatable Marine Yokahama Rubber Fender For Ships 3


After-sale service

Service and transportation:

The product warranty period of Henger is 24 months, and the average supplier can not reach such a long time, which is also the trust we and customers have in our factory products.

After-sales service we are online 24 hours a day, as long as you have questions we will always be there, there will be professional staff to answer your questions and provide you with technical support.

Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.

BV Certificate The Inflatable Marine Yokahama Rubber Fender For Ships 4

Pneumatic Rubber Fender Application

1. Oil and gas tankers
2. Fast ferries and aluminum vessels
3. Temporary and permanent installations
4. Rapid response and emergencies
5. In ports with extreme tidal variations
6. For ship-to-ship lightering operations
7. For all navy vessels due to low hull pressure and the advantage of a proportional increase of reaction force and energy absorption
