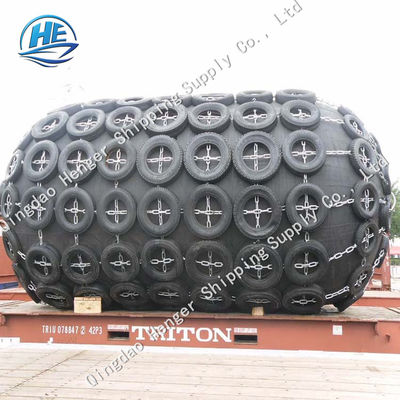

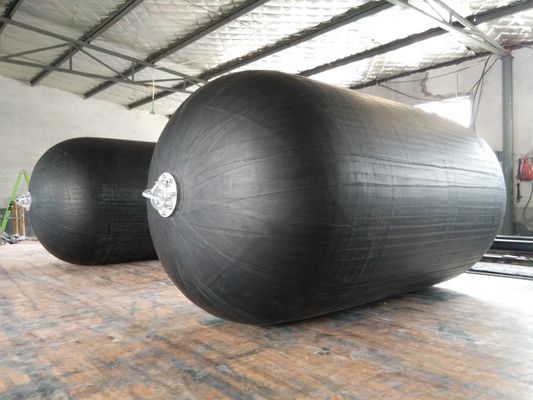

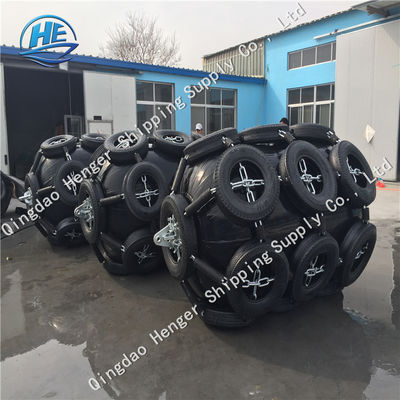

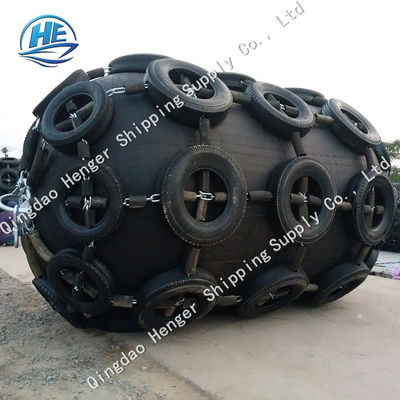

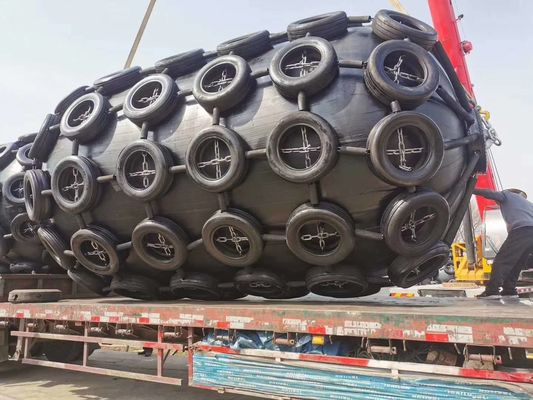

Yokahama Fender Marine Products And Other Rubber Fenders Marine 0.05-0.08Mpa Pneumatic Rubber Fender Picture Show Pneumatic Rubber Fender Type Pneumatic Rubber Fender Parameter Ship Tonnage(T) Recommendation SizeD×L(m) Ship Type 50 0.5*1.0 Fishing ship 100 0.7*1.5~1.0*1.5 Fishing ship 200 1.0*1.5~1...
| Ship Tonnage(T) | Recommendation SizeD×L(m) | Ship Type |
|---|---|---|
| 50 | 0.5*1.0 | Fishing ship |
| 100 |
0.7*1.5~1.0*1.5 |
Fishing ship |
| 200 | 1.0*1.5~1.2*2.0 | Fishing ship,towing ship |
| 300-500 | 1.2*2.0~1.5*2.5 | Fishing ship,towing ship |
| 1000 | 1.5*2.5~1.5*3.0 | Towing ship,cargo ship |
| 3000 | 2.0*3.0~2.0*3.5 | cargo ship,ocean trawler |
| 10000 | 2.0*3.5~2.5*4.0 | cargo ship |
|
1. Safety and Reliability Boat Rubber Fender are constructed of several layers of strong tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the design of this fender is based on accepted theory and has been proven by extensive experimentation. large-size fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure. |
|
2. No Deterioration or Variation in Performance Boat Rubber Fender utilize the compressive elasticity of air, therefore performance deterioration due to fatigue is absent. |
|
3. Advantages at Inclined Berthing Boat Rubber Fender, energy absorption does not decrease at inclined compression up to 15 degrees.
|
|
4. Most Cost Competitive System The utilization of the compressive elasticity of air provides completely uniform surface pressure on contact, making Boat Rubber Fender ideal. The surface pressure of the Boat Rubber Fender is equal to the internal air pressure. Due to low and uniform surface pressure properties, the Henger Pneumatic Rubber Fenders are popular at LNG-ship terminals. |
|
5. Soft Reaction Force for Ship and Jetty Structure The reaction force of Henger Pneumatic Rubber Fenders does not increase sharply, even under excess load conditions. Therefore, the Boat Rubber Fender perform well in such cases, and protect ships and mooring facilities. |
|
6. Lower Mooring Forces under Rough Weather Conditions The reaction force and deflection of Boat Rubber Fender do not easily reach the maximum because the reaction force increases slowly and allowable deflection is wide. Thus, the Henger Pneumatic Rubber Fenders safely protect ships and mooring facilities even under rough weather. |
1. When the Pneumatic rubber fender is not used for a long time, it should be washed and dried, filled with appropriate compressed air, placed in a dry, cool, ventilated place.Inventory temperature is maintained at -15 ℃ -40 ℃ .
2 .The place where the fender is stored should be kept away from the heat source.
3 .Fenders shall not be in contact with acids, alkalis, greases and organic solvents.
4 .When the fenders are not in use, they must not be stacked and should not be stacked on the ba.
In order to better extend the service life of pneumatic rubber fenders, it is recommended that you store them in strict accordance with the above recommendations.
