| Part: | Pneumatic Rubber Fender | Material: | Natural Rubber |
|---|---|---|---|
| Application: | STD,STS | Size: | 3.3x6.5m |
| Warranty Period: | 24 Months | Type: | 50Kpa |
| Diameter: | 0.5m-3.3m | Certification: | CCS BV Certification ISO17357 ISO9001 |
| Length: | 0.5m~12.0m | Design Using Life: | 10 Years |
| High Light: | 50Kpa Pneumatic Rubber Fender,STD Pneumatic Rubber Fender,3.3m Diameter Pneumatic Rubber Fender |
||
QINGDAO HENGER SHIPPING SUPPLIES CO.,LTD provides high-quality Pneumatic Rubber Fender
Lies in Qingdao, a beautiful coastal city. Qingdao Henger Shipping Supplies Co., Ltd
is a high-tech enterprise integrated with manufacturing, research and innovation,
technical services, specialized in manufacturing marine products, such as pneumatic
rubber fenders, foam filled fenders, marine rubber airbags, navigation mark, marine
buoys, highway safety roller barrier. All products get ISO 9001-2008 certificate and
IACS quality authentication from CCS, BV, GL, ABS, LG, etc.
With strong technology base, advanced manufacturing technique, complete
manufacturing facilities and well-equipped checkout equipment, Qingdao Henger
Shipping Supplies Co., Ltd is devoted to forge itself into a top-ranking international
competitive marine products manufacturer providing high quality products and
perfect service for all customers, and shoulder the responsibility of ensuring global
marine safety via mutually beneficial cooperation with friends all over the word .

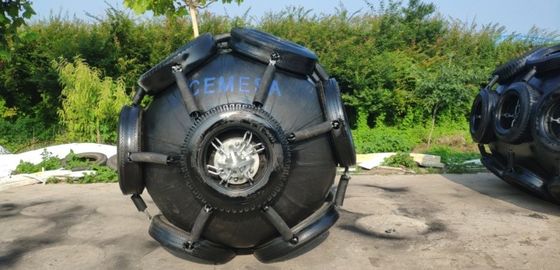

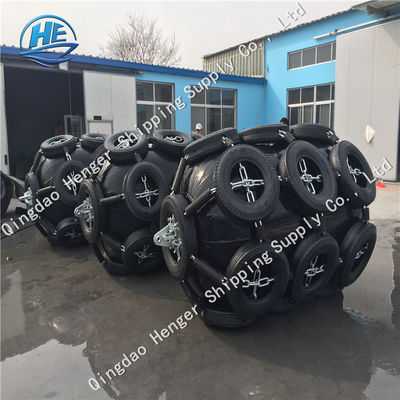

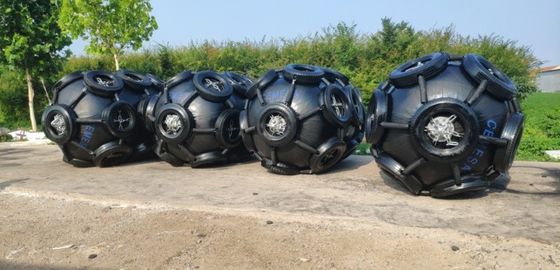

Pneumatic Rubber Fender
Made of natural rubber, the warranty period can reach two years.
Internal structure drawings:
Colors and specifications can be customized, everything meets customer satisfaction.
All parts are ultra-high quality galvanized parts and we are also equipped with installation tools.
The following are the product specifications and detailed parameters:
| Pneumatic 50 fender size and performance requirements | ||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection(R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10 % kN |
Reference value kPa |
||
| 500 x 1000 | 50 | 6 | 64 | 132 |
| 600 x 1000 | 50 | 8 | 74 | 126 |
| 700 x 1500 | 50 | 17 | 137 | 135 |
| 1000 x 1500 | 50 | 32 | 182 | 122 |
| 1000 x 2000 | 50 | 45 | 257 | 132 |
| 1200 x2000 | 50 | 63 | 297 | 126 |
| 1350 x 2500 | 50 | 102 | 427 | 130 |
| 1500 x 3000 | 50 | 153 | 579 | 132 |
| 1700 x 3000 | 50 | 191 | 639 | 128 |
| 2000 x 3500 | 50 | 308 | 875 | 128 |
| 2500 x 4000 | 50 | 663 | 1381 | 137 |
| 2500 x5500 | 50 | 943 | 2019 | 148 |
| 3300 x 4500 | 50 | 1175 | 1884 | 130 |
| 3300 x 6500 | 50 | 1814 | 3015 | 146 |
| 3300 x 10600 | 50 | 3067 | 5257 | 158 |
| 4500 x 9000 | 50 | 4752 | 5747 | 146 |
| 4500 x 12000 | 50 | 6473 | 7984 | 154 |
| Pneumatic 80 fender size and performance requirements | ||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection (R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10% kN |
Reference value kPa |
||
| 500 x 1000 | 80 | 8 | 85 | 174 |
| 600 x 1000 | 80 | 11 | 98 | 166 |
| 700 x 1500 | 80 | 24 | 180 | 177 |
| 1000 x 1500 | 80 | 45 | 239 | 160 |
| 1000 x2000 | 80 | 63 | 338 | 174 |
| 1200 x 2000 | 80 | 88 | 390 | 166 |
| 1350 x 2500 | 80 | 142 | 561 | 170 |
| 1500 x 3000 | 80 | 214 | 761 | 174 |
| 1700 x 3000 | 80 | 267 | 840 | 168 |
| 2000 x 3500 | 80 | 430 | 1150 | 168 |
| 2500 x 4000 | 80 | 925 | 1815 | 180 |
| 2500 x 5500 | 80 | 1317 | 2653 | 195 |
| 3300 x 4500 | 80 | 1640 | 2476 | 171 |
| 3300 x 6500 | 80 | 2532 | 3961 | 191 |
| 3300 x 10600 | 80 | 4281 | 6907 | 208 |
| 4500 x 9000 | 80 | 6633 | 7551 | 192 |
| 4500 x 12000 | 80 | 9037 | 10490 | 202 |
Here are some details:
