12.0m Length Pneumatic 50Kpa Marine Rubber Fender How does the aero fender work? The pneumatic fender or inflatable rubber fender or Yokohama fender compressed air is used as a buffer medium to absorb the impact energy of the ship, so that the ship has more flexibility and flexibility when docking, ...
How does the aero fender work?
The pneumatic fender or inflatable rubber fender or Yokohama fender compressed air is used as a buffer medium to absorb the impact energy of the ship, so that the ship has more flexibility and flexibility when docking, so as to prevent The impact of collisions and collisions.
What type do we have?

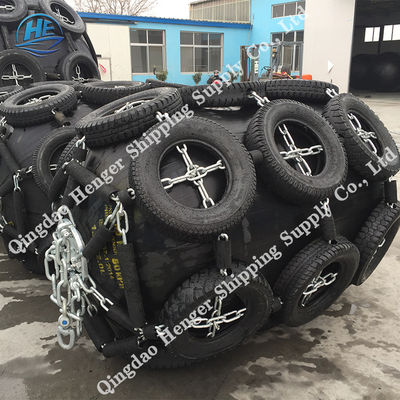

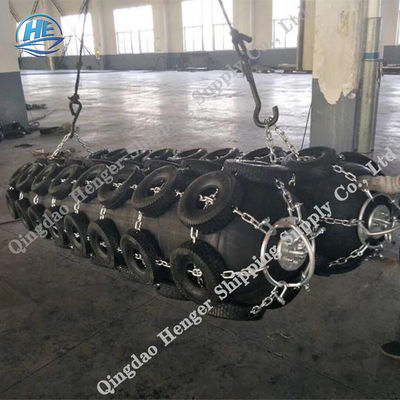

Tire net type: multiple tires are tied to the ball, and both ends are tied to a special flywheel that can rotate flexibly. Suitable for large and reliable balls.
Rubber net type: tie a special rubber pad to the ball, which can be freely contracted or stretched when squeezed. Suitable for medium and small reliable balls.
Line type: The net cover is woven with nylon rope; tightly tied to the ball. It is suitable for small size reliable balls.
Specification parameter table:
| Pneumatic 50 fender size and performance requirements | ||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection(R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10 % kN |
Reference value kPa |
||
| 500 x 1000 | 50 | 6 | 64 | 132 |
| 600 x 1000 | 50 | 8 | 74 | 126 |
| 700 x 1500 | 50 | 17 | 137 | 135 |
| 1000 x 1500 | 50 | 32 | 182 | 122 |
| 1000 x 2000 | 50 | 45 | 257 | 132 |
| 1200 x2000 | 50 | 63 | 297 | 126 |
| 1350 x 2500 | 50 | 102 | 427 | 130 |
| 1500 x 3000 | 50 | 153 | 579 | 132 |
| 1700 x 3000 | 50 | 191 | 639 | 128 |
| 2000 x 3500 | 50 | 308 | 875 | 128 |
| 2500 x 4000 | 50 | 663 | 1381 | 137 |
| 2500 x5500 | 50 | 943 | 2019 | 148 |
| 3300 x 4500 | 50 | 1175 | 1884 | 130 |
| 3300 x 6500 | 50 | 1814 | 3015 | 146 |
| 3300 x 10600 | 50 | 3067 | 5257 | 158 |
| 4500 x 9000 | 50 | 4752 | 5747 | 146 |
| 4500 x 12000 | 50 | 6473 | 7984 | 154 |
| Pneumatic 80 fender size and performance requirements | ||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection (R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10% kN |
Reference value kPa |
||
| 500 x 1000 | 80 | 8 | 85 | 174 |
| 600 x 1000 | 80 | 11 | 98 | 166 |
| 700 x 1500 | 80 | 24 | 180 | 177 |
| 1000 x 1500 | 80 | 45 | 239 | 160 |
| 1000 x2000 | 80 | 63 | 338 | 174 |
| 1200 x 2000 | 80 | 88 | 390 | 166 |
| 1350 x 2500 | 80 | 142 | 561 | 170 |
| 1500 x 3000 | 80 | 214 | 761 | 174 |
| 1700 x 3000 | 80 | 267 | 840 | 168 |
| 2000 x 3500 | 80 | 430 | 1150 | 168 |
| 2500 x 4000 | 80 | 925 | 1815 | 180 |
| 2500 x 5500 | 80 | 1317 | 2653 | 195 |
| 3300 x 4500 | 80 | 1640 | 2476 | 171 |
| 3300 x 6500 | 80 | 2532 | 3961 | 191 |
| 3300 x 10600 | 80 | 4281 | 6907 | 208 |
| 4500 x 9000 | 80 | 6633 | 7551 | 192 |
| 4500 x 12000 | 80 | 9037 | 10490 | 202 |
Qingdao Henger Shipping Supplies Co., Ltd
Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Henger Shipping Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc. With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with friends all over the world.
| Quality is the cornerstone, service is the soul. We continue to provide our customers with stable & reliable quality pneumatic rubber fenders with a comprehensive system of technical support, meticulous and thoughtful after-sales service to win customers trust and satisfaction. Qingdao Henger Shipping Supplies Co., Ltd provides following services to all customers. |
| 1. 24 hours instant online technical consultation and support. |
| 2. 24 months warranty period(without any artificial damage) and free repairing service within warranty period. |
|
3. lifetime reparing service. |
Comparison of Henger Pneumatic Rubber Fender and traditional elastic rubber fender:
1. High impact energy absorption, low impact force on the ship
2. Simple installation
3. Good elasticity, no deformation under the action of compression
4. Lightweight, practical and economical
Thank you for reading. If you have any needs and interests, you can contact me.
| Contact: Miranda |
| Email: miranda@hengergroup.com |
| Whatsapp and Wechat: +86-15853922960 |
