Payment & Shipping Terms:
|Lifespan:||6-10 Years||IP:||50KPa/80KPa (0.05MPa/0.08MPa)|
|Warranty:||12 Months/24 Months||Application:||Submarine Docking Protection|
|Key Word:||Hydro-pneumatic Fender|
maritime international fenders,
commercial boat fenders

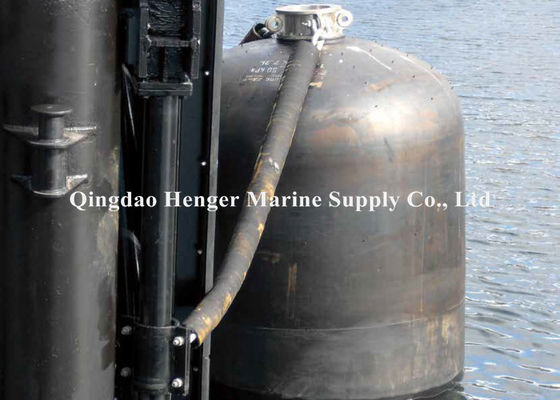

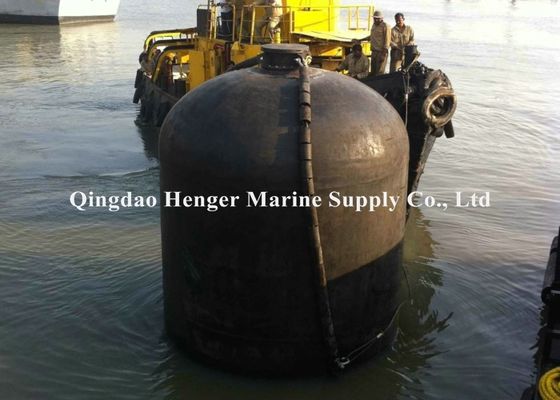

The Hydropneumatic Fender is a special version of the Pneumatic Fender developed for submarines. They are filled with water and air then fitted with a counterweight that holds them upright against submerged hulls, Hydropneumatic Fender are designed to be installed vertically making them ideal for use with submarines or vessels whose impact point is likely to be below the waterline such as Catamarans, Semi-Submersible platforms and Drilling Rigs, protecting submarines and other vessels that make contact below the waterline.
Henger Hydropneumatic Fenders can be performance ‘tuned’ by varying the initial pressure, water to air ratio and ballast weights to suit the hull curvature and sensitivity of the latest submarines.

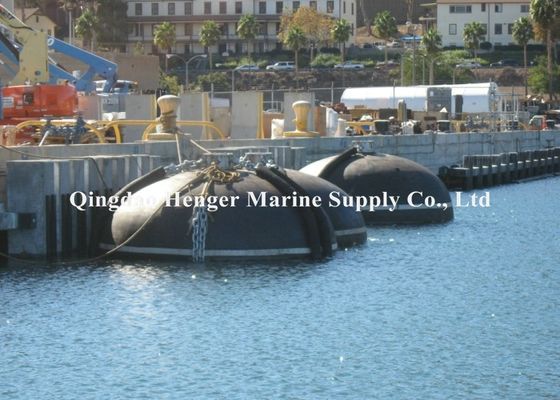

The Hydropneumatic fenders can be installed on most Quay structures and come in a range of sizes to suit the application and a range of vessels.
Hydro-pneumatic Fender Special Features
|1||Performance can be adjusted by altering the air-water ratio|
|2||Required draft can be adjusted|
|3||Low hull pressures|
|4||Self-adjustment during tidal variation|
|5||Low installation and maintenance cost|
Hydro-pneumatic Fender Application
Hydro pneumatic rubber fender is widely applied to the following areas
1. Submarine Jetties
2. Certain Ferry Types
3. Oil Rigs
Hydro-pneumatic Fender Installation Process
Hydro-pneumatic Fender Technical Parameter
Qingdao Henger Marine Supply Co., Ltd
Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Henger Marine Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.
With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with friends all over the world.
Q: What’s the material of your pneumatic fender products ?
A: the main raw materials are natural rubber, synthetic-tyre-cord fabric and customized hardwares, etc.
Q: Are you factory or trading company ?
A: We are manufacturing factory, located in Jimo district,Qingdao city, 1 hour drive to Qingdao port and 40 minutes drive to Qingdao airport, which is convenient in transportation logistics.
Q: Is OEM service available ?
Q: What’s the delivery time and payment terms ?
A: Delivery time is based on product model and order quantity. normally it is around 7-15 working days.
The payment could paid by T/T, L/C, Western Union, Paypal, etc.
Q: What is your company address and contact information ?
A: Qingdao Henger Marine Supply Co., Ltd
Address: Jinkou Industry Park, Jimo District, Qingdao City, Shandong Province, China
Post Code: 266200
Contact Person: Tom
