ISO Standard Submarine Fenders For Protect The Ship

ISO Standard Submarine Fenders For Protect The Ship
ISO Standard Submarine Fenders For Protect The Ship ISO Standard Submarine Fenders For Protect The Ship ISO Standard Submarine Fenders For Protect The Ship ISO Standard Submarine Fenders For Protect The Ship ISO Standard Submarine Fenders For Protect The Ship

Large Image :  ISO Standard Submarine Fenders For Protect The Ship

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: CCS, ABS, LRS, BV, GL, DNV, NK
Model Number: HE-HPF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: NUDE/customized
Delivery Time: 7-15 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100pcs/month
Detailed Product Description
Part: Fender Material: Natural Rubber
Color: Black Application: STS,Ship Fender,STP,Ship Protecting,STD
Product Name: Best Quality Cheapest In Stock Submarine Fender Size: Customized Size
Warranty: 24 Months
High Light:

ISO Standard Submarine Fenders

,

Customized Submarine Fenders

,

Submarine Pneumatic Marine Fender

ISO Standard Submarine Fenders For Protect The Ship

Submarine Type Pneumatic Fender Introduction

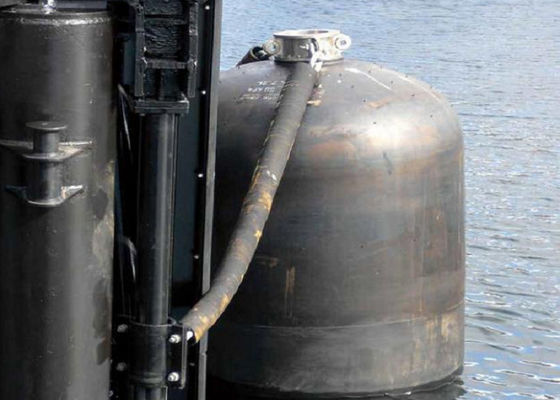

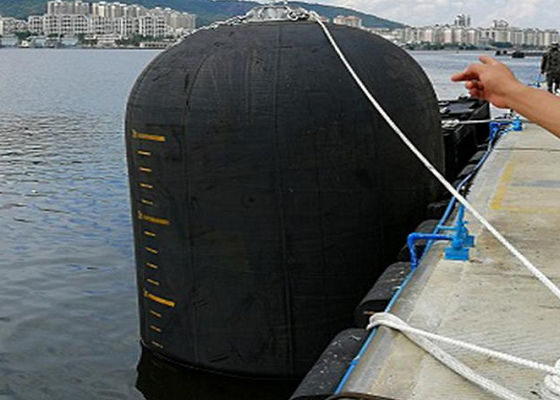

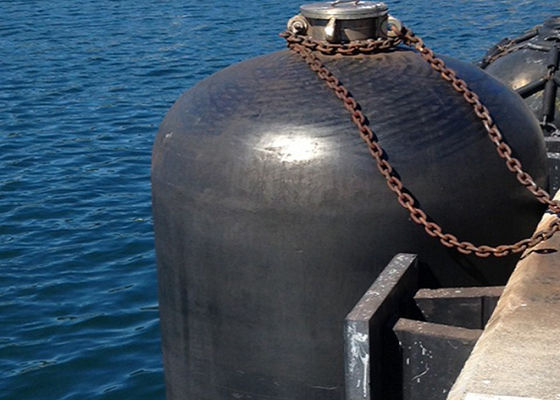

The hydropneumatic fender is a special version of the aerodynamic fender developed for submarines. The inside of the fender is filled with water and air, and then there is a counterweight under the fender, which can stand upright against the diving hull.

The submarine fender is designed to be installed vertically, so it is very suitable for use with submarines or ships whose impact point may be below the waterline.

The performance of Henger Hydro aerodynamic fenders can be "tuned" by changing the initial pressure, the ratio of water to air and the ballast weight to adapt to the hull curvature and sensitivity of the latest submarine. Hydro-pneumatic fenders can be installed on most wharf structures and come in various sizes to suit various applications and various containers.

ISO Standard Submarine Fenders For Protect The Ship 0

Submarine Type Pneumatic Fender Features

Unique design of henger pneumatic rubber fender



The henger fender has an active protection safety valve, and all fenders are equipped with safety valves to release internal air in the event of accidental overpressure, which can achieve absolute safety and prevent explosion.

This is a patented design, which can avoid the fender explosion caused by collision and air expansion, which will be very safe.

ISO Standard Submarine Fenders For Protect The Ship 1

China Hydro Pneumatic Submarine Fender Suppliers FAQ

1. "I have the specifications of the submarine, but I don't know how to choose the size of the submarine fender, can you help me?"

Answer: You don't need to worry. We have more than 20 years of production experience, and can recommend the most reasonable size and quantity of submarines according to the specifications of your submarines.

2. "Because I have not installed and used the submarine fender, can you tell me how to install it?"

Answer: You don't need to worry. We will send the product installation instructions to you before shipment, and you can contact me at any time if you don’t understand.

3. "What is the minimum order quantity for your submarine fender?"

Answer:Our minimum order quantity is 1 piece.

ISO Standard Submarine Fenders For Protect The Ship 2

Submarine Fender System Inflation Process

1. The submarine fender must first install an inflatable rod

2. In the second step, use a wrench to remove the valve core and set it aside.

3. Then connect the quick connector to inflate, the inflation pressure is 0.05-0.08mpa, and the recommended pressure is 0.05mpa.

4. A pressure gauge must be installed during the inflation process to observe the internal inflation pressure to prevent over inflation.

5. Finally, only need to tighten the valve core with a wrench.

ISO Standard Submarine Fenders For Protect The Ship 3

Pneumatic 50 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection(R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10 % kN

Reference value

kPa

500 x 1000 50 6 64 132
600 x 1000 50 8 74 126
700 x 1500 50 17 137 135
1000 x 1500 50 32 182 122
1000 x 2000 50 45 257 132
1200 x2000 50 63 297 126
1350 x 2500 50 102 427 130
1500 x 3000 50 153 579 132
1700 x 3000 50 191 639 128
2000 x 3500 50 308 875 128
2500 x 4000 50 663 1381 137
2500 x5500 50 943 2019 148
3300 x 4500 50 1175 1884 130
3300 x 6500 50 1814 3015 146
3300 x 10600 50 3067 5257 158
4500 x 9000 50 4752 5747 146
4500 x 12000 50 6473 7984 154
Pneumatic 80 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection (R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10% kN

Reference value

kPa

500 x 1000 80 8 85 174
600 x 1000 80 11 98 166
700 x 1500 80 24 180 177
1000 x 1500 80 45 239 160
1000 x2000 80 63 338 174
1200 x 2000 80 88 390 166
1350 x 2500 80 142 561 170
1500 x 3000 80 214 761 174
1700 x 3000 80 267 840 168
2000 x 3500 80 430 1150 168
2500 x 4000 80 925 1815 180
2500 x 5500 80 1317 2653 195
3300 x 4500 80 1640 2476 171
3300 x 6500 80 2532 3961 191
3300 x 10600 80 4281 6907 208
4500 x 9000 80 6633 7551 192
4500 x 12000 80 9037 10490 202
