Type Ⅵ Hydro Pneumatic Type Fender Naval Ships Pneumatic Rubber Fender Chain Tire

Type Ⅵ Hydro Pneumatic Type Fender Naval Ships Pneumatic Rubber Fender Chain Tire
Type Ⅵ Hydro Pneumatic Type Fender Naval Ships Pneumatic Rubber Fender Chain Tire Type Ⅵ Hydro Pneumatic Type Fender Naval Ships Pneumatic Rubber Fender Chain Tire Type Ⅵ Hydro Pneumatic Type Fender Naval Ships Pneumatic Rubber Fender Chain Tire Type Ⅵ Hydro Pneumatic Type Fender Naval Ships Pneumatic Rubber Fender Chain Tire Type Ⅵ Hydro Pneumatic Type Fender Naval Ships Pneumatic Rubber Fender Chain Tire Type Ⅵ Hydro Pneumatic Type Fender Naval Ships Pneumatic Rubber Fender Chain Tire Type Ⅵ Hydro Pneumatic Type Fender Naval Ships Pneumatic Rubber Fender Chain Tire Type Ⅵ Hydro Pneumatic Type Fender Naval Ships Pneumatic Rubber Fender Chain Tire

Large Image :  Type Ⅵ Hydro Pneumatic Type Fender Naval Ships Pneumatic Rubber Fender Chain Tire

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: BV/CCS/SGS/LR/DNV/ABS
Model Number: 3300mm x 6500mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $1000-$1000
Packaging Details: Pallet packaging
Delivery Time: 7-20days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 99
Detailed Product Description
Part: Marine Equipments,Flange,Pneumatic Boat Fender,Marine Fender,pneumatic Rubber Fender Color: Black,Blue,Black/As Requirements,All Color Can Be Accept,Black/White Or Any Color
Material: Natural Rubber,EPDM,SBR,SILICONE,EVA Application: STD,STS,Ships And Boats,Ship Fender,Marine/quay/dock/boat
Size: Customized,D3.3*L6.5m Pneumatic Rubber Fender,ALL,2*3.5m,3.3x6.5m Name: Pneumatic Rubber Fender,Pneumatic Boat Fender,Marine Floating Pneumatic Inflatable Rubber Fender For Sales,Floating Dock Marina Manofacturer,Marine Airbag
Product Name: Pneumatic Rubber Fender,Marine/Dock Fender Warranty Period: 24 Months,3 Years
Type: DO,50Kpa,Pneumatic,D,UV-protection Packing: Normal Packing,Nude Packing/As Requirement,Standard Package
Warranty: 24 Months Diameter: 0.5m-3.3m,0.5~4.5m
Certification: CCS BV Certification ISO17357 ISO9001,ABS,DNV,LR,CCS Usage: Pneumatic Marine Fenders Cone Fender,Protects Ship During Ship-to-ship Operations Or Mooring At Quay,Protect Boat
Length: 0.5m~12.0m,1.0m-6.5m,1~9m Chain: 312,hot Galvanizing Or Stainless Steel(304,316)
Quality: Excellent Design Using Life: 10 Years
Feature: Aging Resistance
High Light:

Type Ⅵ Pneumatic Type Fender

,

Naval Ships Pneumatic Type Fender

,

Naval Ships Pneumatic Rubber Fender

Type Ⅵ Hydro-pneumatic Type Fender

Submarines and other vessels which contact fenders below waterline require a unique solution. Type Ⅵ hydro-pneumatic type fender are specially adapted to this application.

Introduction:



Submarines and other vessels which contact fenders below waterline require a unique solution. Type Ⅵ hydro-pneumatic type fender are specially adapted to this application. The fender body is partially water-filled, then pressurised with air and ballasted to make it stand vertically, fender draft and performance can be tuned by altering the water: air ratio and inflation pressure.

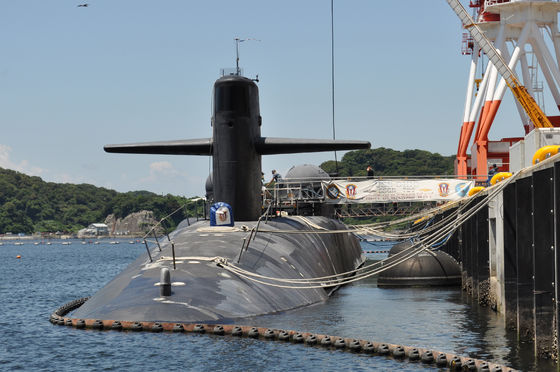

Vertical Submarine Fenders Semi_1



Details Of Type hydro-pneumatic type fender:

Fender size

diameter*length
/mm

Initial internal pressure 50kPa Initial internal pressure 80kPa

Guaranteed energy

absorption (GEA)

Reference value

kPa

Guaranteed energy

absorption (GEA)

Reference value

kPa

500 x 1000 6 67 8 85
600 x 1000 8 74 11 98
700 x 1500 17 137 24 180
1000 x 1500 32 182 45 239
1000 x 2000 45 257 63 338
1200 x2000 63 297 88 390
1350 x 2500 102 427 142 561
1500 x 3000 153 579 214 761
1700 x 3000 191 639 267 840
2000 x 3500 308 875 430 1150
2500 x 4000 663 1381 925 1815
2500 x5500 943 2019 1317 2653
3300 x 4500 1256 1884 1752 2742
3300 x 6500 1814 3015 2532 3961
3300 x 10600 3067 5257 4281 6907
4500 x 12000 6473 7984 9037 10490

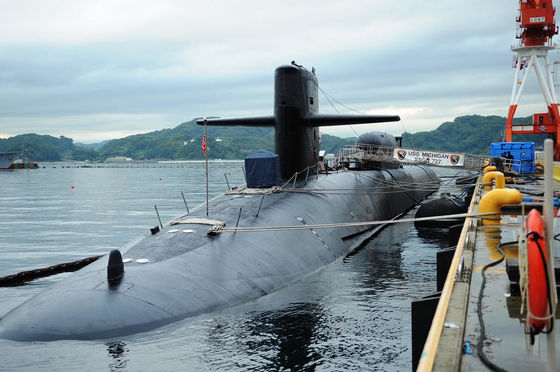

Pacific Marine Submarine Fenders_1



Type hydro-pneumatic type fender Features:



The performance can be adjusted by changing the air-water ratio

The required draft can be adjusted

Low hull pressure

Self-regulation when the tide changes

Low installation and maintenance costs



Water fender_1





FAQ:



1. "I have the submarine's specifications, but I don't know how to choose the submarine's fender size. Can you help me?"

Answer: You don't need to worry at all. We have more than 20 years of production and sales experience. As long as you provide me with the corresponding parameters, we can suggest the appropriate size and number of submarine fenders for you.

2. "I want to try your submarine fender, but I have never used it, and I don't know how to use it. Can you help me?"

Answer: You don't need to worry at all. We will provide you with instructions when shipping, and send them together with the submarine fender. You can contact me if you have any questions during the later installation and use.

3. "What is the minimum order quantity for your submarine fender?"

Answer: Our minimum order quantity is 1PC.



Hydro Pneumatic Type_1



Henger Service:



1. Hener has one-to-one VIP service.

2. Hener has lifetime after-sales service.

3. Hener will recommend the appropriate size and number of submarine fenders and other professional suggestions for you according to the actual situation and the parameters provided by the customer.

4. Any questions about underwater fenders will be answered within 24 hours.

5. Teach customers to use our submarine shields on site.
