|Protective Sleeve:||Rubber Tube||Lifespan:||6-10 Years|
|Application:||Submarine Docking Protection||Diameter:||3300mm|
|Length:||5000mm||Fender Type:||Hydro Pneumatic Type Semi-Submersible Fender|
commercial boat fenders,
sea guard fenders

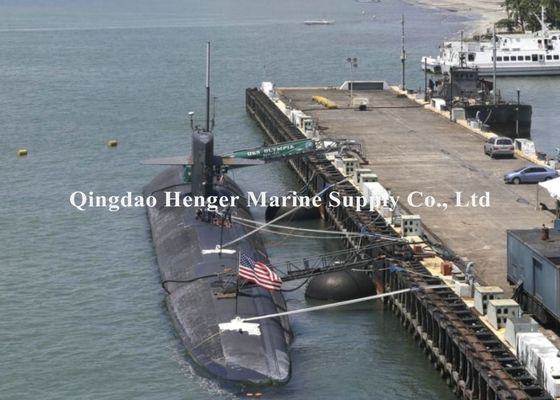

The Hydropneumatic Fender is a special version of the Pneumatic Fender developed for submarines. They are filled with water and air then fitted with a counterweight that holds them upright against submerged hulls, Hydropneumatic Fender are designed to be installed vertically making them ideal for use with submarines or vessels whose impact point is likely to be below the waterline such as Catamarans, Semi-Submersible platforms and Drilling Rigs, protecting submarines and other vessels that make contact below the waterline.
Henger Hydropneumatic Fenders can be performance ‘tuned’ by varying the initial pressure, water to air ratio and ballast weights to suit the hull curvature and sensitivity of the latest submarines.
The Hydropneumatic fenders can be installed on most Quay structures and come in a range of sizes to suit the application and a range of vessels.
Hydro Pneumatic Submarine Fender Special Features
|1||Performance can be adjusted by altering the air-water ratio|
|2||Required draft can be adjusted|
|3||Low hull pressures|
|4||Self-adjustment during tidal variation|
|5||Low installation and maintenance cost|
Hydro Pneumatic Submarine Fender Application
Hydro pneumatic rubber fender is widely applied to the following areas
1. Submarine Jetties
2. Certain Ferry Types
3. Oil Rigs
Hydro Pneumatic Submarine Fender Installation Process
Hydro Pneumatic Submarine Fender Technical Parameter
there is also IP80KPa fender for option
