Product Details:
Payment & Shipping Terms:
|
Material: | EVA, Polyurethane | Certificate: | CCS, DNV, ABS, LRS, ISO90001:2000 |
---|---|---|---|
Usage: | Ship Decking Anti-collision | Color: | Customized |
Packing: | Nude Packing/As Requirement | Application: | STS, STD Protection |
MOQ: | 1 Piece | Warranty: | 24 Months |
Service Life: | 15-20 Years | Size & Shape: | Could Be Customized |
High Light: | foam boat fenders,foam filled boat fenders |
Ship Protective Floating Dock Fenders With High Mechanical Strength
About Henger's Product
♦ Company mainly produces and sells inflatable rubber fenders, EVA polyurethane fenders and marine airbags, and the products are unique formula and advanced production technology.
♦ Company products has passed ISO9001:2000, CCS, DNV, LR ,etc.
♦ Company products are exported to USA, France, Italy, UK, Singapore, Indonesia, Korea and other countries and regions.

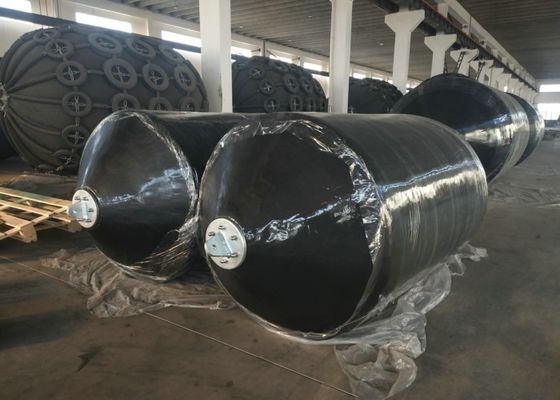

EVA Foam Filled Fender
I. Product Introduction
♦ Introduction:
The EVA foam filled fender uses polyurethane elastomer and as the buffer medium, which makes the ship have better anti-collision effect when it is near the ship or dock.
Polyurethane elastomer is a new kind synthetic polymer whose performance has both advantages of plastic and rubber. The high strength of plastic and good elasticity of rubber.
♦ Advantages Of Polyurethane Elastomer:
● High wear resistance which is 3-5times of nature rubber.
● Excellent oil resistance which is 4times of NBR.
● High mechanical strength.Its tensile intention and tear strength and burden capability are several times of common rubbers.
● Excellent tolerance of acid, alkali, low temperance and organic solvent.
● High metal-bonding performance.
● Wide hardness range from Shore A100 adjustable.
♦ Characteristic:
● Having the capability of floating, not easily influenced by the ebb and flow of the tide.
● Bright colors. Various colors can be offered according to the customers demands.
● Compared with inflatable fender, it boasts the characteristics if safety and maintenance’ free with working life as long as 15 to 30 years, wanting no inflating, resistant to scarification, pricking, friction, seawater, acid and alkali.
● Solid but light,easy to install and move.
● When compressed to 60%, it’s reaction force grows obviously from little to largeness, and energy absorption is very high.
♦ Functions & Applications

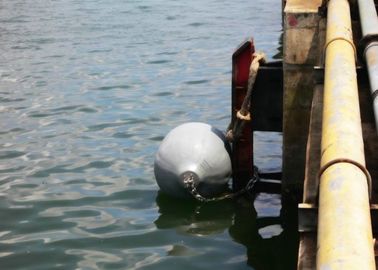

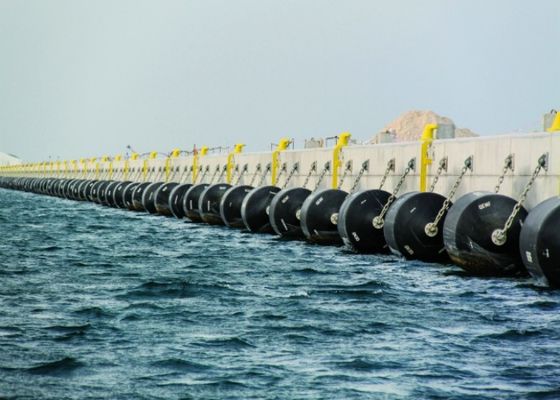

● Installed on the wharf and dock for berthing
● Installed on the shipboard for berthing
● Float chamber
● For moving the cargo
II. Henger's Product Advantage
Type I Fender With Tyre-chain Protective Sleeve
Type II Sling Type
♦ Advantage:
● Good Hydrophobicity
● High Performance of Outer Coating Layer
● Fast and Easy Installation
● Multiple Color Options
● Multiple Form & Size Options
● High energy absorption capability and lower reaction force.
III. Technical Parameter
Model |
D (mm) |
L (mm) |
Compressible 60% |
Weight (kg) |
|
Counter-force (KN) |
Energy Absorption (KJ) |
||||
Ø 500×1000L | 500 | 1000 | 71 | 8 | 34 |
Ø 600×1000L | 600 | 1000 | 86 | 12 | 45 |
Ø 700×1500L | 700 | 1500 | 161 | 27 | 101 |
Ø 1000×1500L | 1000 | 1500 | 205 | 49 | 206 |
Ø 1000×2000L | 1000 | 2000 | 274 | 64 | 275 |
Ø 1200×2000L | 1200 | 2000 | 337 | 93 | 405 |
Ø 1200×2400L | 1200 | 2400 | 390 | 110 | 475 |
Ø 1350×2500L | 1350 | 2500 | 463 | 145 | 626 |
Ø 1500×3000L | 1500 | 3000 | 624 | 216 | 927 |
Ø 1700×3000L | 1700 | 3000 | 696 | 273 | 1191 |
Ø 2000×3500L | 2000 | 3500 | 990 | 456 | 1923 |
Ø 2000×4000L | 2000 | 4000 | 1110 | 505 | 2298 |
Ø 2200×4500L | 2200 | 4500 | 1396 | 679 | 2992 |
Ø 2500×4000L | 2500 | 4000 | 1386 | 781 | 3434 |
Ø 2500×5000L | 2500 | 5000 | 1750 | 985 | 4272 |
Ø 3000×5000L | 3000 | 5000 | 2050 | 1410 | 6411 |
Ø 3000×6000L | 3000 | 6000 | 2460 | 1695 | 7293 |
Ø 3300×6500L | 3300 | 6500 | 2950 | 2245 | 8335 |
Ø 4500×9000L | 4500 | 9000 | 19650 | 7860 | 21460 |
