Product Details:
Payment & Shipping Terms:
|
Material: | Natural Rubber | Color: | Black |
---|---|---|---|
Protective Sleeve: | Nude Protection | Lifespan: | 6-10 Years |
IP: | 50KPa/80KPa (0.05MPa/0.08MPa) | Warranty: | 12 Months/24 Months |
Application: | Docking Anti-collision, STS STD Operation | Diameter: | 0.5-6m |
Length: | 1-10m | Key Word: | Sling Fender |
High Light: | marine boat fenders,hydro pneumatic fender,Inflatable Floating Pneumatic Sling Fender |
1. Sling Fender Introduction
The "Yokohama Fender", also called Yokohama rubber fender, inflatable rubber fender, floating pneumatic rubber fender, air filled floating fender, was developed in 1958. Progress in the development of such floating pneumatic rubber fenders is closely related to the progress and development of ship technology, and has to continuously cope with progressively larger oil tankers such as VLCC's, ULCC's, large gas carriers, bulk carriers and floating structures.
Yokohama Fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships. Since its creation until today, more than millions of fenders have been supplied worldwide both for ship-to-ship and ship-to-dock (STD) operations serving our valuable customers. These fenders play a critical role in the safe operation of ship berthing and mooring.
2. Sling Fender Types
there are many type of Yokohama Fender with various functions based on different protective jacket and design.
Henger could provide OEM service and technical design based on customer requirement and actual demand. contact our sales service for more details.

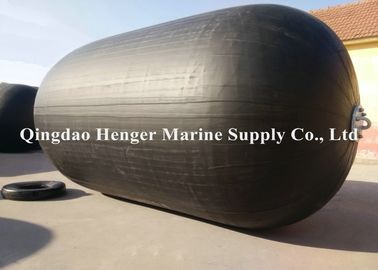

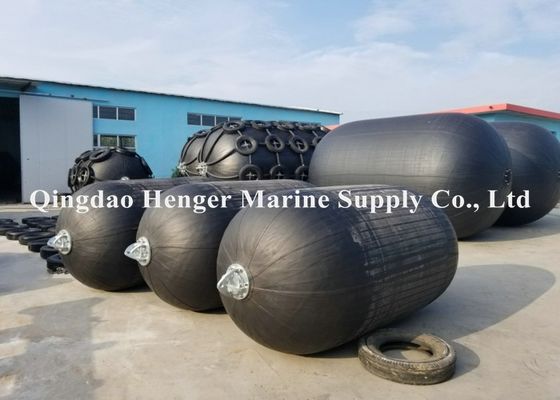

3. Sling Fender Product Show
4. Sling Fender Structure
5. Sling Fender Manufacturing Proces
6. Sling Fender Advantages
6.1. Safety and Reliability
Henger Yokohama Fender are constructed of several layers of strong tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the design of this fender is based on accepted theory and has been proven by extensive experimentation.
large-size fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.
6.2. No Deterioration or Variation in Performance
Henger Yokohama Fender utilize the compressive elasticity of air, therefore
performance deterioration due to fatigue is absent.
6.3. Advantages at Inclined Berthing
Henger Inflatable Floating Yokohama Fender, energy absorption does not decrease at inclined compression up to 15 degrees.
6.4. Most Cost Competitive System
The utilization of the compressive elasticity of air provides completely uniform surface pressure on contact, making Henger Pneumatic Rubber Fenders ideal. The surface pressure of the Inflatable Yokohama Fender is equal to the internal air pressure.
Due to low and uniform surface pressure properties, the Henger Yokohama Fenders are popular at LNG-ship terminals.
6.5. Soft Reaction Force for Ship and Jetty Structure
The reaction force of Henger Yokohama Fender does not increase sharply, even under excess load conditions. Therefore, the Henger Pneumatic Rubber Fenders perform well in such cases, and protect ships and mooring facilities.
6.6. Lower Mooring Forces under Rough Weather Conditions
the reaction force and deflection of Henger Yokohama Fender do not easily reach the maximum because the reaction force increases slowly and allowable deflection is wide. Thus, the Henger Yokohama Fender safely protect ships and mooring facilities even under rough weather.
7. Sling Fender Technical Parameter
Fender Size | Compression Amount (60%) |
Noumenon Weight (Kg) |
Weight with Protective Jacket (Kg) |
||
D (mm) |
L (mm) |
Reaction (KN) |
Energy Absorption (KNm) |
||
500 | 1000 | 64 | 6 | 23 | 35 |
600 | 1000 | 74 | 8 | 28 | 40 |
700 | 1000 | 137 | 17 | 58 | 52 |
1000 | 1500 | 182 | 32 | 82 | 100 |
1000 | 2000 | 257 | 45 | 148 | 152 |
1200 | 2000 | 297 | 63 | 167 | 200 |
1350 | 2500 | 427 | 102 | 220 | 298 |
1500 | 2500 | 499 | 134 | 270 | 300 |
1500 | 3000 | 579 | 153 | 318 | 450 |
1700 | 3000 | 639 | 191 | 380 | 482 |
2000 | 3500 | 875 | 308 | 580 | 890 |
2000 | 4000 | 1000 | 352 | 680 | 1000 |
2500 | 4000 | 1381 | 663 | 1064 | 1180 |
2500 | 5500 | 2019 | 1131 | 1268 | 1380 |
3000 | 5000 | 2422 | 1357 | 1980 | 2388 |
3000 | 6000 | 2906 | 1293 | 2400 | 2690 |
3300 | 4500 | 1884 | 1175 | 2380 | 2617 |
3300 | 6500 | 3015 | 1814 | 2980 | 3000 |
* 1. above Yokohama Fender parameter is based on of 0.05Mpa internal pressure,there is also & 0.08Mpa type for choice, kindly contact our service consultant for more details and competitive prices.
* 2. penumatic fender size could be customized according to customer requirement.
* 3. all accessorires could be customized according to customers' requirement or drawings. |
8. Model Selection
Model Selection of Inflatable Floating Yokohama Fender for Small & Middle Size Ship
Ship Tonnage(T) | Recommendation Size D x L ( m) | Ship Type |
50 | 0.5 x1.0 | Fishing ship |
100 | 0.7 x 1.5~1.0 x 1.5 | Fishing ship |
200 | 1.0 x 1.5~1.2 x 2.0 | Fishing ship, towing ship |
300-500 | 1.2 x 2.0~1.5 x 2.5 | Fishing ship, towing ship |
1000 | 1.5 x 2.5~1.5 x 3.0 | Towing ship, cargo ship |
3000 | 2.0 x 3.0~2.0 x 3.5 | cargo ship, ocean trawler |
10000 | 2.0 x 3.5~2.5 x 4.0 | cargo ship |
Model Selection of Inflatable Floating Rubber Yokohama Fender for Large-tonnage Ship
Ship Tonnage (DWT) |
Assumed Boarding Speed (M/S) |
Effective Kinetic Energy (KN.M) |
Fender Size D*L (m) |
200000 | 0.15 | 1890 | 3.3 x 6.5 |
150000 | 0.15 | 1417 | 3.3 x 6.5 |
100000 | 0.15 | 945 | 3.0 x 5.0 |
85000 | 0.17 | 1031 | 3.0 x 6.0 |
50000 | 0.18 | 680 | 2.5 x 5.5 |
40000 | 0.20 | 672 | 2.5 x 5.5 |
30000 | 0.22 | 609 | 2.5 x 4.0 |
20000 | 0.25 | 525 | 2.5 x 4.0 |
15000 | 0.26 | 425 | 2.5 x 4.0 |
10000 | 0.28 | 329 | 2.0 x 4.0 |
5000 | 0.33 | 228 | 2.0 x 3.5 |
9. Practical Use
Marine Floating Rubber Fender Application
1. large crude oil carrier, VLCC
2. container vessel
3. offshore sea task platform
4. large shipyard and dock
5. large ship and cruise ship
6. army harbor dock
7. large bridge pier
Packing & Delivery
* all packing method and shipping method of pneumatic rubber fenders are done as per to csutomer's requirement.
Qingdao Henger Marine Supply Co., Ltd
Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Henger Marine Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.
With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with friends all over the world.
After Sales Service
Quality is the cornerstone, service is the soul.
We continue to provide our customers with stable & reliable quality pneumatic rubber fenders with a comprehensive system of technical support, meticulous and thoughtful after-sales service to win customers trust and satisfaction.
Qingdao Henger Shipping Supplies Co., Ltd provides following services to all customers.
1. 24 hours instant online technical consultation and support.
2. 24 months warranty period(without any artificial damage) and free repairing service within warranty period.
3. lifetime reparing service.
Q: What’s the material of your pneumatic fender products ?
A: the main raw materials are natural rubber, synthetic-tyre-cord fabric and customized hardwares, etc.
Q: Are you factory or trading company ?
A: We are manufacturing factory, located in Jimo district,Qingdao city, 1 hour drive to Qingdao port and 40 minutes drive to Qingdao airport, which is convenient in transportation logistics.
Q: Is OEM service available ?
A: yes
Q: What’s the delivery time and payment terms ?
A: Delivery time is based on product model and order quantity. normally it is around 7-15 working days.
The payment could paid by T/T, L/C, Western Union, Paypal, etc.
