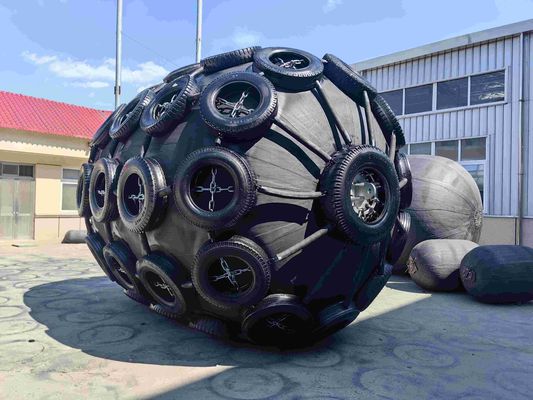

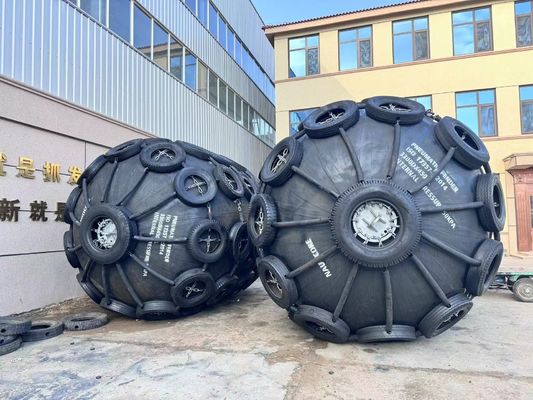

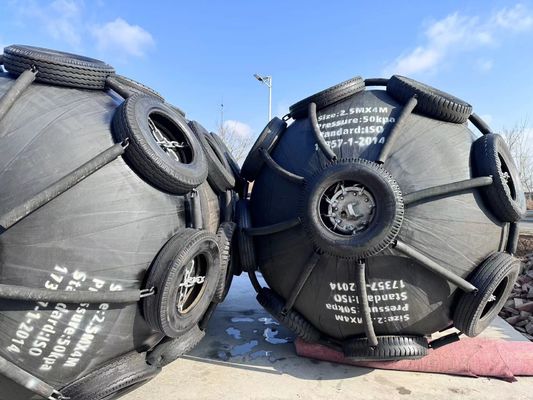

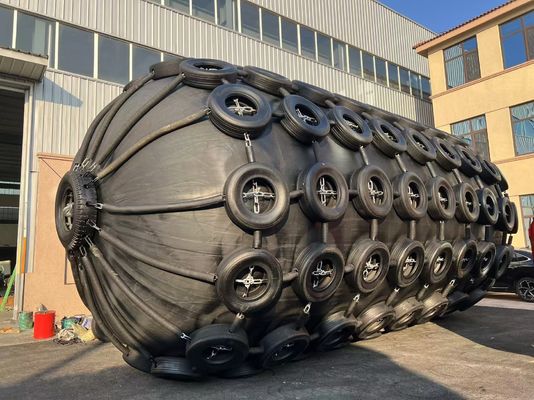

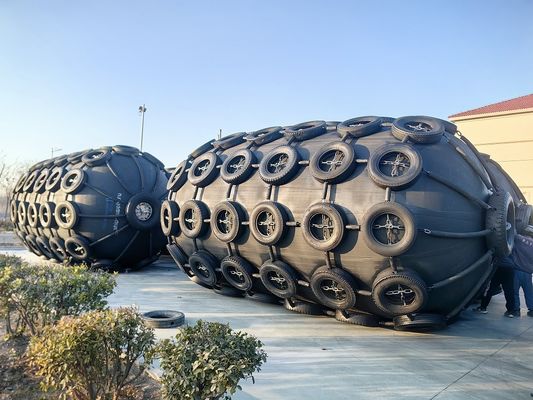

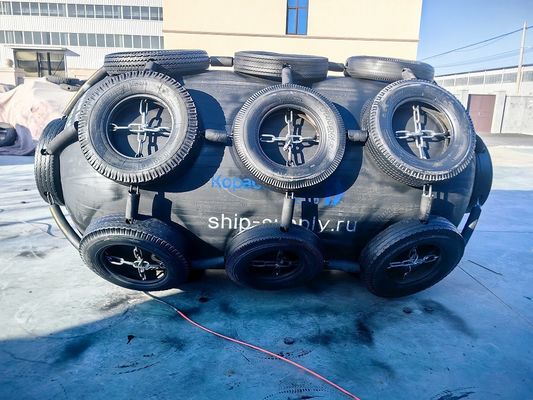

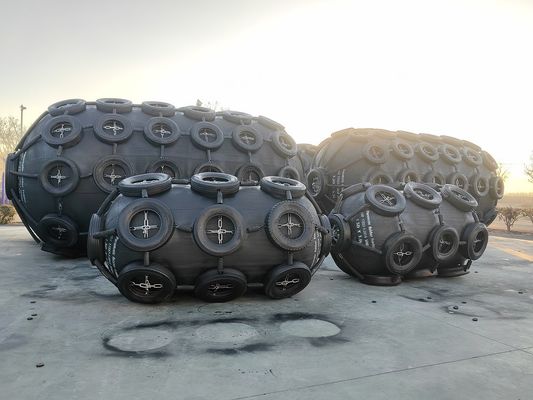

1. Inflatable Rubber Fender Introduction
The "Yokohama Type Inflatable Rubber Fender" was developed in 1958. Progress in the development of such floating inflatable rubber fenders is closely related to the progress and development of ship technology, and has to continuously cope with progressively larger oil tankers such as VLCC's, ULCC's, large gas carriers, bulk carriers and floating structures.
Floating Inflatable Fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships. Since its creation until today, more than millions of fenders have been supplied worldwide both for ship-to-ship and ship-to-dock (STD) operations serving our valuable customers. These fenders play a critical role in the safe operation of ship berthing and mooring.
2. Inflatable Rubber Fender Types
There are many choices for protective jacket of inflatable rubber fender, Henger could also provide OEM
service and technical design based on customer requirement and actual demand. contact our sales service for more details.
3. Henger Inflatable Rubber Fender Advantages
3.1. Safety and Reliability
Henger Inflatable Rubber Fenders are constructed of several layers of strong tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the design of this fender is based on accepted theory and has been proven by extensive experimentation.
Large-size fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.
3.2. No Deterioration or Variation in Performance
Henger Inflatable Rubber Fenders utilize the compressive elasticity of air, therefore
performance deterioration due to fatigue is absent.
3.3. Advantages at Inclined Berthing
Henger Inflatable Rubber Fenders, energy absorption does not decrease at inclined compression up to 15 degrees.
3.4. Most Cost Competitive System
The utilization of the compressive elasticity of air provides completely uniform surface pressure on contact, making Henger Inflatable Rubber Fenders ideal. The surface pressure of the Henger Inflatable Rubber Fenders is equal to the internal air pressure.
Due to low and uniform surface pressure properties, the Henger Inflatable Rubber Fenders are popular at LNG-ship terminals.
3.5. Soft Reaction Force for Ship and Jetty Structure
The reaction force of Henger Inflatable Rubber Fenders does not increase sharply, even under excess load conditions. Therefore, the Henger Inflatable Rubber Fenders perform well in such cases, and protect ships and mooring facilities.
3.6. Lower Mooring Forces under Rough Weather Conditions
The reaction force and deflection of Henger Inflatable Rubber Fenders do not easily reach the maximum because the reaction force increases slowly and allowable deflection is wide. Thus, the Henger Inflatable Rubber Fenders safely protect ships and mooring facilities even under rough weather.
4. Inflatable Rubber Fender Model Selection
Model Selection of Inflatable Fender for Small & Middle Size Ship
|
Ship Tonnage(T) |
Recommendation Size D x L ( m) |
Ship Type |
|
50 |
0.5 x1.0 |
Fishing ship |
|
100 |
0.7 x 1.5~1.0 x 1.5 |
Fishing ship |
|
200 |
1.0 x 1.5~1.2 x 2.0 |
Fishing ship, towing ship |
|
300-500 |
1.2 x 2.0~1.5 x 2.5 |
Fishing ship, towing ship |
|
1000 |
1.5 x 2.5~1.5 x 3.0 |
Towing ship, cargo ship |
|
3000 |
2.0 x 3.0~2.0 x 3.5 |
cargo ship, ocean trawler |
|
10000 |
2.0 x 3.5~2.5 x 4.0 |
cargo ship |
Model Selection of Inflatable Fender for Large-tonnage Ship
|
Ship Tonnage (DWT) |
Assumed Boarding Speed (M/S) |
Effective Kinetic Energy (KN.M) |
Fender Size D*L (m) |
|
200000 |
0.15 |
1890 |
3.3 x 6.5 |
|
150000 |
0.15 |
1417 |
3.3 x 6.5 |
|
100000 |
0.15 |
945 |
3.0 x 5.0 |
|
85000 |
0.17 |
1031 |
3.0 x 6.0 |
|
50000 |
0.18 |
680 |
2.5 x 5.5 |
|
40000 |
0.20 |
672 |
2.5 x 5.5 |
|
30000 |
0.22 |
609 |
2.5 x 4.0 |
|
20000 |
0.25 |
525 |
2.5 x 4.0 |
|
15000 |
0.26 |
425 |
2.5 x 4.0 |
|
10000 |
0.28 |
329 |
2.0 x 4.0 |
|
5000 |
0.33 |
228 |
2.0 x 3.5 |
5. Manufacturing Proces
5.1. raw material prepare
5.2. inner rubber layer produce
5.3. tyre-cord layer produce
5.4. outer rubber layer produce
5.5. ready for vulcanization
5.6.vulcanization process
5.7. after vulcanization
5.8. wind protective tyre sleeve
5.9. finished pneumatic fender
5.10. air tightness test before delivery
5.11.delivery process
5.12. delivery
