Marine Ship Yokohama Type Pneumatic Rubber Fender With Chain Net
Introduction

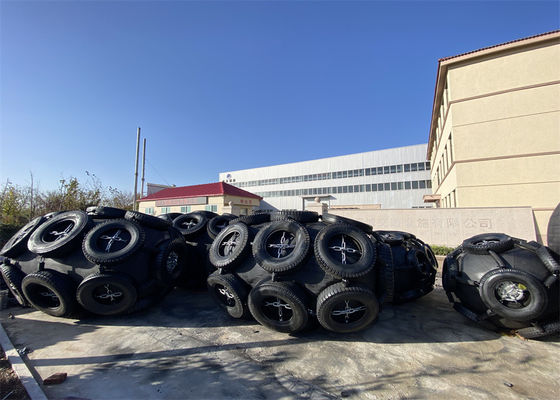

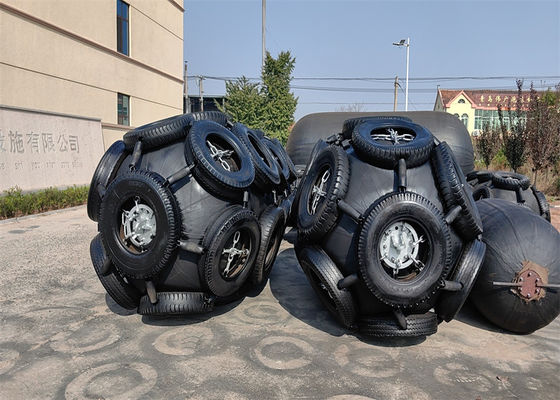

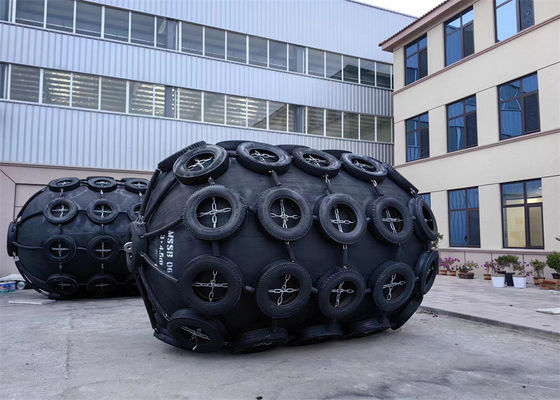

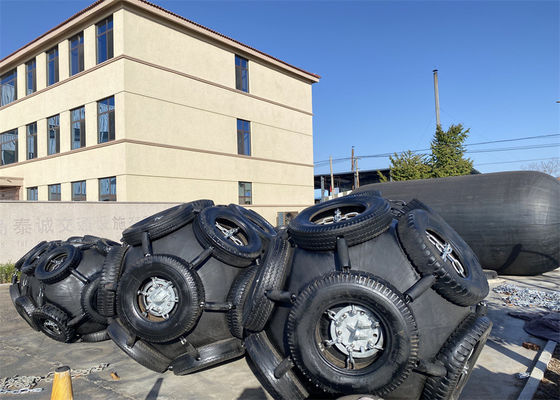

Pneumatic rubber fender (by ball) is a marine anti-collision product made of compressed air. Compressed air is mainly used as the buffer medium to absorb the impact energy of the ship, making the ship more flexible and soft when docking, so as to achieve the effect of collision and collision avoidance. Yokohama type ball is a kind of sheath type ball. Usually aircraft tires or engineering tires are used to wrap the ball. Both ends are equipped with shoulder straps, which are widely used for ship-to-ship transfer operations and ship berthing operations. Wait. The size is: D0.5m x L1.0m ~ D4.5m x L9m. Inflatable fenders (by ball) are produced in strict accordance with ISO17357-2002 and GB/T 21482-2002 international quality standards, and their products are exported to all over the world.
Parameter
|
Pneumatic 50 fender size and performance requirements |
||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) |
Reaction force at GEA deflection(R) |
Hull pressure (Internal pressure) at GEA deflection (P) |
|
Minimum value at deflection 60±5% kJ |
Tolerance±10 % kN |
Reference value kPa |
||
|
500 x 1000 |
50 |
6 |
64 |
132 |
|
600 x 1000 |
50 |
8 |
74 |
126 |
|
700 x 1500 |
50 |
17 |
137 |
135 |
|
1000 x 1500 |
50 |
32 |
182 |
122 |
|
1000 x 2000 |
50 |
45 |
257 |
132 |
|
1200 x2000 |
50 |
63 |
297 |
126 |
|
1350 x 2500 |
50 |
102 |
427 |
130 |
|
1500 x 3000 |
50 |
153 |
579 |
132 |
|
1700 x 3000 |
50 |
191 |
639 |
128 |
|
2000 x 3500 |
50 |
308 |
875 |
128 |
|
2500 x 4000 |
50 |
663 |
1381 |
137 |
|
2500 x5500 |
50 |
943 |
2019 |
148 |
|
3300 x 4500 |
50 |
1175 |
1884 |
130 |
|
3300 x 6500 |
50 |
1814 |
3015 |
146 |
|
3300 x 10600 |
50 |
3067 |
5257 |
158 |
|
4500 x 9000 |
50 |
4752 |
5747 |
146 |
|
4500 x 12000 |
50 |
6473 |
7984 |
154 |
|
Pneumatic 80 fender size and performance requirements |
||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) |
Reaction force at GEA deflection (R) |
Hull pressure (Internal pressure) at GEA deflection (P) |
|
Minimum value at deflection 60±5% kJ |
Tolerance±10% kN |
Reference value kPa |
||
|
500 x 1000 |
80 |
8 |
85 |
174 |
|
600 x 1000 |
80 |
11 |
98 |
166 |
|
700 x 1500 |
80 |
24 |
180 |
177 |
|
1000 x 1500 |
80 |
45 |
239 |
160 |
|
1000 x2000 |
80 |
63 |
338 |
174 |
|
1200 x 2000 |
80 |
88 |
390 |
166 |
|
1350 x 2500 |
80 |
142 |
561 |
170 |
|
1500 x 3000 |
80 |
214 |
761 |
174 |
|
1700 x 3000 |
80 |
267 |
840 |
168 |
|
2000 x 3500 |
80 |
430 |
1150 |
168 |
|
2500 x 4000 |
80 |
925 |
1815 |
180 |
|
2500 x 5500 |
80 |
1317 |
2653 |
195 |
|
3300 x 4500 |
80 |
1640 |
2476 |
171 |
|
3300 x 6500 |
80 |
2532 |
3961 |
191 |
|
3300 x 10600 |
80 |
4281 |
6907 |
208 |
|
4500 x 9000 |
80 |
6633 |
7551 |
192 |
|
4500 x 12000 |
80 |
9037 |
10490 |
202 |
Packing and Shipping
Packaging and Shipping for Pneumatic Rubber Fender
Each Pneumatic Rubber Fender is carefully packaged to ensure its safe arrival at its destination. The packaging process includes:
Wrapping the fender in a protective layer of plastic to prevent damage from moisture and other external factors
Placing the fender in a sturdy cardboard box to provide additional protection during shipping
Securing the box with strong packing tape to prevent it from opening during transit
Labeling the box with the product name, size, and any other necessary information
Once the fender is packaged, it is ready for shipping. We offer various shipping options to accommodate different needs and requirements. Our shipping methods include:
Ground shipping for domestic orders
Air freight for international orders
Express delivery for urgent orders
We take great care in ensuring that your Pneumatic Rubber Fender arrives in perfect condition and on time. Our team closely monitors the shipping process to make sure everything goes smoothly. We also provide tracking information so you can keep track of your order's progress.
Thank you for choosing our Pneumatic Rubber Fender. We are confident that it will meet your expectations and provide excellent protection for your vessel.
FAQ
Q: What is the brand name of this product? A: The brand name of this product is Henger.
Q: What is the model number of this product? A: The model number of this product is HER.
Q: Where is this product manufactured? A: This product is manufactured in China.
Q: Is this product certified? A: Yes, this product is certified by BV / CCS.
Q: What is the minimum order quantity for this product? A: The minimum order quantity for this product is 1pc.
Q: What is the price range of this product? A: The price range for this product is USD 300-6000.
Q: How is this product packaged? A: This product is packaged in pallets, nude, iron frames, etc.
Q: How long is the delivery time for this product? A: The delivery time for this product is 10 days.
Q: What are the payment terms for this product? A: The payment terms for this product are TT.
Q: What is the supply ability for this product? A: The supply ability for this product is 200 pcs per month.
