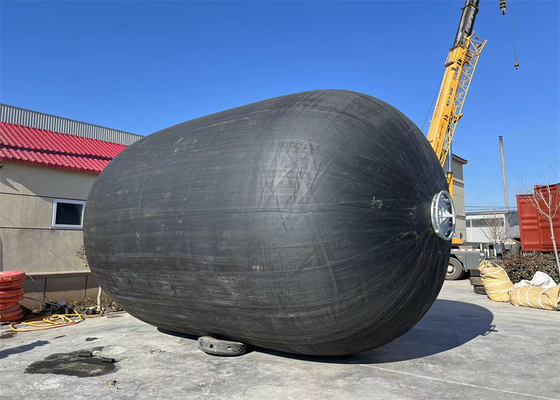

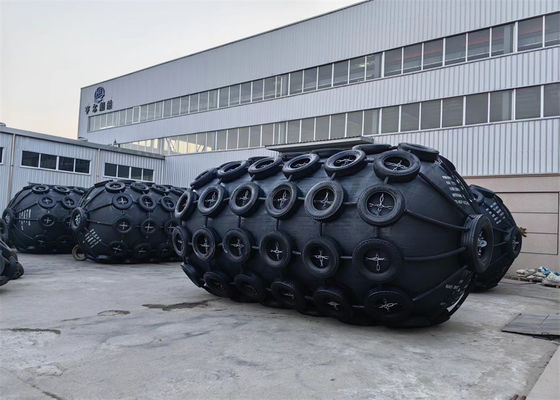

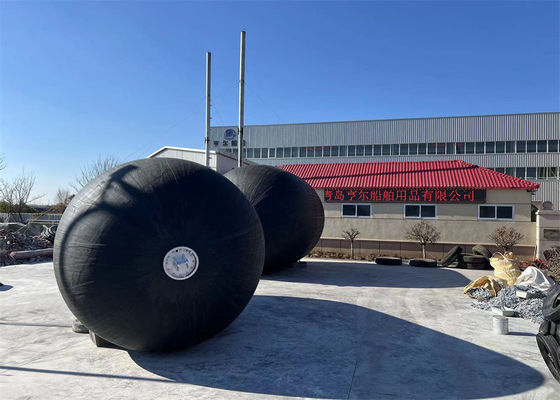

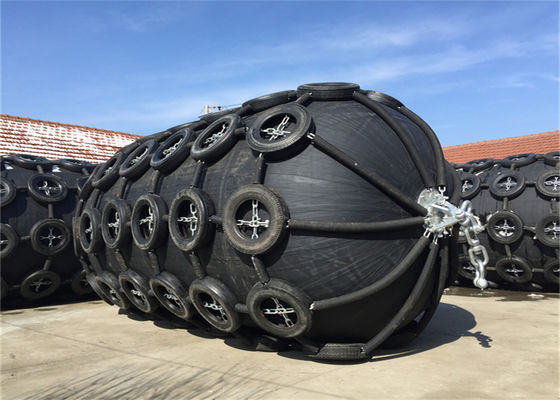

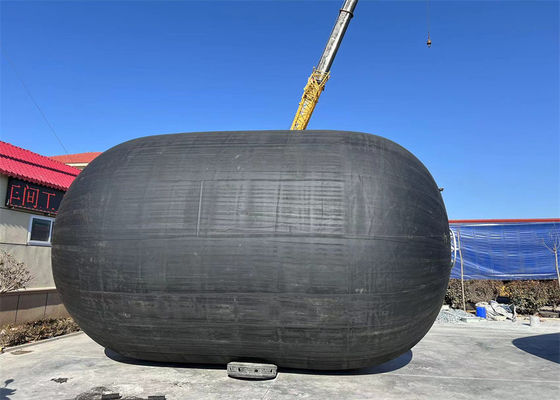

Floating Marine Fender Yokohama Pneumatic Natural Rubber Fender With Chain Net

Pneumatic Rubber Fender

The Pneumatic Rubber Fender is an air-inflated fender that is widely used in marine and offshore applications for ship-to-ship and ship-to-dock operations. It is also known as Pneumatic Cushion Fender or Pneumatic Rubber Fender, and is designed to absorb the impact energy between the ship and the dock or between two ships, thereby protecting the vessels and the dock from damage.

Size

The size of the Pneumatic Rubber Fender can be customized according to the specific needs of the customers. This ensures that the fender fits perfectly with the different sizes and types of vessels, providing maximum protection.

The Pneumatic Rubber Fender is made of high-quality rubber material that is resistant to abrasion, corrosion, and harsh marine environments. Additionally, it is reinforced with stainless steel (SS) for added strength and durability, making it a reliable and long-lasting choice for marine and offshore applications.

In conclusion, the Pneumatic Rubber Fender is a versatile and high-performing product that offers customized size options, wide temperature range, two initial internal pressure choices, readily available stock, and durable materials. With its excellent shock absorption capabilities and easy installation, it is the go-to fender for ensuring the safety of ships and docks in various marine operations.

The advantages of the Pneumatic Rubber Fends:

1. Guaranteed energy absorption
2. Thick skin construction
3. Good angular performance
4. Less surface pressure onto the side wall of ships. (The capability of accepting surface pressure of the fender is up to 14 ton/m2).
5. No reduction on the performance of compression when inclined.
6. Especially in mooring of large scale ships in sea docks and lightering.

Pneumatic Rubber Fender Introduction

1 Outer rubber

The outer rubber layers that covers the outside of fender protects the cord layers and the inner rubber from abrasion and other external forces. This compound has sufficient tensile and tear strength to withstand any weather condition and hard usage. Standard color is black, but other colors are available on request.

2 Inner rubber

The liner of a rubber membrane seals the pressurized air inside the fenders.

3 Synthetic tire cord layers for reinforcement

The reinforcement layers, which are made of synthetic tire cord commonly used in tires, are arranged at ideal angles to hold the internal pressure and to distribute the stress evenly providing strong efficient reinforcement.

Inflatable Rubber Fender Technical Parameter

The Pneumatic Rubber Fender comes in two different initial internal pressure options - 50Kpa and 80Kpa. The higher the internal pressure, the more energy it can absorb, making it suitable for larger and heavier vessels.

Pneumatic Rubber Fender Application

The are two typical installation type: ship to ship operation and ship to dock operation.

a. ship to ship operation

Generally speaking, two contact points are enough for the light duty ship to ship operation. But 1 or 2 extra pneumatic rubber fender should be used as the primary fender to absorb the berthing energy for the heavy duty ship to ship operation, and keep proper stand-off distance between two ships. Meanwhile, two or more small-size fenders can be hung on the ship hull as the secondary fender.

b. ship to dock operation

Pneumatic fenders are often used for the ship to quay operation because of its excellent performance. The pneumatic fenders are anchored with quay by the guy chain and shackles. Meanwhile, the pneumatic fender can be floated on the water surface depend on the change of tide.

Packing & Delivery

After Sales Service

Quality is the cornerstone, service is the soul.

We continue to provide our customers with stable & reliable quality inflatable rubber fenders with a comprehensive system of technical support, meticulous and thoughtful after-sales service to win customers trust and satisfaction.

Qingdao Henger Shipping Supplies Co., Ltd provides following services to all customers.

1. 24 hours instant online technical consultation and support.

2. 24 months warranty period(without any artificial damage) and free repairing service within warranty period.

3. lifetime reparing service.
