| Material: | Rubber | Color: | Black |
|---|---|---|---|
| Protective Sleeve: | Tyre-chain Net, Rubber Tube For Option | Lifespan: | Long |
| Warranty: | 24 Months | Application: | Marine |
| Compression: | 25%-60% | Durability: | High |
| Installation: | Easy | Pressure: | 50kpa/80kpa |
| Shape: | Cylindrical | Size: | Customized |
| Temperature: | -20℃-50℃ | ||
| High Light: | 50Kpa Yokahama Fender,Chain Tire Net Yokahama Fender,2000x3500mm Pneumatic Rubber Fender |
||

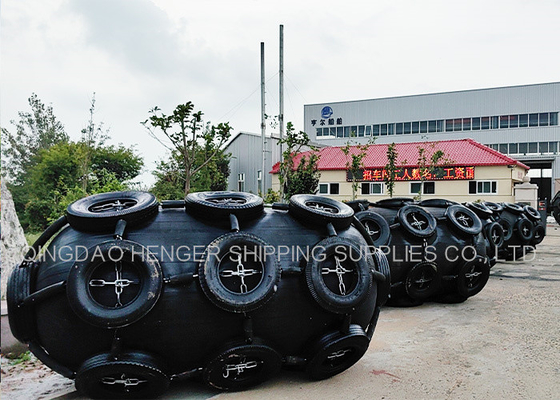

Inflatable rubber fender (by ball) is a marine anti-collision product made of compressed air. Compressed air is mainly used as the buffer medium to absorb the impact energy of the ship, making the ship more flexible and soft when docking, so as to achieve the effect of collision and collision avoidance. Yokohama type ball is a kind of sheath type ball. Usually aircraft tires or engineering tires are used to wrap the ball. Both ends are equipped with shoulder straps, which are widely used for ship-to-ship transfer operations and ship berthing operations. Wait. The size is: D0.5m x L1.0m ~ D3.3m x L6.5m. Inflatable fenders (by ball) are produced in strict accordance with ISO17357-2002 and GB/T 21482-2002 international quality standards, and their products are exported to all over the world.
| Pneumatic 50 fender size and performance requirements | ||||
|
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection(R) | Hull pressure (Internal pressure) at GEA deflection (P) |
| Minimum value at deflection 60±5% kJ | Tolerance±10 % kN |
Reference value kPa |
||
| 500 x 1000 | 50 | 6 | 64 | 132 |
| 600 x 1000 | 50 | 8 | 74 | 126 |
| 700 x 1500 | 50 | 17 | 137 | 135 |
| 1000 x 1500 | 50 | 32 | 182 | 122 |
| 1000 x 2000 | 50 | 45 | 257 | 132 |
| 1200 x2000 | 50 | 63 | 297 | 126 |
| 1350 x 2500 | 50 | 102 | 427 | 130 |
| 1500 x 3000 | 50 | 153 | 579 | 132 |
| 1700 x 3000 | 50 | 191 | 639 | 128 |
| 2000 x 3500 | 50 | 308 | 875 | 128 |
| 2500 x 4000 | 50 | 663 | 1381 | 137 |
| 2500 x5500 | 50 | 943 | 2019 | 148 |
| 3300 x 4500 | 50 | 1175 | 1884 | 130 |
| 3300 x 6500 | 50 | 1814 | 3015 | 146 |
| 3300 x 10600 | 50 | 3067 | 5257 | 158 |
| 4500 x 9000 | 50 | 4752 | 5747 | 146 |
| 4500 x 12000 | 50 | 6473 | 7984 | 154 |
"Henger" management system has passed ISO9001:2008 certification, "Henger" guarantees the high standards and excellent performance of all products. "Henger" attaches great importance to the quality control of rubber fenders, and each fender is tested according to ISO17357:2002 requirements.
Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
