Material: | Rubber | Color: | Black |
---|---|---|---|
Protective Sleeve: | Tyre-chain Net, Rubber Tube For Option | Lifespan: | Long |
Warranty: | 24 Months | Application: | Marine |
Compression: | 25%-60% | Durability: | High |
Installation: | Easy | Pressure: | 50kpa/80kpa |
Shape: | Cylindrical | Size: | Customized |
Temperature: | -20℃-50℃ | ||
High Light: | 3300x6500 Yokohama Fender,STS Yokohama Type Fender 50kpa,Ship To Ship Pneumatic Fender |
Pneumatic Fender, also known as Yokohama Fender, is a common floating fender that is used to protect ships and avoid collisions during ship operations. They are also commonly used in the seaport of the wharf to protect ships during berthing operations.
Fender Type | Rope type, Net type, Tire mesh type |
Materials | Natural Rubber |
Diameter | 500mm to 4500mm |
Length | 1000mm to 12000mm |
Initial Pressure | 50kPa and 80kPa |
Application | Ship-to-ship, ship-to-port |
Certificates | CCS, ABS, BV, LR, KR, etc |
Pneumatic fender is made of the synthetic-cord-reinforced rubber sheet with compressed air inside, at an initial pressure of 50kpa or 80kpa, to enable it to float on the water and work as a shock absorber between two ships. As a leading anti-collision device, pneumatic fenders have a long and successful history of protecting vessels in mooring operations. They are ideal for permanent and semi-permanent port applications, as well as for offshore ship-to-ship transfers. Our fenders are fast and easy to install, keeping suitable clearances between the hull and the jetty or vessels. its aim is to minimize potential damage during berthing operations. These fenders play a critical role in the safe operation of ship berthing.
The Structures of Pneumatic Fenders:
Pneumatic fender is constructed of an inner rubber, synthetic-tire-cord layer, and outer rubber. All of those shall be vulcanized firmly and proven by compress test.
Pneumatic 80 fender size and performance requirements | ||||
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection (R) | Hull pressure (Internal pressure) at GEA deflection (P) |
Minimum value at deflection 60±5% kJ | Tolerance±10% kN |
Reference value kPa |
||
500 x 1000 | 80 | 8 | 85 | 174 |
600 x 1000 | 80 | 11 | 98 | 166 |
700 x 1500 | 80 | 24 | 180 | 177 |
1000 x 1500 | 80 | 45 | 239 | 160 |
1000 x2000 | 80 | 63 | 338 | 174 |
1200 x 2000 | 80 | 88 | 390 | 166 |
1350 x 2500 | 80 | 142 | 561 | 170 |
1500 x 3000 | 80 | 214 | 761 | 174 |
1700 x 3000 | 80 | 267 | 840 | 168 |
2000 x 3500 | 80 | 430 | 1150 | 168 |
2500 x 4000 | 80 | 925 | 1815 | 180 |
2500 x 5500 | 80 | 1317 | 2653 | 195 |
3300 x 4500 | 80 | 1640 | 2476 | 171 |
3300 x 6500 | 80 | 2532 | 3961 | 191 |
3300 x 10600 | 80 | 4281 | 6907 | 208 |
4500 x 9000 | 80 | 6633 | 7551 | 192 |
4500 x 12000 | 80 | 9037 | 10490 | 202 |
How does the pneumatic fender work?
The pneumatic fender uses compressed air as a buffer medium to absorb the impact energy of the ship when the two ships are close or the ship is close to the dock, so that the ship can avoid big losses due to collision. At the same time, the ship has more flexibility when docking.
What types of pneumatic fenders can we provide?
Rope Type: The net cover is woven with nylon rope and tied tightly to the ball. Suitable for small boats.
Rubber Net Type: a special rubber pad is tied to the sphere, which can be freely contracted or stretched when squeezed Suitable for small and medium-sized vessels.

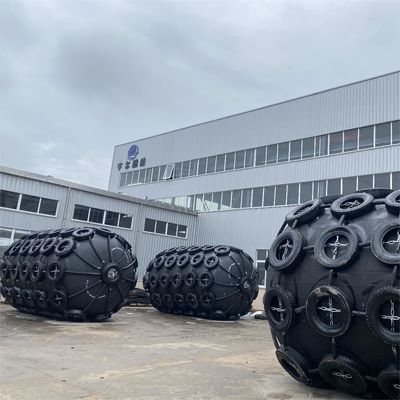

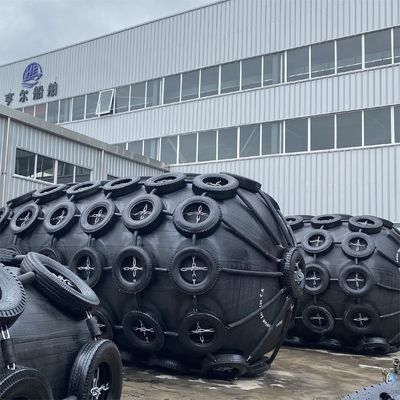

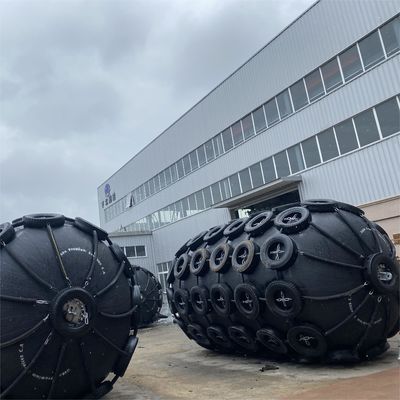

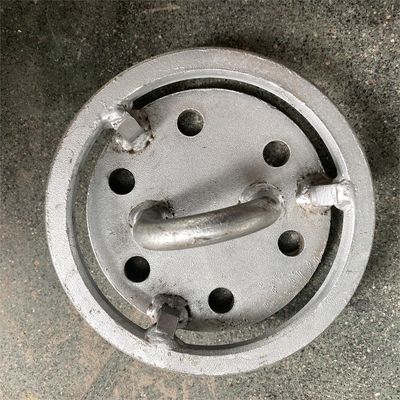

Tire Mesh Type: multiple tires are tied to the ball, and the two ends are tied to a special fly ring that can rotate flexibly. Suitable for large ships.
FAQ
What does ISO 17357-1:2014 define?
Why ship launching airbags are not the same as Pneumatic Fenders.
