Product Details:
Payment & Shipping Terms:
|
Material: | Rubber | Size: | D:0.5~4.5m L:1~9m |
---|---|---|---|
Aplication: | Dock Ship Protecrion;STS Protection | Color: | Customized |
MOQ: | 1 Piece | Warranty: | 24 Months |
Service Life: | 15-20 Years | Packing: | Pallet/Nude |
High Light: | STS Protection Rubber Fender,STS Pneumatic Floating Fender,ISO17357 Standard Rubber Fender |
Pneumatic 50 fender size and performance requirements | ||||
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection(R) | Hull pressure (Internal pressure) at GEA deflection (P) |
Minimum value at deflection 60±5% kJ | Tolerance±10 % kN |
Reference value kPa |
||
500 x 1000 | 50 | 6 | 64 | 132 |
600 x 1000 | 50 | 8 | 74 | 126 |
700 x 1500 | 50 | 17 | 137 | 135 |
1000 x 1500 | 50 | 32 | 182 | 122 |
1000 x 2000 | 50 | 45 | 257 | 132 |
1200 x2000 | 50 | 63 | 297 | 126 |
1350 x 2500 | 50 | 102 | 427 | 130 |
1500 x 3000 | 50 | 153 | 579 | 132 |
1700 x 3000 | 50 | 191 | 639 | 128 |
2000 x 3500 | 50 | 308 | 875 | 128 |
2500 x 4000 | 50 | 663 | 1381 | 137 |
2500 x5500 | 50 | 943 | 2019 | 148 |
3300 x 4500 | 50 | 1175 | 1884 | 130 |
3300 x 6500 | 50 | 1814 | 3015 | 146 |
3300 x 10600 | 50 | 3067 | 5257 | 158 |
4500 x 9000 | 50 | 4752 | 5747 | 146 |
4500 x 12000 | 50 | 6473 | 7984 | 154 |
Pneumatic 80 fender size and performance requirements | ||||
Nominal size diameter x length mm |
Initial internal pressure kPa |
Guaranteed energy absorption (GEA) | Reaction force at GEA deflection (R) | Hull pressure (Internal pressure) at GEA deflection (P) |
Minimum value at deflection 60±5% kJ | Tolerance±10% kN |
Reference value kPa |
||
500 x 1000 | 80 | 8 | 85 | 174 |
600 x 1000 | 80 | 11 | 98 | 166 |
700 x 1500 | 80 | 24 | 180 | 177 |
1000 x 1500 | 80 | 45 | 239 | 160 |
1000 x2000 | 80 | 63 | 338 | 174 |
1200 x 2000 | 80 | 88 | 390 | 166 |
1350 x 2500 | 80 | 142 | 561 | 170 |
1500 x 3000 | 80 | 214 | 761 | 174 |
1700 x 3000 | 80 | 267 | 840 | 168 |
2000 x 3500 | 80 | 430 | 1150 | 168 |
2500 x 4000 | 80 | 925 | 1815 | 180 |
2500 x 5500 | 80 | 1317 | 2653 | 195 |
3300 x 4500 | 80 | 1640 | 2476 | 171 |
3300 x 6500 | 80 | 2532 | 3961 | 191 |
3300 x 10600 | 80 | 4281 | 6907 | 208 |
4500 x 9000 | 80 | 6633 | 7551 | 192 |
4500 x 12000 | 80 | 9037 | 10490 | 202 |
1. Oil and gas tankers
2. Fast ferries and aluminum vessels
3. Temporary and permanent installations
4. Rapid response and emergencies
5. In ports with extreme tidal variations
6. For ship-to-ship lightering operations
7. For all navy vessels due to low hull pressure and the advantage of a proportional increase of reaction force and energy absorption
1.Material text of rubber
2.Dimensional Inspection
3.Air-leakage test
4.Hydrostatic - pressure test
5.Parallel compression test
6.Angular compression test
7.Durability test
8.Compression-recovery test
9.Puncture-Resistance test
10.Confirmation of synthetic-type-cord or reinforce
11.Test report witness by DNV, GL
1. When the Pneumatic rubber fender is not used for a long time, it should be washed and dried, filled with appropriate compressed air, placed in a dry, cool, ventilated place.Inventory temperature is maintained at -15 ℃ -40 ℃ .
2 .The place where the fender is stored should be kept away from the heat source.
3 .Fenders shall not be in contact with acids, alkalis, greases and organic solvents.
4 .When the fenders are not in use, they must not be stacked and should not be stacked on the ba. In order to better extend the service life of pneumatic rubber fenders, it is recommended that you store them in strict accordance with the above recommendations.

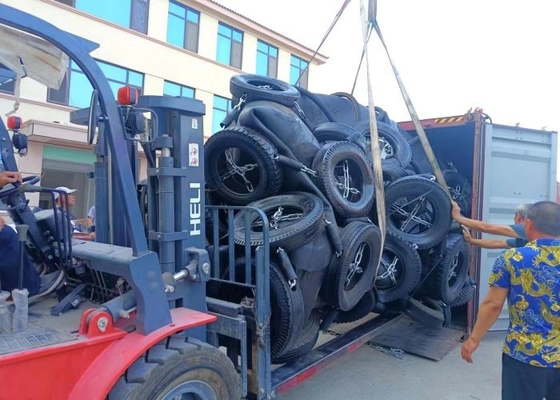

Packing & Delivery
For shipping, we generally choose deflated packaging to suit the size of the container and save you sea freight to the greatest extent.
At the same time, we will provide the free inflation tool with the goods. When you receive the fenders, you can use an air compressor to inflate them locally. Attached are our instruction manual and maintenance book for your reference.
