BV certificate STS yokohama type pneumatic marine rubber buoy fenders

1. Yokohama Type Rubber Fender

The Yokohama type pneumatic fender is a bumper with air as bumping media. Impact energy is absorbed by compressed air so that the ship can berth softly to protect the ship from bumping. The rubber fender is widely used for oil tankers, container vessels, yachts, ocean platforms, large wharf and naval ports, etc. It is suitable for ship berthing of all directions and has been widely used in many types of ship berthing in ports. It has various sizes of D0.5m*L1m – D5m*L12m. It can be protected by tire net chains and can be also used without the tire net as well. The Yokohama fender is for sale at Henger which is a professional manufacturer for marine equipment in china, the most reliable price guaranteed.

2. Inflatable Rubber Fender Types

There are many choices for protective jacket of inflatable rubber fender, Henger could also provide OEM

service and technical design based on customer requirement and actual demand. contact our sales service for more details.

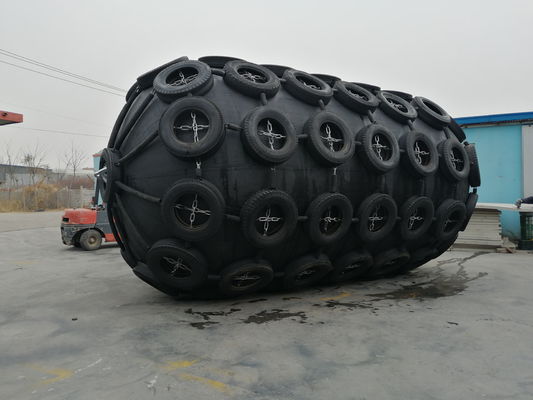

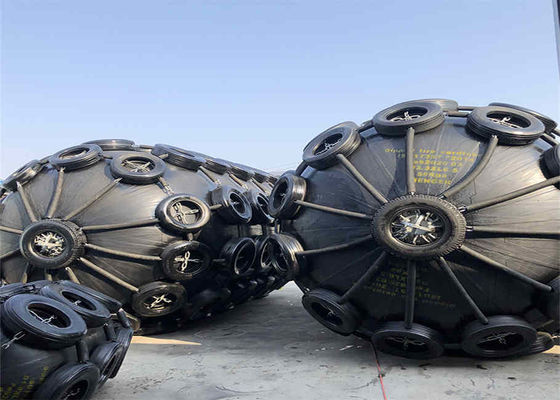

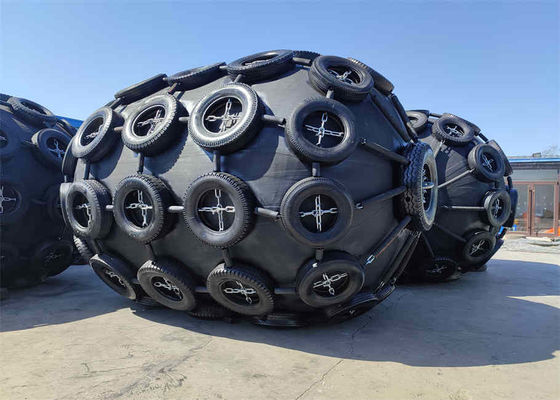

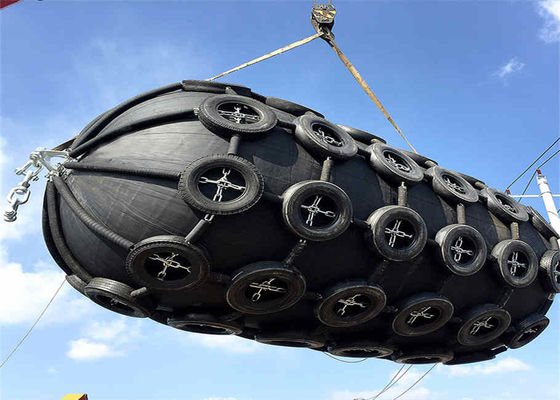

3. Tyre-chain Protective Jacket Type Inflatable Fender Product Show

• Henger Inflatable Rubber Fender Structure

1. Outer Rubber

Cover outside on the ball of rubber layer, which is used to protect skeleton material and inner rubber ball from damage of external force, the main features: high strength, wear resistance, ageing resistance and tear resistance.

2. Synthetic cord reinforced rubber layer

Reinforced cord rubber layer is composed of winding Synthetic cord layer, It is mainly used for maintain the internal air pressure, which has good elasticity, no deformation and high power etc.

3. Inner Rubber

On the ball inside the rubber layer, which is used to prevent air leakage and control the ball pressure.

4. Flange opening

The metal parts at both ends of fender, which can be fitted with charging valve and safety valve.

Synthetic-tyre-cord layers commonly used in tyres, have been proved to provide strong efficient reinforcement layers in fenders. Each layer is coated with rubber compound on both sides as well as in between synthetic-tyre-cord threads, hence isolating all cords from each other.

5. Fender Proces

6. Henger Inflatable Rubber Fender Advantages

6.1. Safety and Reliability

Henger Inflatable Rubber Fenders are constructed of several layers of strong tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the design of this fender is based on accepted theory and has been proven by extensive experimentation.

Large-size fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.

6.2. No Deterioration or Variation in Performance

Henger Inflatable Rubber Fenders utilize the compressive elasticity of air, therefore

performance deterioration due to fatigue is absent.

6.3. Advantages at Inclined Berthing

Henger Inflatable Rubber Fenders, energy absorption does not decrease at inclined compression up to 15 degrees.

6.4. Most Cost Competitive System

The utilization of the compressive elasticity of air provides completely uniform surface pressure on contact, making Henger Inflatable Rubber Fenders ideal. The surface pressure of the Henger Inflatable Rubber Fenders is equal to the internal air pressure.

Due to low and uniform surface pressure properties, the Henger Inflatable Rubber Fenders are popular at LNG-ship terminals.

6.5. Soft Reaction Force for Ship and Jetty Structure

The reaction force of Henger Inflatable Rubber Fenders does not increase sharply, even under excess load conditions. Therefore, the Henger Inflatable Rubber Fenders perform well in such cases, and protect ships and mooring facilities.

6.6. Lower Mooring Forces under Rough Weather Conditions

The reaction force and deflection of Henger Inflatable Rubber Fenders do not easily reach the maximum because the reaction force increases slowly and allowable deflection is wide. Thus, the Henger Inflatable Rubber Fenders safely protect ships and mooring facilities even under rough weather.

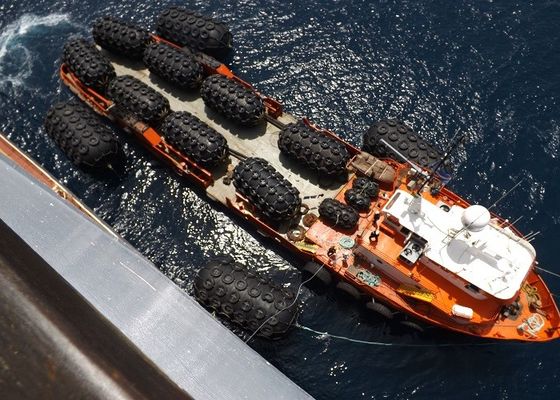

It can easily be deflated which allows simple and cost-effective relocation and re-commissioning in other locations. Pneumatic rubber fenders have the merits of high-pressure resistance, high-energy absorption low reaction, aging resistance and saltwater corrosion resistance. They support berthing at angles up to 15 degrees for oil tankers, container vessels, bulwark carriers, yachts, ocean platforms, large wharf and naval ports, etc. We have two types of molded pneumatic fenders: pneumatic rubber fenders equipped with chain-tire-net wildly used for ship to ship transfer operations and hydro pneumatic fenders equipped with counterweight and ballast water designed for a submarine berth, which can be installed vertically. The ISO 17357:2014 compliant chain-tire net pneumatic fender (CTN) is a lattice of used tires connected by a network of horizontal and vertical chains, which adds further protection to the fender body. The chains are galvanized for greater corrosion resistance and covered by rubber sleeves to prevent abrasive damage to the outer rubber. The horizontal chains are fastened at each end to a ring shackle. The rubber fender are supplied with two different inside pressure levels to cover a wide performance range, 50kPa & 80kPa,

Packing & Delivery

Delivery Packaging

Qingdao Henger yokohama floating pneumatic rubber fender have two shipment ways for our clients to choose, infate way(with air) and deflate way(without air) to transport. For bigger size fenders, it had better to ship without air, aim to help you to save much transportation cost.

After Sales Service

Quality is the cornerstone, service is the soul.

We continue to provide our customers with stable & reliable quality inflatable rubber fenders with a comprehensive system of technical support, meticulous and thoughtful after-sales service to win customers trust and satisfaction.

Qingdao Henger Shipping Supplies Co., Ltd provides following services to all customers.

1. 24 hours instant online technical consultation and support.

2. 24 months warranty period(without any artificial damage) and free repairing service within warranty period.

3. lifetime reparing service.
