ISO 14409 Customizable Inflatable Rubber Fenders for Boats In And Out Of Water

Key Attributes
Brand Name: Henger
Model Number: MRA-1
Place of Origin: China
Certification: BV,CCS,LR,DNV,ABS
Minimum Order Quantity: 1unit
Price: usd200-2000/units
Supply Ability: 3-4unit/day
Delivery Time: 5-8days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,
Standard Packaging: Pallet

Product Summary

ISO 14409 Customizable Inflatable Rubber Fenders To Help Boats Get In And Out Of The Water Rubber ship Airbags also known as rubber airbag, ship launching airbag, ship salvage airbag, inflatable airbag, ship lifting bag, air balloon, made by rubber & multi-layer of rubber-dipped tyre fabric. ...

Product Custom Attributes

Highlight

Customizable Inflatable Rubber Fenders

,

ISO 14409 Inflatable Rubber Fenders

,

Multilayer Marine Rubber Airbag

Material:
Natural Rubber
Color:
Black
Certificate:
ISO14409
Product Description

ISO 14409 Customizable Inflatable Rubber Fenders To Help Boats Get In And Out Of The Water

Rubber ship Airbags also known as rubber airbag, ship launching airbag, ship salvage airbag, inflatable airbag, ship lifting bag, air balloon, made by rubber & multi-layer of rubber-dipped tyre fabric.

ISO 14409 Customizable Inflatable Rubber Fenders for Boats In And Out Of Water

Appropriate ship specifications should be selected. For example, if the width of the ship is 10m, airbags of 10m length should be selected, not 9m (too small), let alone more than 10m (wasteful of resources and money). If there is really no specific grasp, it is best to tell us the specifications of the ship, we will help to design a most appropriate ship airbag; In addition, the number of air bag layers must reach the standard, because if the ship is too big and the number of air bag layers is too low, it can not withstand high pressure, and there will be the risk of explosion.



Specifications(ISO14409 Standard)
Usually the diameter and number of skeleton layers of the airbag are provided by the customer.
Besides, we can also recommend appropriate size according to the information provided by customers, such as ship tonnage and ship working height, etc..
NanjingDeers ND-4 Intensive Air Bag for Ship Launching
Diameter
Working pressure
Working height
Bearing capacity
KN/m
Ton/m
D=1.0m
0.14Mpa
0.6m
87.96
8.98
0.5m
109.96
11.22
0.4m
131.95
13.46
D=1.2m
0.12Mpa
0.7m
94.25
9.62
0.6m
113.10
11.54
0.5m
131.95
13.46
0.4m
150.80
15.39
D=1.5m
0.10Mpa
0.9m
94.25
9.62
0.8m
109.96
11.22
0.7m
125.66
12.82
0.6m
141.37
14.43
0.5m
157.08
16.03
D=1.8m
0.09Mpa
1.1m
98.96
10.10
1.0m
113.10
11.54
0.9m
127.33
12.98
0.8m
141.37
14.43
0.7m
155.51
15.87
0.6m
169.65
17.31
D=2.0m
0.08Mpa
1.2m
100.53
10.26
1.1m
113.10
11.54
1.0m
125.66
12.82
0.9m
138.23
14.11
0.8m
150.80
15.39
0.7m
163.36
16.67
0.6m
175.93
17.95

ISO 14409 Customizable Inflatable Rubber Fenders for Boats In And Out Of Water

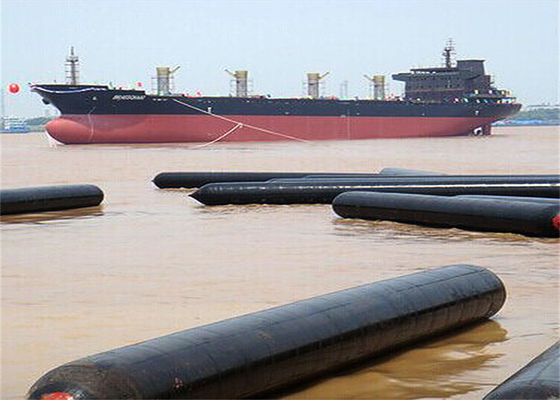

Rubber Marine ship Airbags are widely used in launching and landing ship/ boat/vessel, lifting and moving heavy goods, salvaging stranded boats.Marine airbags are very popular with shipyard, ship owner, and marine supplies company now.

ISO 14409 Customizable Inflatable Rubber Fenders for Boats In And Out Of Water

ISO 14409 Customizable Inflatable Rubber Fenders for Boats In And Out Of Water

ISO 14409 Customizable Inflatable Rubber Fenders for Boats In And Out Of Water



ISO 14409 Customizable Inflatable Rubber Fenders for Boats In And Out Of Water

Marine Rubber Airbag is china independent intellectual property rights of innovative products, the products are mainly applied to ship launching and landing, weight lifting and moving, installation of underwater buoyancy aid to salvage sunken vessels etc. Airbags launching technology was developed based on traditional slipway launching mode, it overcomes the restrictions of traditional slipway launching mode. Our marine rubber airbags are less limited by space, no large mechanical equipment, can shorten the working period and save the unnecessary cost. Through years of development practice, our products are become more safety, effective and green environmental protection and they can launching a ship up to 100,000 DWT. Nowadays, Marine rubber airbags are widely used in the world.

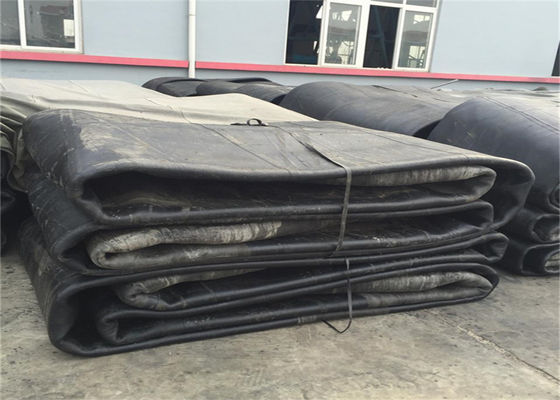

Henger Marine Rubber Airbags structure is consists of the outer rubber layer synthetic cord reinforced rubber layers and inner rubber layer.

Its shape characteristics: central body cylindrical + tapered on both ends.

Cord layers: 4,5,6,7,8,9,10, layers

Accessories: Pressure gage, Inlet valve, Pipe fitting and seal end ring.

ISO 14409 Customizable Inflatable Rubber Fenders for Boats In And Out Of Water



ISO 14409 Customizable Inflatable Rubber Fenders for Boats In And Out Of Water

Marine laucing airbags characteristics:
1.High strength:The polyamide cord thread for airbag is produced with high tension reinforced fiber.A cord thread has the strength more than 320N, and the cord fabric has consistent and reliable quality.Our company developed and manufactured high strength airbags with the higher strength steel wires and aramid fiber as skeleton materials on customers' request.

2.Wear resistance and anti-aging:An airbag often works in extreme conditions, for example, it is soaked in sea water, insolated in the direct sunlight and rolled in sand.Our marine is produced with natural rubber in a reasonable formula.The practice proves that airbag has high wear resistance and anti-aging ability, and the service life as long as 8-10 years.

3.Good air tightness:Our Company use high quality rubber, as material and the advanced manufacture process to assure that our products have good air tightness, especially air tightness of the assisted floated airbag.Our airbag can keep its pressure 24 hours with work pressure, the pressure will reduce less than 3%.

4.Safety and reliability:Giyo marine airbag with the optimized structure design has the safety coefficient of 4-6 times, namely that its bursting pressure is 4-6 times its work pressure.Our airbag has a multi-channel airbag mouth to enhance the strength and air tightness between the airbag body and mouth.

ISO 14409 Customizable Inflatable Rubber Fenders for Boats In And Out Of Water

When the airbags are not to be used for a long period of time, they should be drained,cleaned,dried,filled with talc powder, and the exterior surfaces should be coated with talc powder. The airbags should be maintained in a dry,ventilated room and be protected from light. The airbags should be stored in a relaxed condition free from tension,compression or other deformation.



Qingdao Henger Shipping Supplies Co., Ltd



Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Henger Shipping Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.
