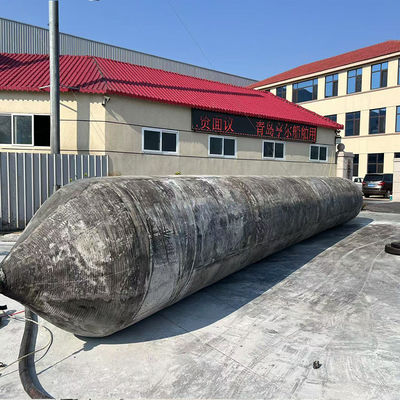

Product Description Heavy-Duty Marine Rubber Airbag with 4-12 Layers and Repair Kit Premium marine solution featuring heavy-duty rubber airbags constructed from durable synthetic tire cord, designed for demanding marine applications including salvaging, ship launching, and cargo carrying. Product ...
| Application | Salvaging, Ship Launching and Ashoring, Cargo Carrying |
| Condition | New |
| Transport Package | Pallet |
| Material | Rubber |
| Diameter | 0.8-3 M |
| Length | 4-25 M |
| Diameter (m) | Medium Pressure (4-5) | High Pressure (6-8) | ||
|---|---|---|---|---|
| Test Pressure | Working Pressure | Test Pressure | Working Pressure | |
| 1.0 | 0.14-0.16 | 0.12-0.14 | 0.22-0.26 | 0.20-0.24 |
| 1.2 | 0.12-0.14 | 0.10-0.12 | 0.20-0.24 | 0.17-0.22 |
| 1.5 | 0.10-0.12 | 0.08-0.10 | 0.15-0.20 | 0.13-0.18 |
| 1.8 | 0.08-0.10 | 0.07-0.09 | 0.13-0.16 | 0.11-0.14 |
| 2.0 | 0.07-0.09 | 0.06-0.08 | 0.12-0.15 | 0.10-0.13 |
| Diameter (m) | Effective Length (m) | Layer | Pressure (MPa) |
|---|---|---|---|
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 | 0.07~0.13 |
Marine Rubber Airbag Application
Ship Launching & Upgrading
With more than 20 years development in China, marine rubber airbag is proved to be the most reliable and stable technique for ship launching & upgrading. It is applicable from tons of flat board to ten thousand tons of huge ship. Meanwhile, marine rubber airbag is also widely acknowledged by foreign dockyards, shipyards, port/harbour construction companies. Ship launching & upgrading technique with marine rubber airbag is also highly promoted in the markets, such as America, Europe, Southeast Asia.
Weight Lifting & Moving
Marine rubber fend could be applied to caisson lifting, launching, moving and transporting in port constructing projects
Buoyancy Aid & Salvage
Because marine rubber airbag has buoyancy force and load-bearing capacity, it is also widely used in sunken vessel salvage and Buoyancy Aid.
