Customized Pneumatic Inflatable Rubber Fenders Easy To Transport And Use

Hot-Selling Models Can Be Customized Inflatable Rubber Fenders, Easy To Transport And Use

The use and characteristics of inflatable rubber fenders

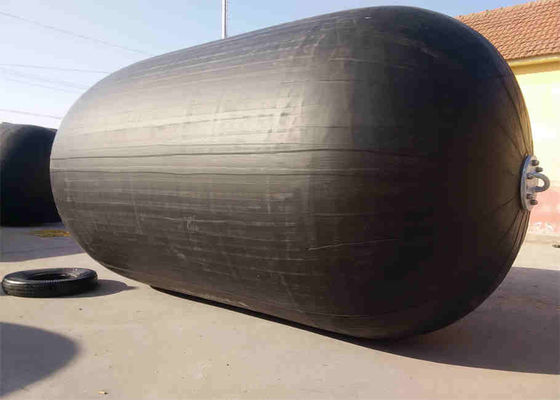

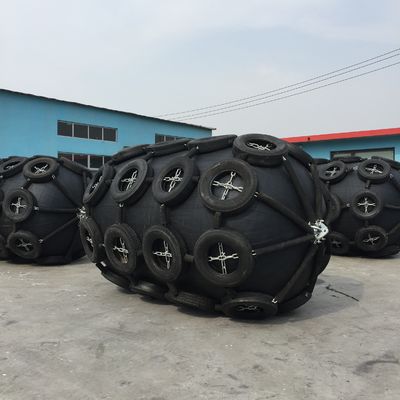

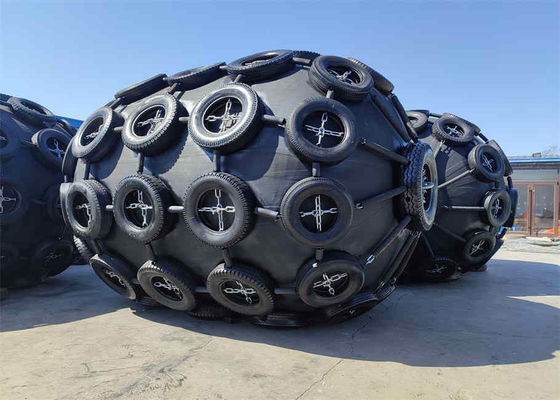

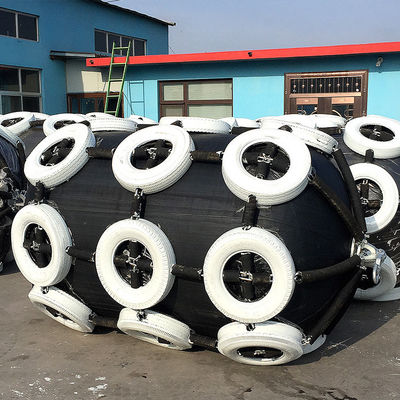

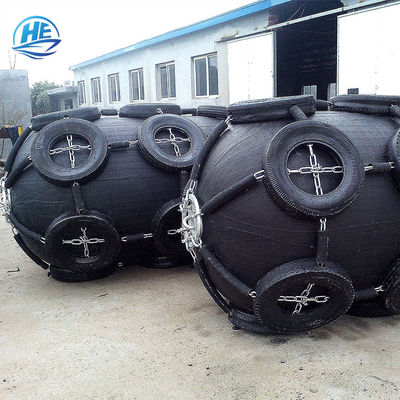

Inflatable rubber fender (ball-based) is a compressed air marine anti-collision product. It mainly uses compressed air as a buffer medium to absorb the impact energy of the ship, making the ship more flexible and soft when docking, so as to achieve the effects of collision avoidance, collision avoidance and avoidance. Yokohama ball is a kind of sheathed ball, which is usually wrapped with aircraft tires or engineering tires, and has shoulder straps at both ends, so it is widely used in transshipment operations between ships and ship berthing operations. It is used to protect the hull and ensure the safe driving of the hull. The dimensions are: D0.5m x L1.0m ~ D3.3m x L6.5m. The inflatable fenders (by the ball) are produced in strict accordance with ISO17357-2002 and GB/T 21482-2002 international quality standards, and the products are exported to all over the world.

Features:

1. The inflatable liner has good quality and high energy absorption.

2. It has good floating performance and can adapt to the needs of tide level changes

3. It can be used for hull collision prevention between ships, and it can also be used for wharfs to protect ships from docking safely

4. Simple installation, long service life, and can be stored in a deflated state when not in use

The following factors should be considered in the selection of pneumatic fenders:

Composition of inflatable rubber fenders
It is composed of inner and outer rubber, nylon cord reinforcement layer and end flange
1. Outer glue

The rubber layer that covers the outside of the ball is used to protect the ball's frame material and rubber inner layer from external damage or abrasion. Main features: high strength, wear resistance and tear resistance.

2. Nylon cord reinforcement layer

The reinforcement layer is wound by layers of nylon thread and maintained by the air pressure inside the ball. It has the advantages of no deformation, high resilience and high strength.

3. Inner glue

The rubber layer on the inner wall of the ball is used to prevent gas leakage and maintain the air pressure of the ball.

4. End flange

The metal parts at both ends of the ball can be installed with inflation valve and safety valve

Remarks: 1. Reaction force and energy absorption tolerance ±10% 2. Weight tolerance ±10% 3. Special dimensions can be manufactured upon request

Quality Control and Management:

Xincheng inflatable rubber fenders have passed ISO9001:2008 quality management system certification, and each fender is manufactured according to ISO17357 standard and GB/T21482-2008 requirements.
