STS Yokohama Type Ship Marine Pneumatic Rubber Fender With Chain And Tires Net

STS Yokohama Type Ship Marine Pneumatic Rubber Fender With Chain And Tires Net

Qingdao Henger Shipping Supplies Co., Ltd

Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Henger Shipping Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.

With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with friends all over the world.

The Yokohama type pneumatic fender is a bumper with air as bumping media. Pneumatic Fenders are available in diameters ranging from 300 mm to 5,000 mm and lengths ranging from 500 mm to 12,000 mm, as well as special sizes.

Pneumatic floating fender is mainly composed of inner rubber, synthetic-tyre-cord layer for reinforcement, outer rubber and other metal parts. All the floating fender parts are combined as a whole after high temperature vulcanization, therefore the floating pneumatic fenders have many advantages.

1 Outer rubber
The outer rubber layers that covers the outside of fender protects the cord layers and the inner rubber from abrasion and other external forces. This compound has sufficient tensile and tear strength to withstand any weather condition and hard usage. Standard color is black, but other colors are available on request.
2 Inner rubber
The liner of a rubber membrane seals the pressurized air inside the fenders.
3 Synthetic tire cord layers for reinforcement
The reinforcement layers, which are made of synthetic tire cord commonly used in tires, are arranged at ideal angles to hold the internal pressure and to distribute the stress evenly providing strong efficient reinforcement.
4 Beading ring
A steel ring is placed at one end (or both ends) of the fender and holds the end of cord layers.
5 Flange
A steel flange is mounted on the fender, to which an air valve or safety valve can be adapted.
6 Safety valve
Fenders of diameter 2500mm and larger shall be equipped with safety valve for releasing excess internal pressure when the fenders are over-compressed accidentally. Fender which are smaller than 2500mm in diameter, can be equipped with a safety valve if required.
7 Metal accessories
All the relevant metal accessories of pneumatic fenders, include shackles, towing rings, swivels, chain net, are made of stainless steel, which are resistant for sea water corrosion.
8 Pneumatic rubber fender introduction
Inflatable rubber fender (by ball) is a marine anti-collision product made of compressed air. Compressed air is mainly used as the buffer medium to absorb the impact energy of the ship, making the ship more flexible and soft when docking, so as to achieve the effect of collision and collision avoidance. Yokohama type ball is a kind of sheath type ball. Usually aircraft tires or engineering tires are used to wrap the ball. Both ends are equipped with shoulder straps, which are widely used for ship-to-ship transfer operations and ship berthing operations. Wait. The size is: D0.5m x L1.0m ~ D3.3m x L6.5m. Inflatable fenders (by ball) are produced in strict accordance with ISO17357-2002 and GB/T 21482-2002 international quality standards, and their products are exported to all over the world.

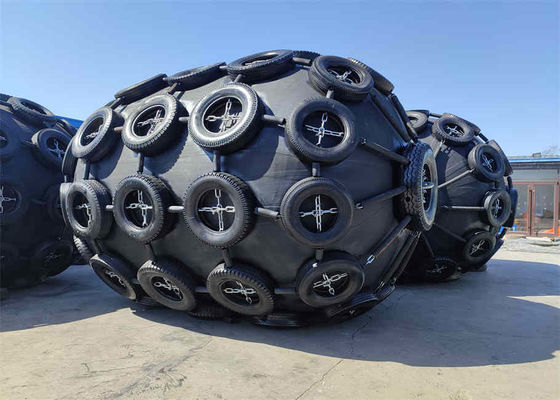

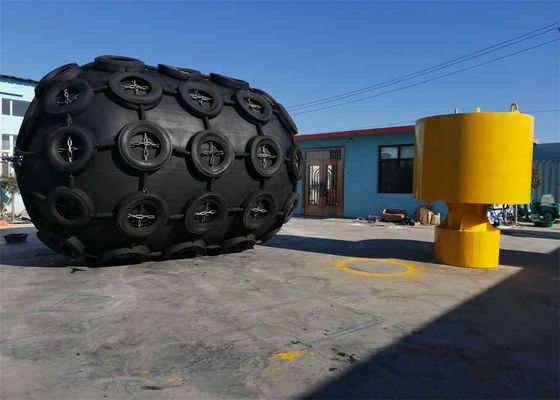

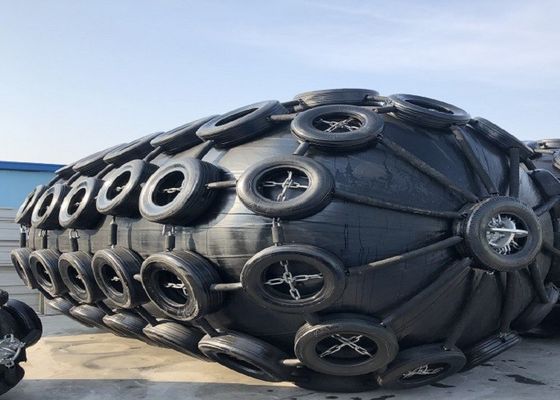

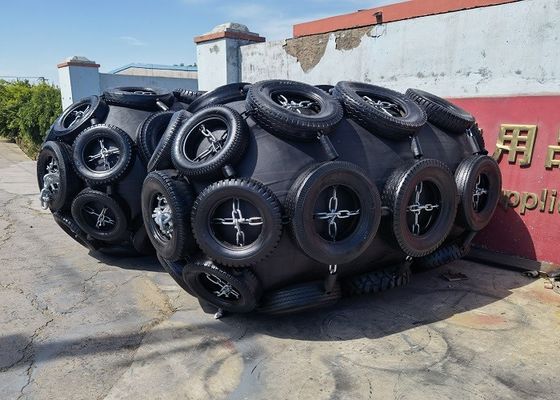

The chain-tire net pneumatic fender (CTN) is a lattice of used tires connected by a network of horizontal and vertical chains, which adds further protection to the fender body. The chains are galvanized for greater corrosion resistance and covered by rubber sleeves to prevent abrasive damage to the outer rubber. The horizontal chains are fastened at each end to a ring shackle. The rubber fenders are supplied with two different inside pressure levels to cover a wide performance range, 50kPa & 80kPa. They are manufactured according to ISO 17357-1:2014.

Standard colors are black and grey (Navy), other colors available upon request.

The rubber fender is widely used for oil tankers, container vessels, yachts, ocean platforms, large wharf and naval ports, etc.

Pneumatic fenders have the following advantages

● Low transportation costs

● Low and easy maintenance

● High strength, high fatigue

● High strength and friction resistance.

● Impact resistance, heat stability, good adhesion.

● High energy absorption with a low reaction force

● Adjusted performance by varying internal pressure

● Easily deflateable and to be stored on deck of vessels
