Payment & Shipping Terms:
|Product Name:||Pneumatic Rubber Fender/Marine Fender/Yokohama Fender||Material:||Natural Rubber|
|Specification:||Dia 0.5m-4.5m, L 0.7m-9m/Customized||Certificate:||CCS / BV / LR / ISO17357/DNV/SGS|
|Shelf Life:||24 Months||Working Pressure:||50kpa/80kpa|
|Application:||Dock,Ship,Ship To Ship||Service Life:||10 Years|

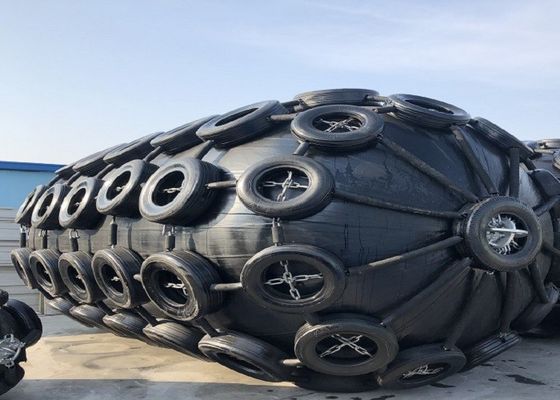

|Production Time:||5-10 Days||Accessories:||Tyre Sheath/Swivel/Shackle/Chain|
STS Projects Inflatable Rubber Fenders,
Yokohama Type Inflatable Rubber Fenders,
Marine STS Pneumatic Rubber Fender

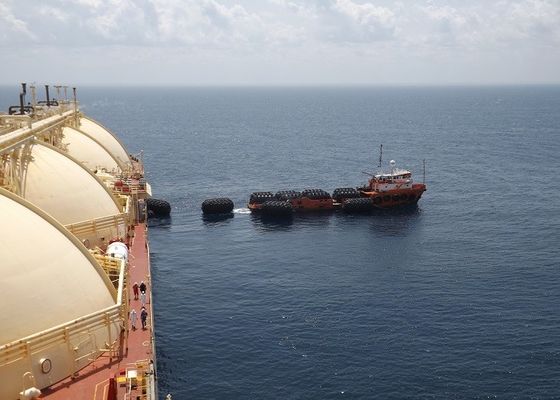

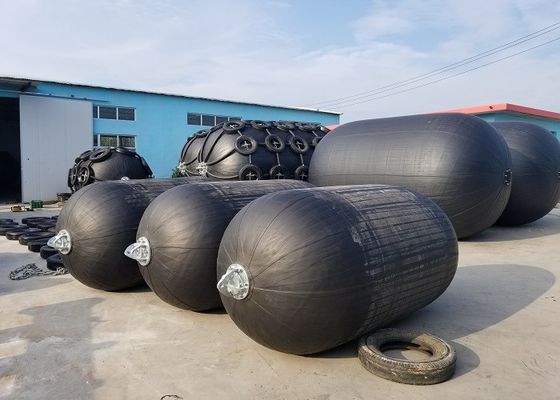

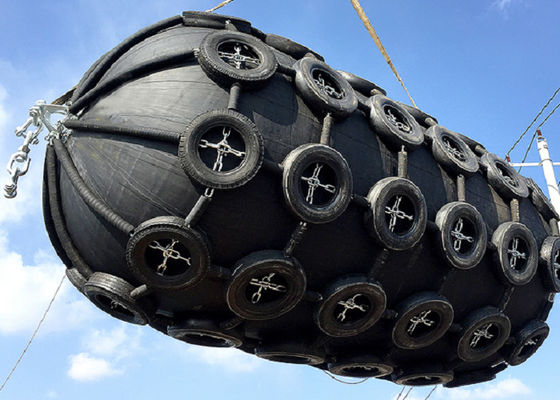

Floating Marine Pneumatic Yokohama Boat Fender Used For Ship To Dock also called pneumatic fender, rubber fender, yokohama fender, made by rubber & multi layer of rubber-dipped tyre fabric, is a leading anti-collision device for marine application in the world today. Floating Marine Pneumatic Yokohama Fender Used For Ship To Dock have become an ideal ship protection medium against collision among ship-to-ship (STS), ship to quay (STQ) and ship-to-berthing (STB), they are widely used for large tankers, vessels, docks, harbor wharfs and ocean platforms.
Henger Inflatable Rubber Fender Advantages
1. Safety and Reliability
Henger Inflatable Rubber Fenders are constructed of several layers of strong tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the design of this fender is based on accepted theory and has been proven by extensive experimentation.
Large-size fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure.
2. No Deterioration or Variation in Performance
Henger Inflatable Rubber Fenders utilize the compressive elasticity of air, therefore
performance deterioration due to fatigue is absent.
3. Advantages at Inclined Berthing
Henger Inflatable Rubber Fenders, energy absorption does not decrease at inclined compression up to 15 degrees.
The following are the product specifications and detailed parameters:
|Pneumatic 50 fender size and performance requirements|
Nominal size diameter x length
Initial internal pressure
|Guaranteed energy absorption (GEA)||Reaction force at GEA deflection(R)||Hull pressure (Internal pressure) at GEA deflection (P)|
|Minimum value at deflection 60±5% kJ||Tolerance±10 % kN||
|500 x 1000||50||6||64||132|
|600 x 1000||50||8||74||126|
|700 x 1500||50||17||137||135|
|1000 x 1500||50||32||182||122|
|1000 x 2000||50||45||257||132|
|1350 x 2500||50||102||427||130|
|1500 x 3000||50||153||579||132|
|1700 x 3000||50||191||639||128|
|2000 x 3500||50||308||875||128|
|2500 x 4000||50||663||1381||137|
|3300 x 4500||50||1175||1884||130|
|3300 x 6500||50||1814||3015||146|
|3300 x 10600||50||3067||5257||158|
|4500 x 9000||50||4752||5747||146|
|4500 x 12000||50||6473||7984||154
|Pneumatic 80 fender size and performance requirements|
Nominal size diameter x length
Initial internal pressure
|Guaranteed energy absorption (GEA)||Reaction force at GEA deflection (R)||Hull pressure (Internal pressure) at GEA deflection (P)|
|Minimum value at deflection 60±5% kJ||Tolerance±10% kN||
|500 x 1000||80||8||85||174|
|600 x 1000||80||11||98||166|
|700 x 1500||80||24||180||177|
|1000 x 1500||80||45||239||160|
|1200 x 2000||80||88||390||166|
|1350 x 2500||80||142||561||170|
|1500 x 3000||80||214||761||174|
|1700 x 3000||80||267||840||168|
|2000 x 3500||80||430||1150||168|
|2500 x 4000||80||925||1815||180|
|2500 x 5500||80||1317||2653||195|
|3300 x 4500||80||1640||2476||171|
|3300 x 6500||80||2532||3961||191|
|3300 x 10600||80||4281||6907||208|
|4500 x 9000||80||6633||7551||192|
|4500 x 12000||80||9037||10490||202
Qingdao Henger Shipping Supplies Co., Ltd
Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky, Qingdao Henger Shipping Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services, specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.
With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with friends all over the world.
The "Yokohama Type Inflatable Rubber Fender" was developed in 1958. Progress in the development of such floating inflatable rubber fenders is closely related to the progress and development of ship technology, and has to continuously cope with progressively larger oil tankers such as VLCC's, ULCC's, large gas carriers, bulk carriers and floating structures.
Floating Inflatable Fenders are used world wide for ship-to-ship (STS) transfer operations, terminals, and for all kinds of ships. Since its creation until today, more than millions of fenders have been supplied worldwide both for ship-to-ship and ship-to-dock (STD) operations serving our valuable customers. These fenders play a critical role in the safe operation of ship berthing and mooring.
Service and transportation:
The product warranty period of Henger is 24 months, and the average supplier can not reach such a long time, which is also the trust we and customers have in our factory products.
After-sales service we are online 24 hours a day, as long as you have questions we will always be there, there will be professional staff to answer your questions and provide you with technical support.
Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
