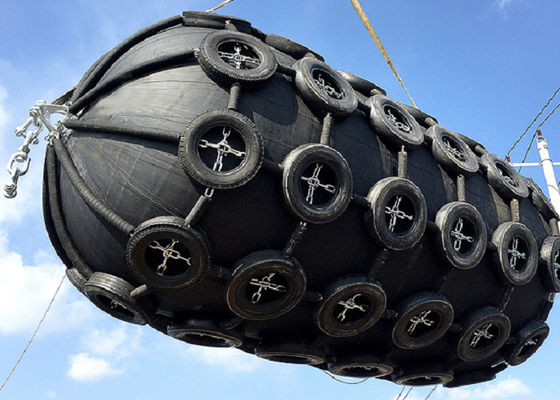

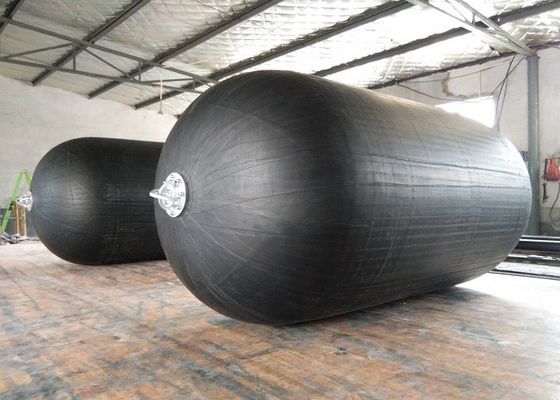

Customizable Yokohama Type Inflatable Rubber Fenders To Protect The Hull

Customizable Yokohama Type Inflatable Rubber Fenders To Protect The Hull
Customizable Yokohama Type Inflatable Rubber Fenders To Protect The Hull
video play

Large Image :  Customizable Yokohama Type Inflatable Rubber Fenders To Protect The Hull

Product Details:
Place of Origin: China
Brand Name: Henger
Certification: BV,CBS
Model Number: HE0015
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: Normal packing,Nude Packing/As Requirement
Delivery Time: 7-15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 pcs/month
Detailed Product Description
Material: Natural Rubber Size: Customized Size
Color: Customized Color Warranty Period: 24 Months
Packing: Nude/In Cases
High Light:

Hull Inflatable Rubber Fenders

,

OEM Inflatable Rubber Fenders

,

Customizable Yokohama Fenders

Hot Selling Customizable Yokohama Type Inflatable Rubber Fenders To Protect The Hull

Customizable Yokohama Type Inflatable Rubber Fenders To Protect The Hull 0

1. Pneumatic rubber fender introduction



1 Outer rubber

The outer rubber layers that covers the outside of fender protects the cord layers and the inner rubber from abrasion and other external forces. This compound has sufficient tensile and tear strength to withstand any weather condition and hard usage. Standard color is black, but other colors are available on request.



2 Inner rubber

The liner of a rubber membrane seals the pressurized air inside the fenders.



3 Synthetic tire cord layers for reinforcement

The reinforcement layers, which are made of synthetic tire cord commonly used in tires, are arranged at ideal angles to hold the internal pressure and to distribute the stress evenly providing strong efficient reinforcement.



4 Beading ring

A steel ring is placed at one end (or both ends) of the fender and holds the end of cord layers.



5 Flange

A steel flange is mounted on the fender, to which an air valve or safety valve can be adapted.



6 Safety valve

Fenders of diameter 2500mm and larger shall be equipped with safety valve for releasing excess internal pressure when the fenders are over-compressed accidentally. Fender which are smaller than 2500mm in diameter, can be equipped with a safety valve if required.



7 Metal accessories

All the relevant metal accessories of pneumatic fenders, include shackles, towing rings, swivels, chain net, are made of stainless steel, which are resistant for sea water corrosion.


Customizable Yokohama Type Inflatable Rubber Fenders To Protect The Hull 1

2. Pneumatic rubber fender Parameter



Pneumatic 80 fender size and performance requirements

Nominal size diameter x length

mm

Initial internal pressure

kPa

Guaranteed energy absorption (GEA) Reaction force at GEA deflection (R) Hull pressure (Internal pressure) at GEA deflection (P)
Minimum value at deflection 60±5% kJ Tolerance±10% kN

Reference value

kPa

500 x 1000 80 8 85 174
600 x 1000 80 11 98 166
700 x 1500 80 24 180 177
1000 x 1500 80 45 239 160
1000 x2000 80 63 338 174
1200 x 2000 80 88 390 166
1350 x 2500 80 142 561 170
1500 x 3000 80 214 761 174
1700 x 3000 80 267 840 168
2000 x 3500 80 430 1150 168
2500 x 4000 80 925 1815 180
2500 x 5500 80 1317 2653 195
3300 x 4500 80 1640 2476 171
3300 x 6500 80 2532 3961 191
3300 x 10600 80 4281 6907 208
4500 x 9000 80 6633 7551 192
4500 x 12000 80 9037 10490 202

Customizable Yokohama Type Inflatable Rubber Fenders To Protect The Hull 2



3. Pneumatic Rubber Fender Features

1. Meet the requirements of ISO17357:2002
2. Strong and durable, made of high-quality natural rubber.
3. The transportation cost is low, and it can be transported by deflation.
4. Easy to use, it can be inflated for use when in use, and can be deflated for storage when not in use.

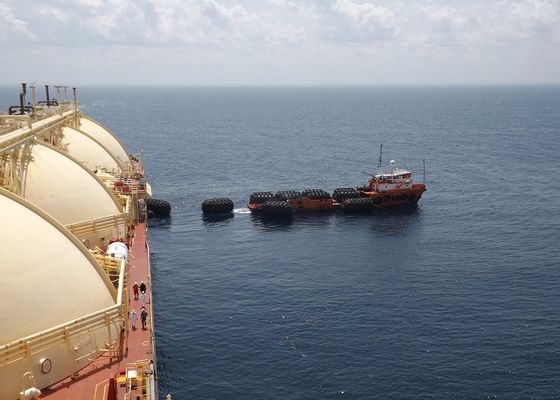

5. There are many ways to use it. It can be anchored at the ship dealer or at the dock for STS, STD, submarine collision prevention, etc.



4. Pneumatic Rubber Fender Transportation

Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.

Customizable Yokohama Type Inflatable Rubber Fenders To Protect The Hull 3



5. After-sale service

Quality is the cornerstone, service is the soul.

We continue to provide our customers with stable & reliable quality pneumatic rubber fenders with a comprehensive system of technical support, meticulous and thoughtful after-sales service to win customers trust and satisfaction.



Qingdao Henger Shipping Supplies Co., Ltd provides following services to all customers.

1. 24 hours instant online technical consultation and support.

2. 24 months warranty period(without any artificial damage) and free repairing service within warranty period.

3. lifetime reparing service.

Customizable Yokohama Type Inflatable Rubber Fenders To Protect The Hull 4

6. FAQ

Q: What’s the material of your pneumatic fender products ?
A: the main raw materials are natural rubber, synthetic-tyre-cord fabric and customized hardwares, etc.


Q: Are you factory or trading company ?
A: We are manufacturing factory, located in Jimo district,Qingdao city, 1 hour drive to Qingdao port and 40 minutes drive to Qingdao airport, which is convenient in transportation logistics.


Q: Is OEM service available ?
A: yes
