Craftsmanship Pneumatic Rubber Fender,
Customized Color Pneumatic Rubber Fender,
Natural Rubber Marine Fender

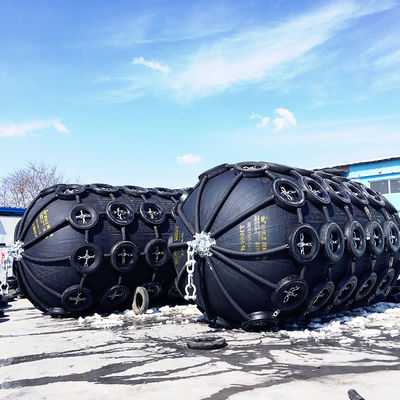

1. Pneumatic rubber fender introduction
1 Outer rubber
The outer rubber layers that covers the outside of fender protects the cord layers and the inner rubber from abrasion and other external forces. This compound has sufficient tensile and tear strength to withstand any weather condition and hard usage. Standard color is black, but other colors are available on request.
2 Inner rubber
The liner of a rubber membrane seals the pressurized air inside the fenders.
3 Synthetic tire cord layers for reinforcement
The reinforcement layers, which are made of synthetic tire cord commonly used in tires, are arranged at ideal angles to hold the internal pressure and to distribute the stress evenly providing strong efficient reinforcement.
4 Beading ring
A steel ring is placed at one end (or both ends) of the fender and holds the end of cord layers.
A steel flange is mounted on the fender, to which an air valve or safety valve can be adapted.
6 Safety valve
Fenders of diameter 2500mm and larger shall be equipped with safety valve for releasing excess internal pressure when the fenders are over-compressed accidentally. Fender which are smaller than 2500mm in diameter, can be equipped with a safety valve if required.
7 Metal accessories
All the relevant metal accessories of pneumatic fenders, include shackles, towing rings, swivels, chain net, are made of stainless steel, which are resistant for sea water corrosion.
2. Pneumatic rubber fender Parameter
|Pneumatic 80 fender size and performance requirements|
Nominal size diameter x length
Initial internal pressure
|Guaranteed energy absorption (GEA)||Reaction force at GEA deflection (R)||Hull pressure (Internal pressure) at GEA deflection (P)|
|Minimum value at deflection 60±5% kJ||Tolerance±10% kN||
|500 x 1000||80||8||85||174|
|600 x 1000||80||11||98||166|
|700 x 1500||80||24||180||177|
|1000 x 1500||80||45||239||160|
|1200 x 2000||80||88||390||166|
|1350 x 2500||80||142||561||170|
|1500 x 3000||80||214||761||174|
|1700 x 3000||80||267||840||168|
|2000 x 3500||80||430||1150||168|
|2500 x 4000||80||925||1815||180|
|2500 x 5500||80||1317||2653||195|
|3300 x 4500||80||1640||2476||171|
|3300 x 6500||80||2532||3961||191|
|3300 x 10600||80||4281||6907||208|
|4500 x 9000||80||6633||7551||192|
|4500 x 12000||80||9037||10490||202|
3. Pneumatic Rubber Fender Features

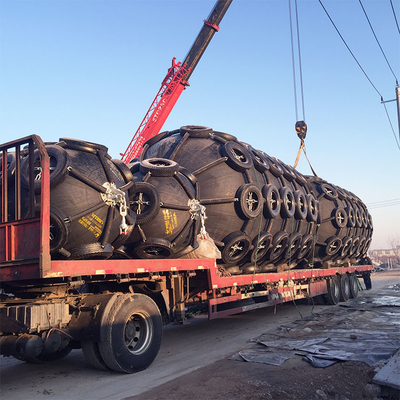

4. Pneumatic Rubber Fender Transportation
Transportation We can take the deflation pallet transportation and the entire fender transportation without deflation according to the requirements of customers. We always put the customer's requirements first.
5. After-sale service
Quality is the cornerstone, service is the soul.
We continue to provide our customers with stable & reliable quality pneumatic rubber fenders with a comprehensive system of technical support, meticulous and thoughtful after-sales service to win customers trust and satisfaction.
Qingdao Henger Shipping Supplies Co., Ltd provides following services to all customers.
1. 24 hours instant online technical consultation and support.
2. 24 months warranty period(without any artificial damage) and free repairing service within warranty period.
3. lifetime reparing service.
Q: What’s the material of your pneumatic fender products ?
A: the main raw materials are natural rubber, synthetic-tyre-cord fabric and customized hardwares, etc.
Q: Are you factory or trading company ?
A: We are manufacturing factory, located in Jimo district,Qingdao city, 1 hour drive to Qingdao port and 40 minutes drive to Qingdao airport, which is convenient in transportation logistics.
Q: Is OEM service available ?
