Mrine Rubber Airbags Can Assist Ships To Go Up And Down The Water And Carry Heavy Objects Marine airbags are a new type of product independently developed by our country. At present, they have been widely used in the fields of ship topping and launching; ship grounding and buoyancy; heavy object ...

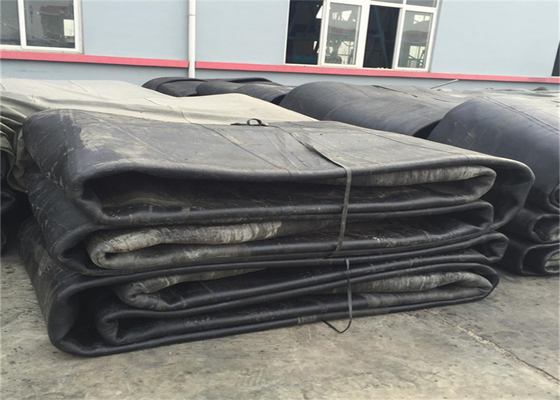

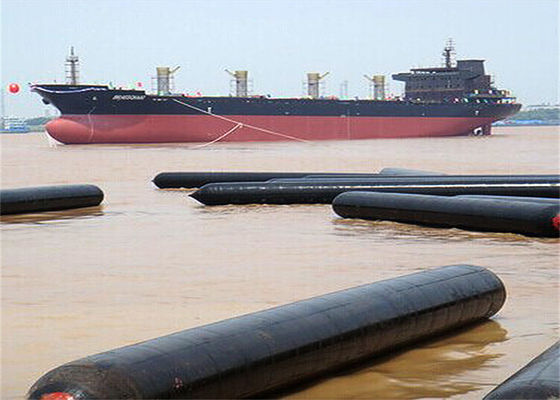

Marine airbags are a new type of product independently developed by our country. At present, they have been widely used in the fields of ship topping and launching; ship grounding and buoyancy; heavy object handling and shifting. After more than 20 years of development and practice, marine airbags have been accepted and recognized by the majority of shipowners due to the advantages of less site restrictions, no need for large mechanical equipment, safety and efficiency,Marine rubber airbags can be deflated and folded for transportation, occupying a small space and low freight costs. flexible operation, and less capital investment during use.
Advantage:
1. Big carrying capacity
2. High capacity against compression and twisting
3. New design of anti-bursting construction at the end
4. Durable aging resistane and anti-wear characteristic
5. Higher flexibility and damping capacity
product specification

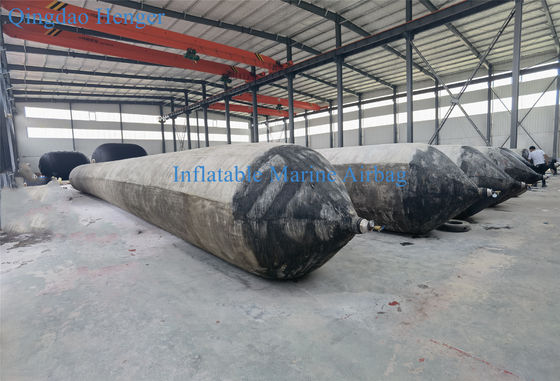

The composition of the marine airbag is composed of the airbag body, the airbag head and the iron parts at the end.
1.End iron parts: (divided into A inflatable end: installed on the top of the bag head, used to inflate or deflate the air bag;
B sealing end pull ring: used in the process of air bag handling.
2.capsule body: the cylindrical part of the airbag, which is the working part of the airbag. According to the size and direction of the principal stress of the airbag wall when the airbag rolls, our company designs the best overall winding cord layout to achieve uniform stress on each layer of cords and maximize performance.
3.capsule head: the end of the airbag, divided into hemispherical and conical.
Product detailed size
1. The size of diameter D is divided into 0.8m, 1.0m, 1.2m, 1.5m, 1.8m, 2.0m
2. The effective length L1 is between 6 meters and 23 meters
3. The overall length L is between 7 meters and 24.5 meters
4. The number of cord fabric layers is divided into: three curtains and four glues SS-3, four curtains and five glues SS-4, five curtains and six glues SS-5, six curtains and seven glues SS-6.
5. Special sizes can be processed according to customer requirements.
Specification of marine landing airbag
| Some normal sizes of our marine landing airbag , other sizes are also available | |||
| Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 |
0.07~0.13 |
